PLE7L系列Q170平台工业一体机/工业平板电脑电阻触摸屏

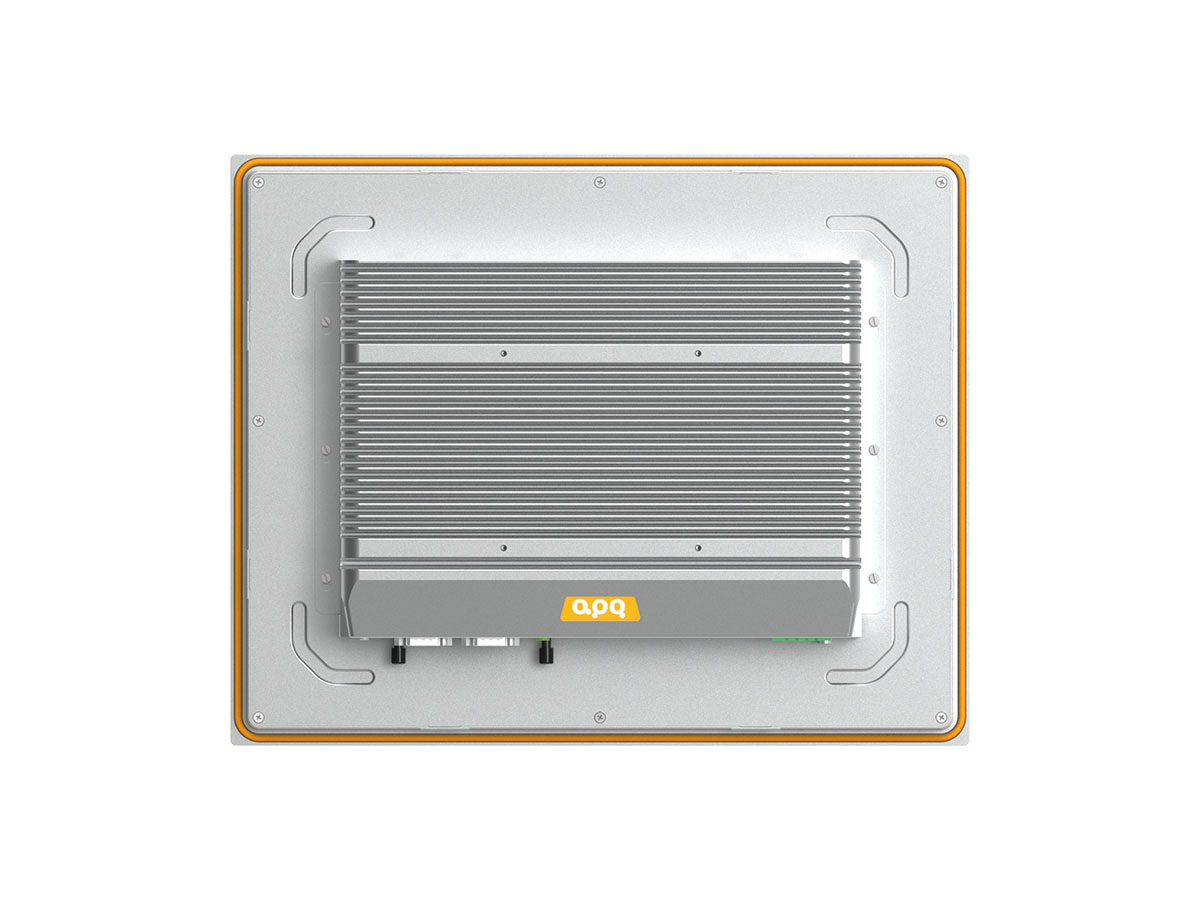

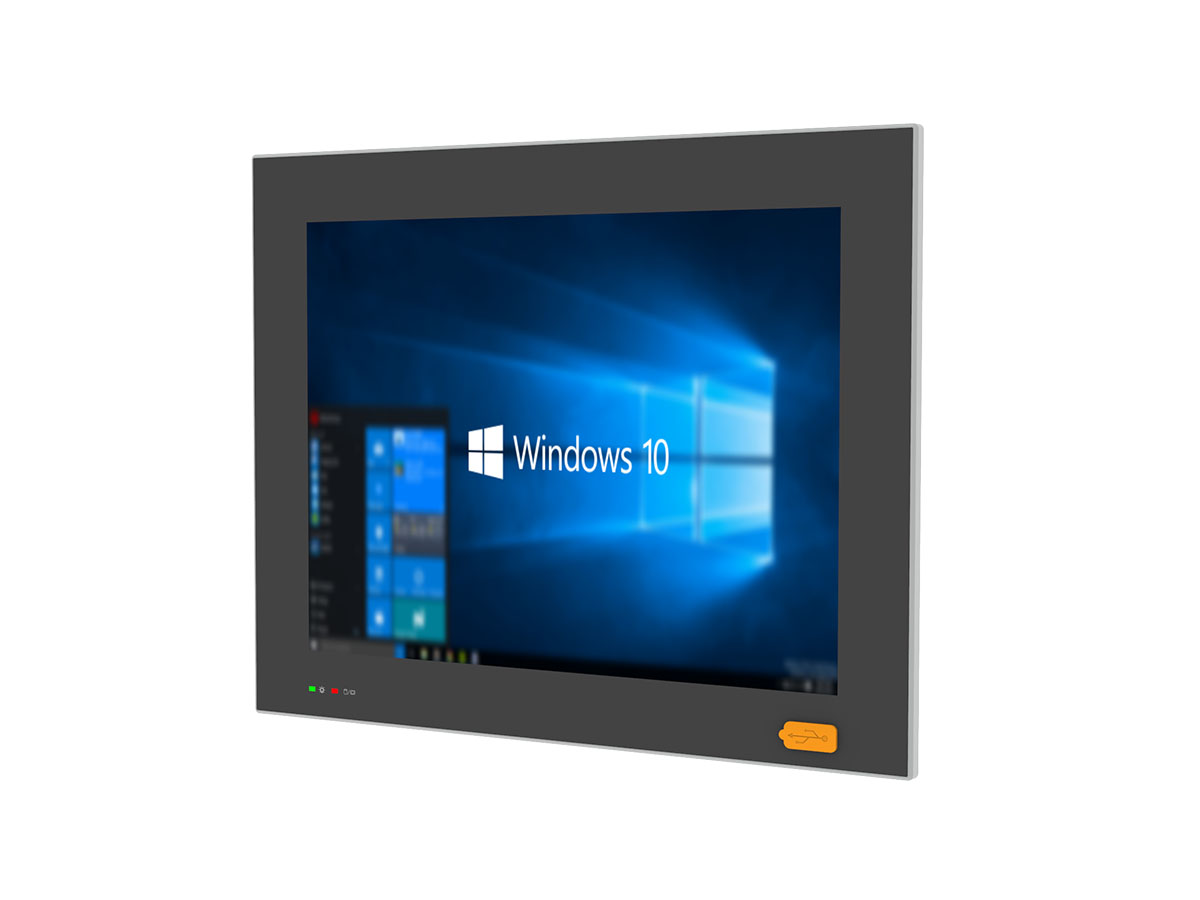

Note: The product image shown above is the PL150RQ-E7L-Q170 model

PLE7L系列Q170平台工业一体机/工业平板电脑电阻触摸屏

特点:

全屏电阻触摸屏设计
模块化设计12.1~21.5″可选,支持方屏/宽屏
前面板满足IP65要求
前面板集成USB Type-A和信号指示灯
支持Intel® 6th to 9th Gen Core/Pentium/Celeron Desktop CPU, TDP 35W
搭配Intel® Q170芯片组
2个Intel千兆网络接口和4个DB9串口
M.2和2.5寸双硬盘位存储支持
4路显示输出 VGA,DVI-D,DP++和内部LVDS,最高支持4K@60Hz分辨率
9~36V直流供电（可选12V）
嵌入式/VESA安装

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

阿普奇全屏电阻触摸屏工业一体机PLxxxRQ-E7L系列Q170平台，是一款专为工业应用而设计的工业一体机。其核心特点在于采用全屏电阻触摸屏技术，为用户提供稳定、精准的触控体验，满足工业环境下的操作需求。该一体机采用模块化设计，支持12.1~21.5″的屏幕尺寸，适应不同行业标准和用户需求。前面板满足IP65要求，具备出色的防尘防水性能，能够应对各种恶劣的工业环境。Intel® 6~9th Gen Core / Pentium/ Celeron Desktop CPU，搭配Intel® Q170芯片组，保证高效性能的同时降低能耗。集成2个Intel千兆网络接口和4个DB9串口，提供高速稳定的网络连接和数据传输能力。支持M.2和2.5寸双硬盘位存储，满足大量数据存储需求。4路显示输出支持VGA、DVI-D、DP++和内部LVDS，最高支持4K@60Hz分辨率，满足多样化的显示需求。

阿普奇全屏电阻触摸屏工业一体机PLxxxRQ-E7L系列Q170平台还采用9~36V直流供电（可选12V），支持嵌入式和VESA安装方式，方便集成到各种工业环境中，是工业自动化和边缘计算领域的理想选择。

产品介绍

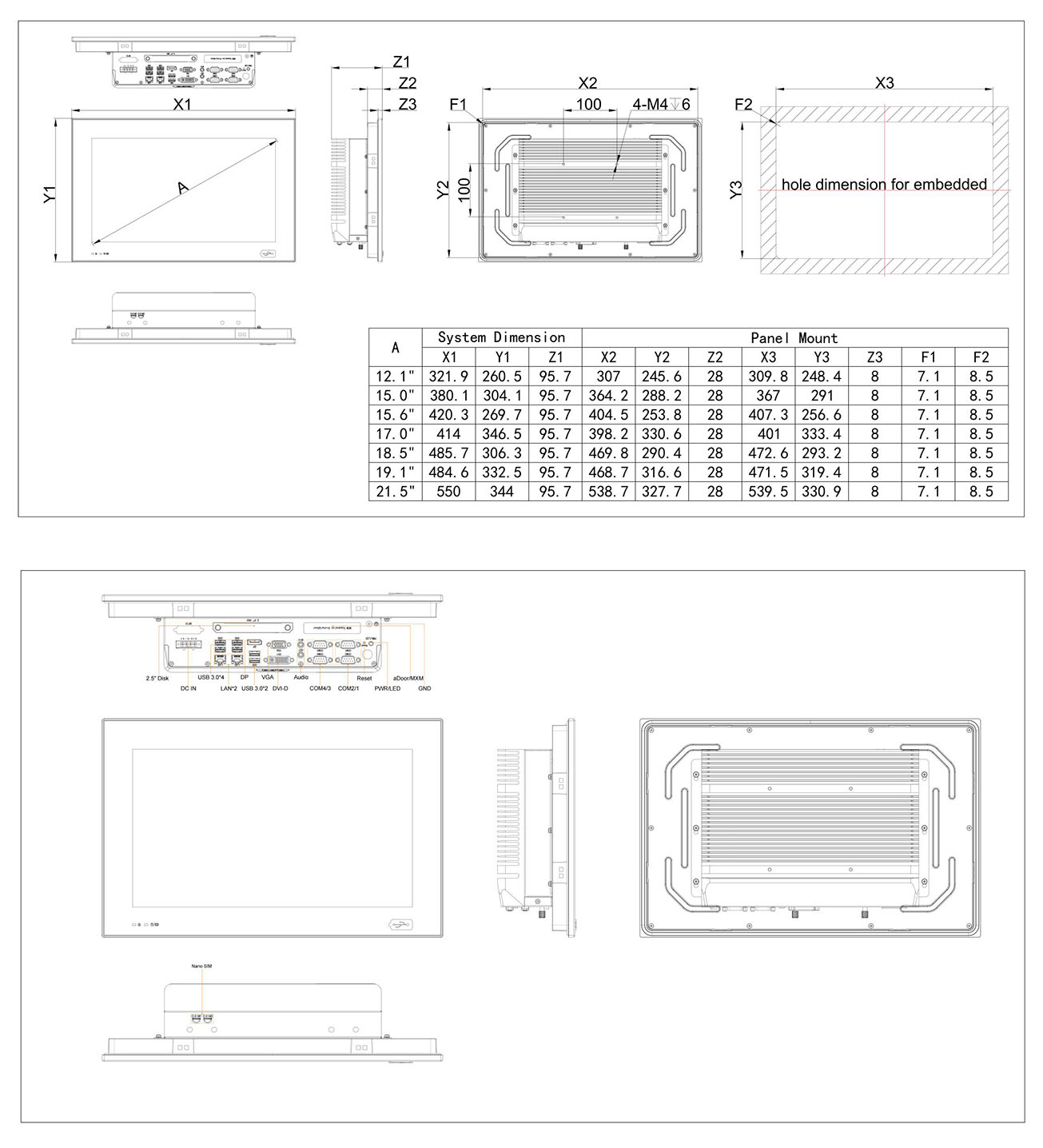

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		PL121RQ-E7L	PL150RQ-E7L	PL156RQ-E7L	PL170RQ-E7L	PL185RQ-E7L	PL191RQ-E7L	PL215RQ-E7L
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.1"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-wire resistive touch
	Controller	USB signal
	Input	finger/touch pen
	Light Transmission	≥78%
	Hardness	≥3H
Processor System	CPU	Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	35W
	Socket	LGA1151
	Chipset	Q170
	BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz
Memory	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel® HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1
Storage	M.2	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	MXM/aDoor	1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)
	M.2	1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052)

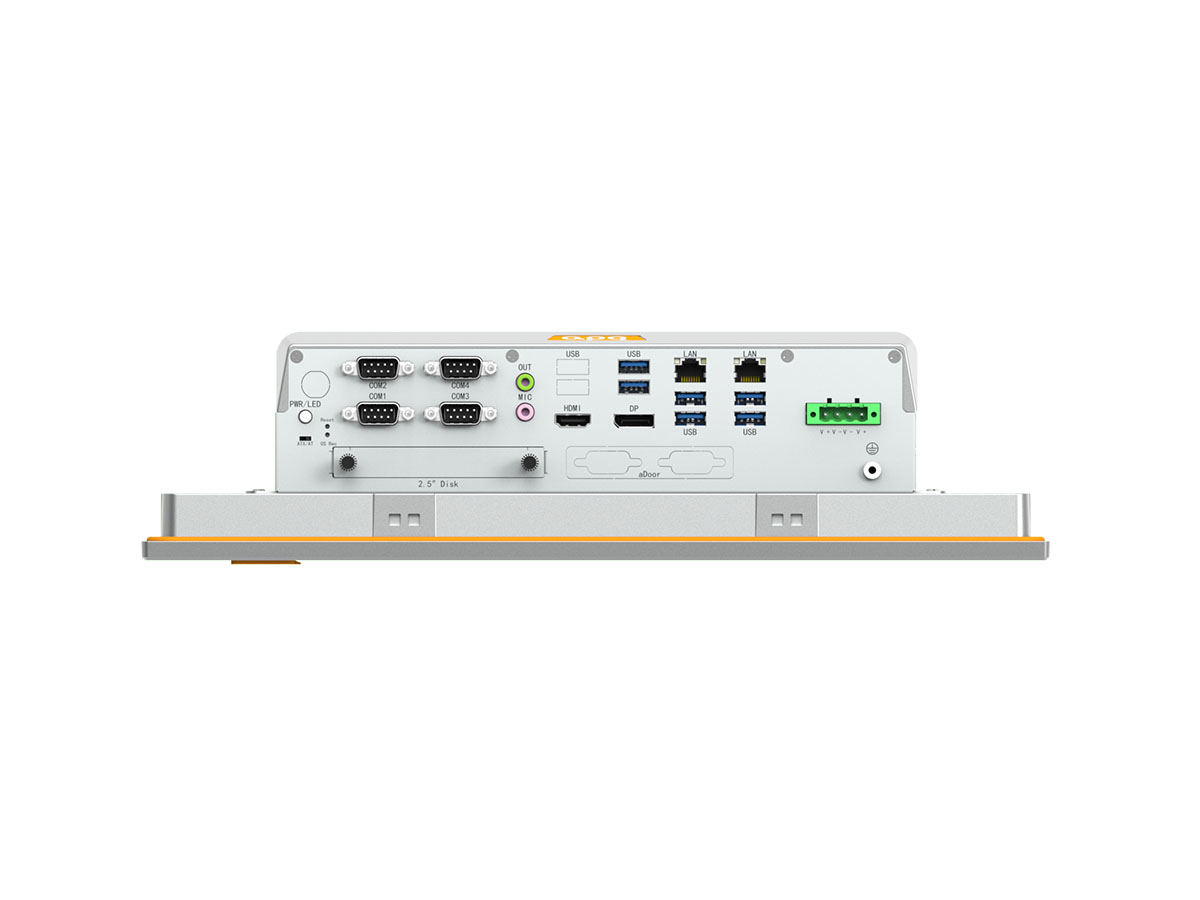

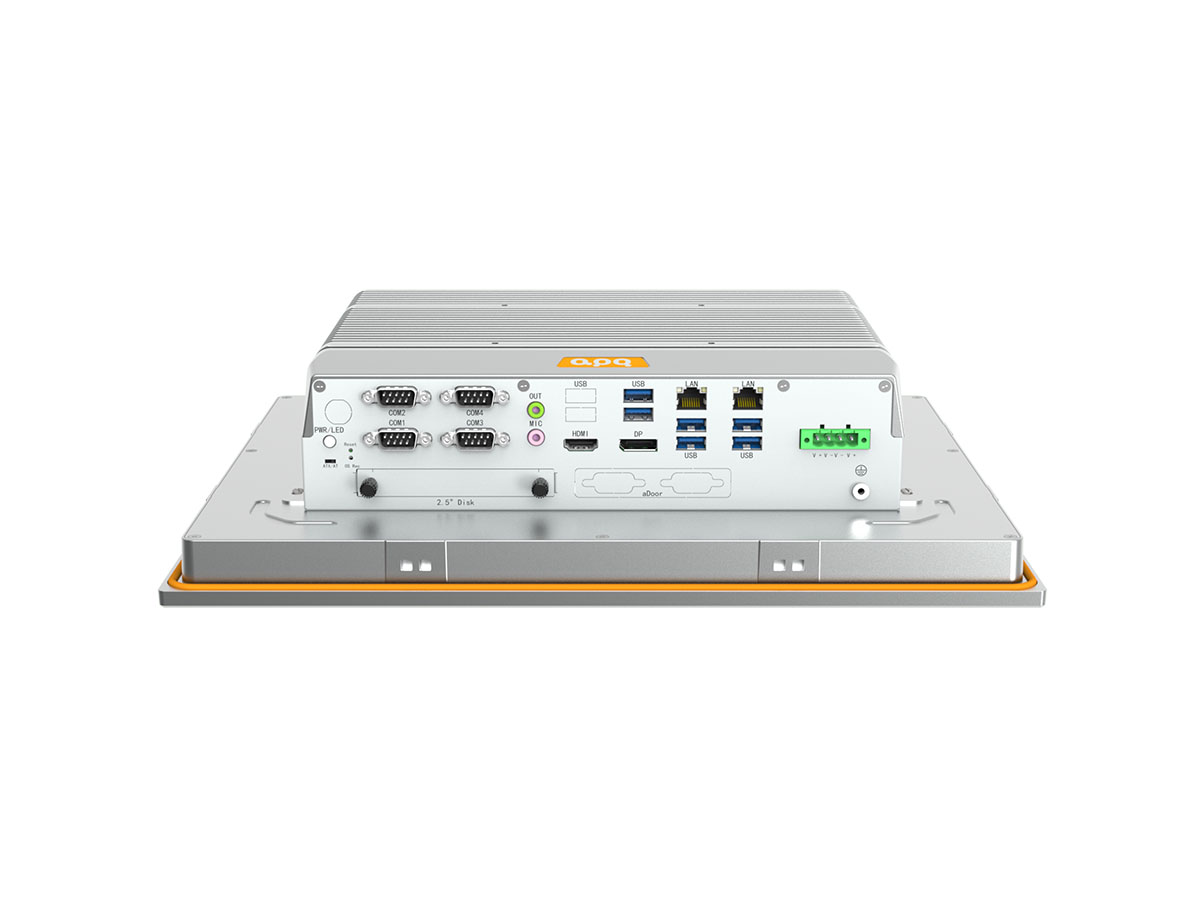

Front I/O	Ethernet	2 * RJ45
	USB	6 * USB3.0 (Type-A, 5Gbps)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 VGA (DB15/F): max resolution up to 19201200 @ 60Hz 1 DP: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M)
	Button	1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O	Antenna	4 * Antenna hole
Rear I/O	SIM	2 * Nano SIM card slots
Internal I/O	USB	2 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
	TFront Panel	1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
	Front Panel	1 * Front Panel (PWR + RST + LED, wafer)
	Speaker	1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	2 * SATA 7P Connector
	SATA Power	2 * SATA Power (SATA_PWR1/2, wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (wafer)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9 ~ 36VDC, P≤240W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	6/7th Core™: Windows 7/10/11 8/9th Core™: Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Mounting	VESA, embedded
	Dimensions (L * W * H, Unit: mm)	321.9260.595.7	380.1304.195.7	420.3269.795.7	414346.595.7	485.7306.395.7	484.6332.595.7	55034495.7
	Weight	Net: 6.6 kg Total: 8.1 kg	Net: 8.0 kg Total: 9.5 kg	Net: 7.9 kg Total: 9.6 kg	Net: 8.8 kg Total: 10.3 kg	Net: 8.7 kg Total: 10.2 kg	Net: 10.0 kg Total: 11.5 kg	Net: 9.6 kg Total: 11.1 kg
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃
	Storage Temperature	-20~60℃	-20~70℃	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃
	Relative Humidity	5 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
