PLE7S系列H81平台工业一体机/工业平板电脑电容触摸屏

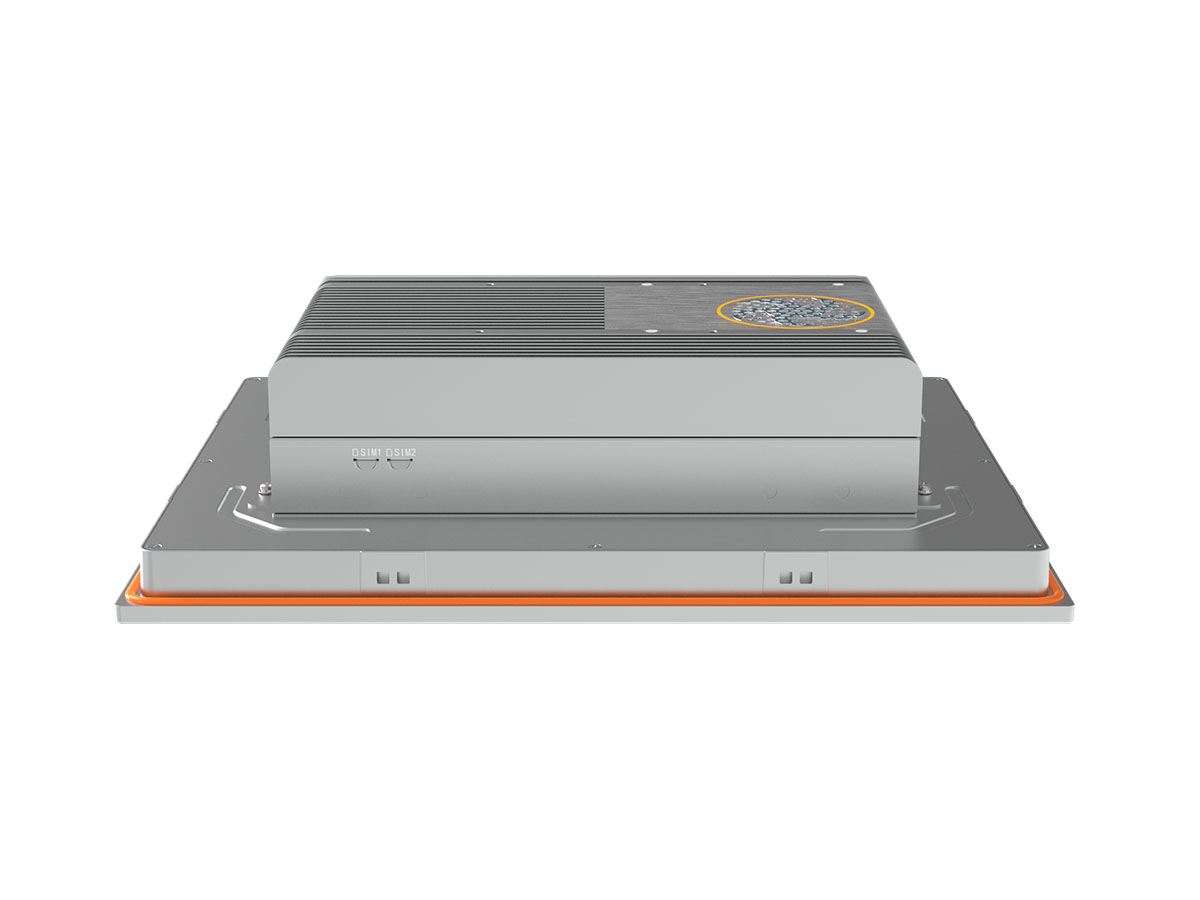

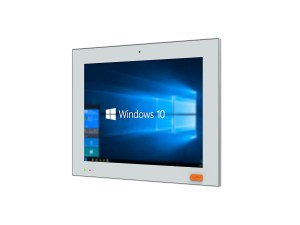

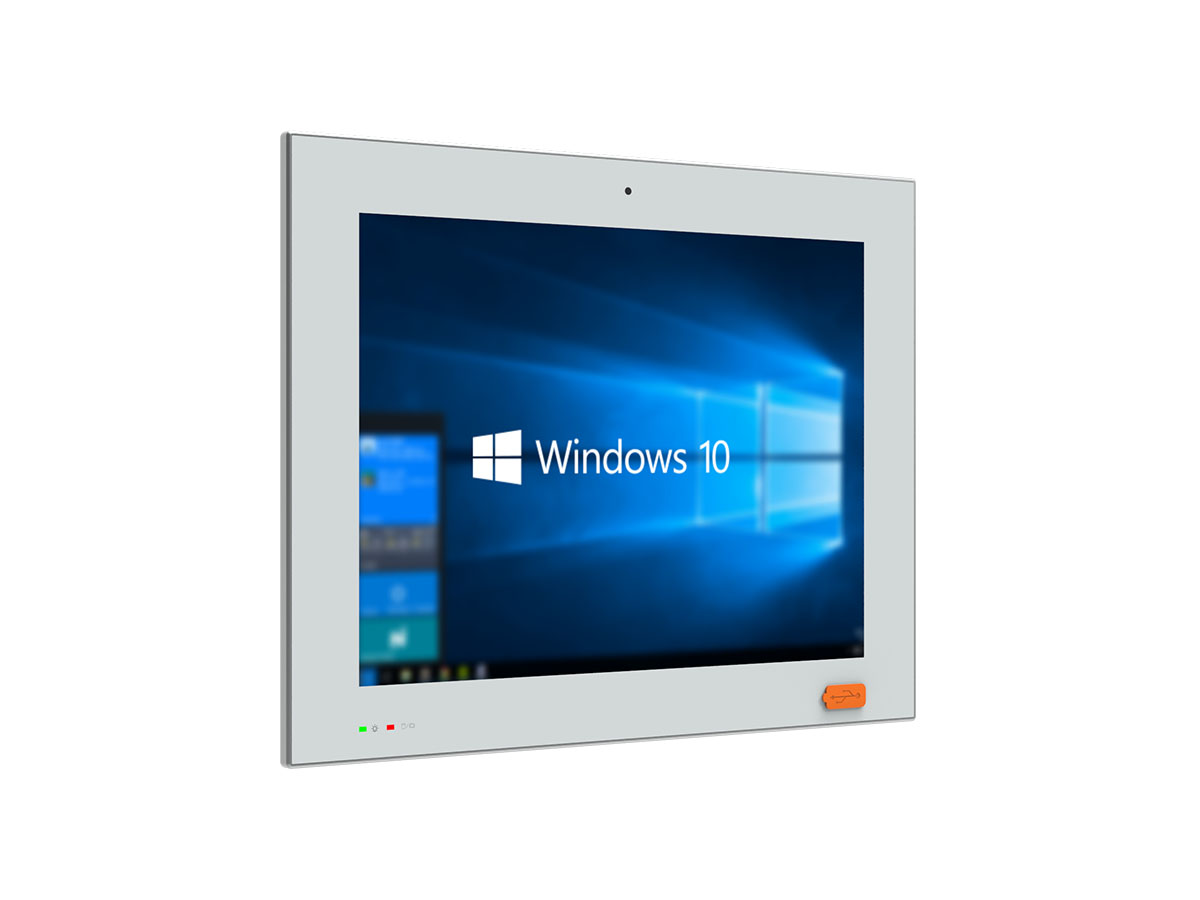

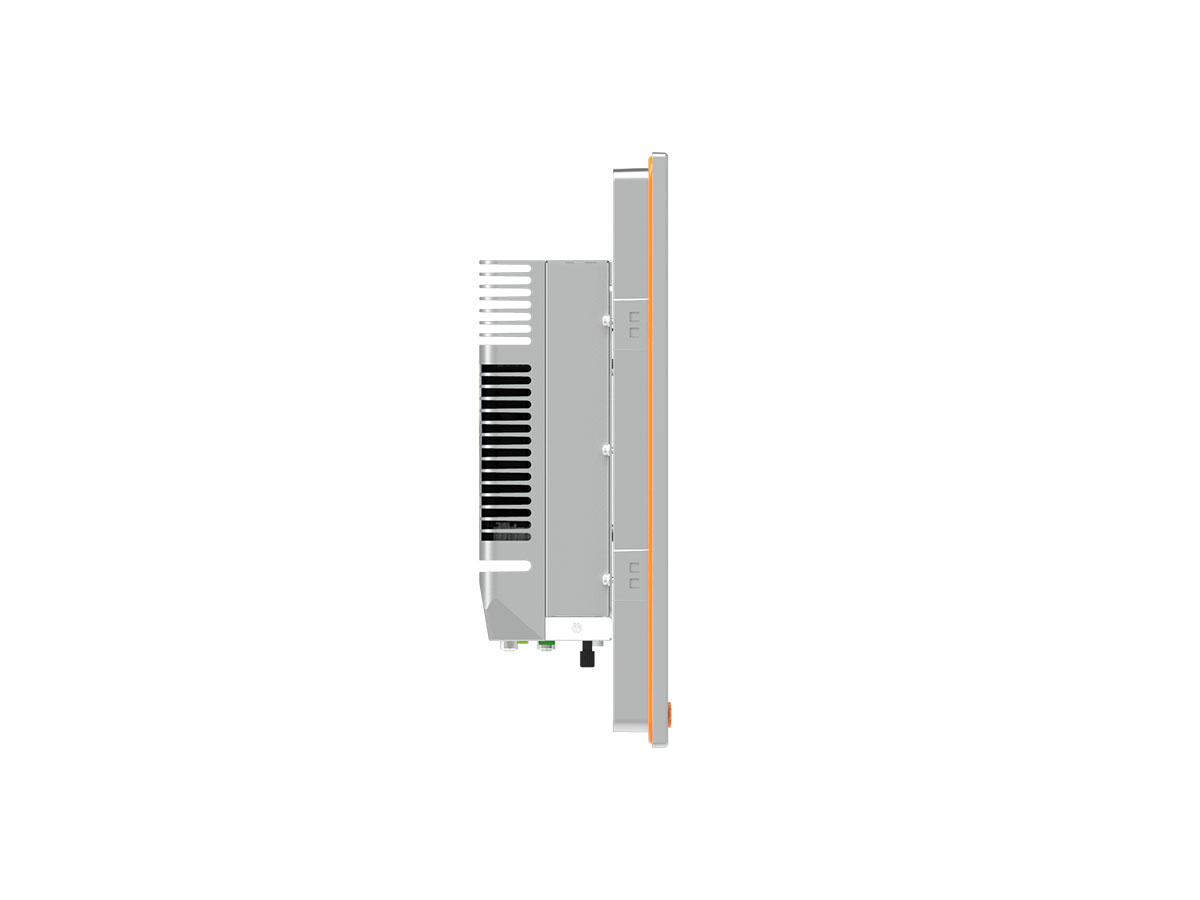

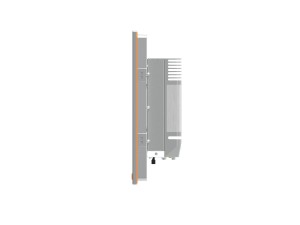

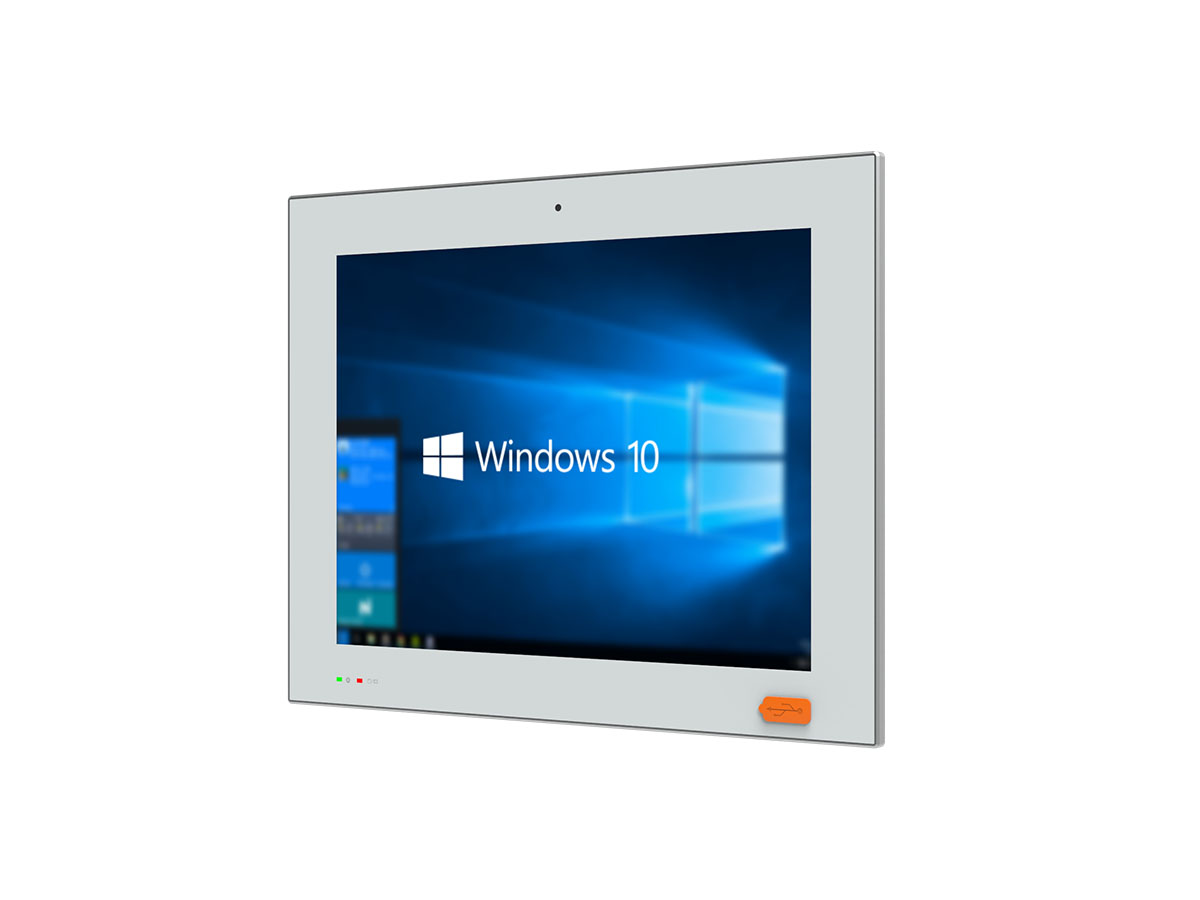

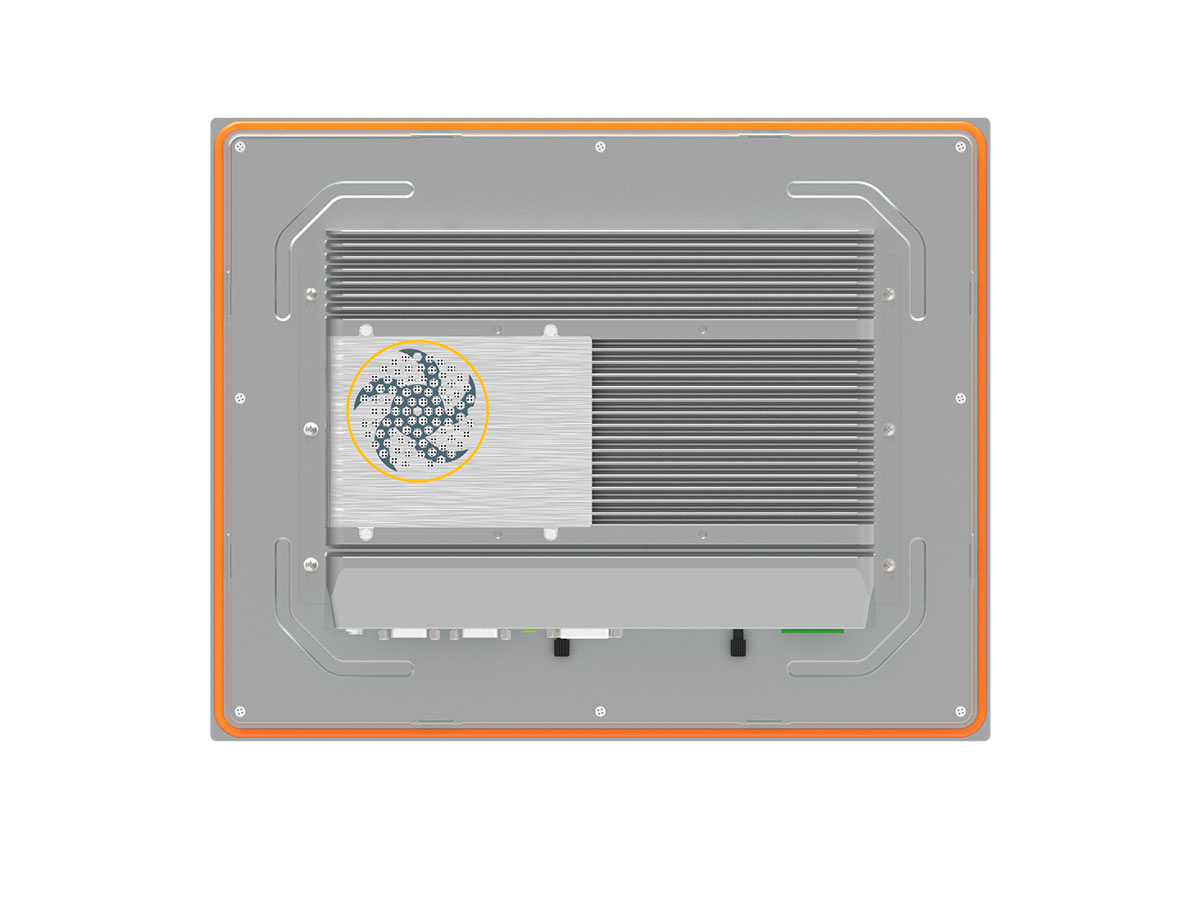

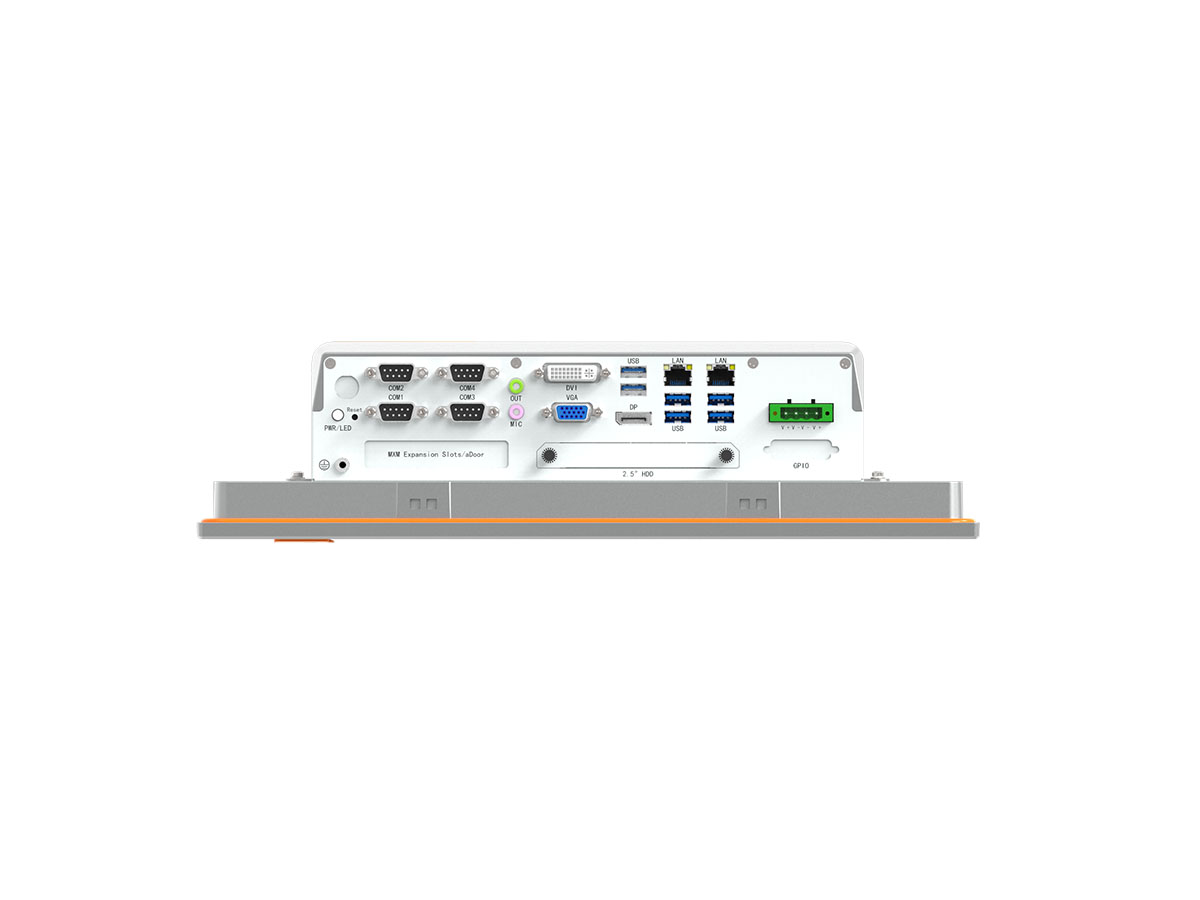

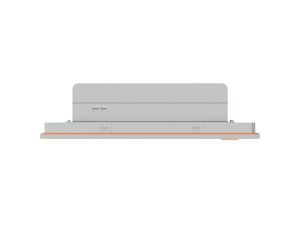

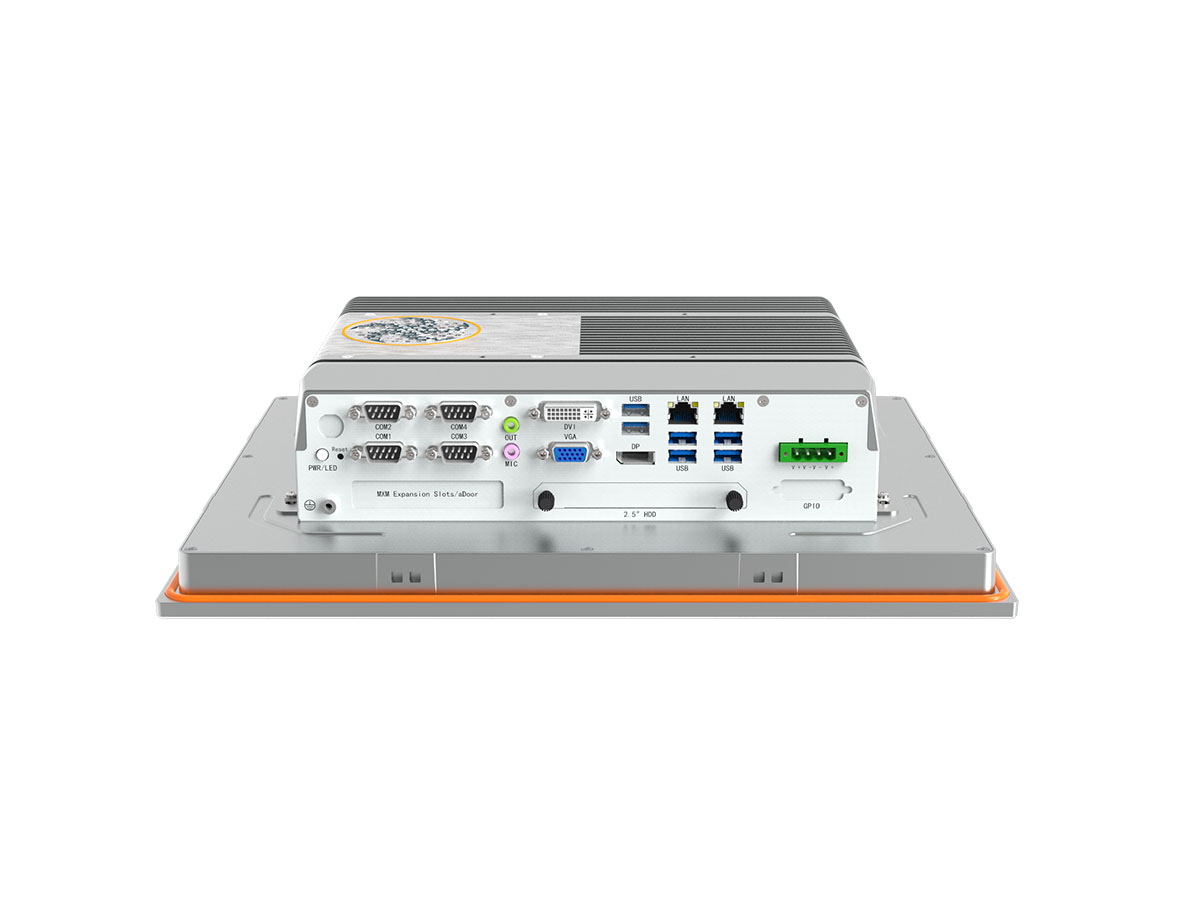

Note: The product image shown above is the PL150CQ-E7S-H81 model

PLE7S系列H81平台工业一体机/工业平板电脑电容触摸屏

特点:

全屏电容触摸屏设计
模块化设计12.1~21.5″可选,支持方屏/宽屏
前面板满足IP65要求
前面板集成USB Type-A和信号指示灯
支持Intel® 4th/5th Gen Core/Pentium/Celeron Desktop CPU, TDP 65W,
搭配Intel® H81芯片组
2个Intel千兆网络接口和4个DB9串口
M.2和2.5寸双硬盘位存储支持
4路显示输出 VGA,DVI-D,DP++和内部LVDS,最高支持4K@60Hz分辨率
9~36V直流供电（可选12V）
嵌入式/VESA安装

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

阿普奇全屏电容触摸屏工业一体机PLxxxCQ-E7S系列H81平台是一款功能强大的工业级计算机，采用全屏电容触摸屏设计，具有模块化设计12.1~21.5英寸可选，支持方形屏幕/宽屏设计，确保满足不同用户的需求。前面板符合IP65标准，具备良好的防水防尘性能，适用于各种工业环境下的使用。前面板集成USB Type-A和信号指示灯，方便用户操作和监控设备状态。支持Intel® 4/5th Gen Core/Pentium/Celeron台式CPU，TDP 65W，搭载Intel® H81芯片组，性能稳定可靠。同时，2个英特尔千兆网络接口和4个DB9串口满足了用户对于网络连接和数据传输的需求。M.2和2.5英寸双硬盘存储支持，满足用户对于大容量存储的需求。此外，该产品具有4个显示输出通道VGA、DVI-D、DP++和内部LVDS，支持高达4K@60Hz的分辨率，可满足用户对于高清显示的需求。9~36V DC电源供应（12V可选），flush/VESA安装设计，可根据不同场景需要进行安装，操作更加便利。

总之，阿普奇全屏电容触摸屏工业一体机PLxxxCQ-E7S系列H81平台以其出色的性能和丰富的功能特性，成为工业领域中不可或缺的一款设备。无论是在生产制造、物流配送还是自动化控制等行业领域，该产品都能够带来稳定可靠的使用体验，是您工业自动化设备的最佳选择。

产品介绍

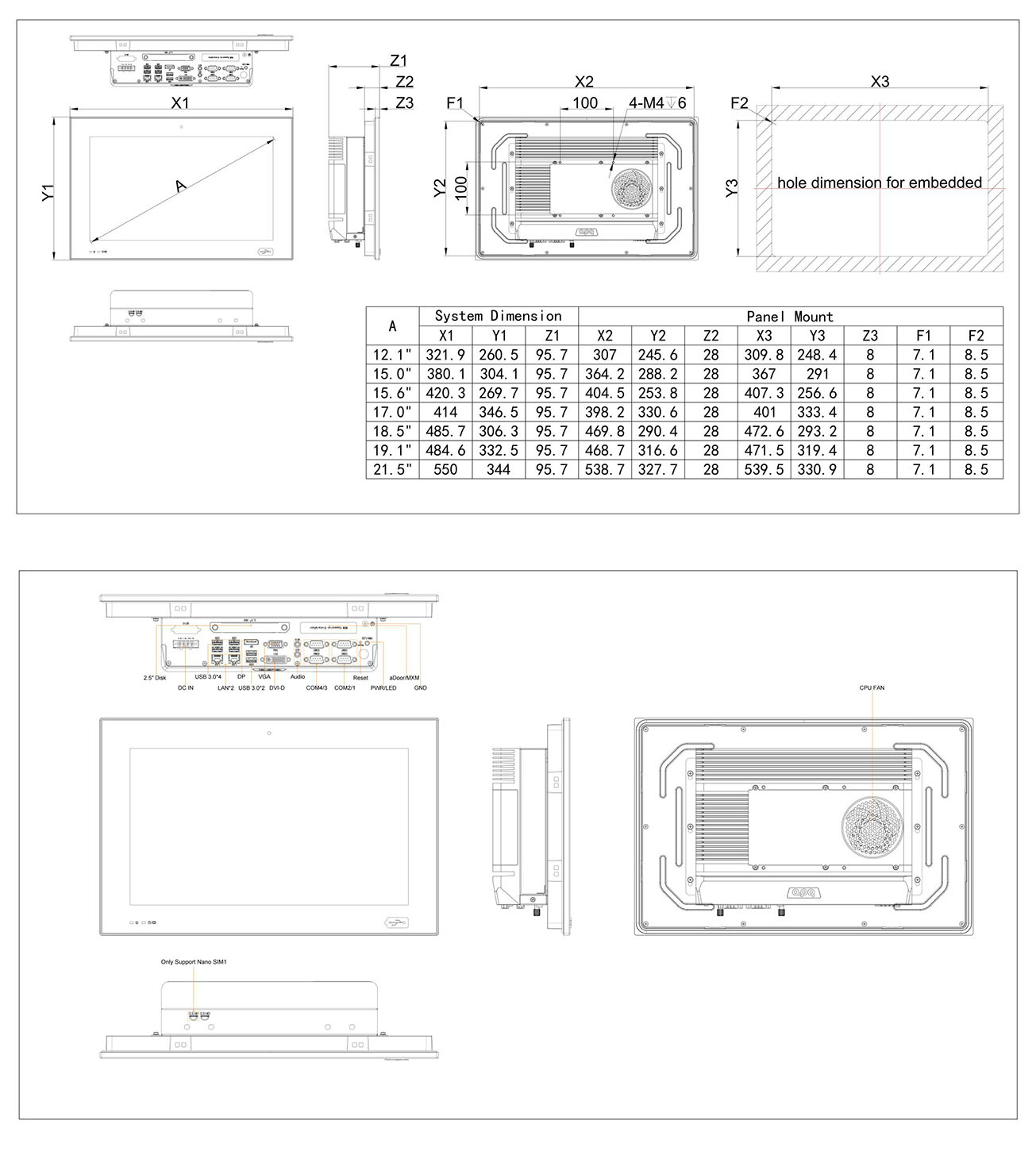

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		PL121CQ-E7S	PL150CQ-E7S	PL156CQ-E7S	PL170CQ-E7S	PL185CQ-E7S	PL191CQ-E7S	PL215CQ-E7S
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.1"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	Projected Capacitive Touch
	Controller	USB signal
	Input	Finger/Capacitive Touch Pen
	Light Transmission	≥85%
	Hardness	≥6H
Processor System	CPU	Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1150
	Chipset	Intel® H81
	BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Memory	Max Capacity	16GB, Single Max. 8GB
Graphics	Controller	Intel® HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
Storage	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots	MXM/aDoor	1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot
Expansion Slots	Mini PCIe	1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.0 (Type-A, 5Gbps) 4 * USB2.0 (Type-A)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 VGA (DB15/F): max resolution up to 19201200 @ 60Hz 1 DP: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M)
	Button	1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O	Antenna	4 * Antenna hole
Rear I/O	SIM	1 * Nano SIM card slot (SIM1)
Internal I/O	USB	2 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
	TFront Panel	1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
	Front Panel	1 * Front Panel (PWR + RST + LED, wafer)
	Speaker	1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	2 * SATA 7P Connector
	SATA Power	2 * SATA Power (SATA_PWR1/2, wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (wafer)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9 ~ 36VDC, P≤240W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 7/10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Mounting	VESA, embedded
	Dimensions (L * W * H, Unit: mm)	321.9260.595.7	380.1304.195.7	420.3269.795.7	414346.595.7	485.7306.395.7	484.6332.595.7	55034495.7
	Weight	Net: 6.6 kg Total: 8.1 kg	Net: 8.0 kg Total: 9.5 kg	Net: 7.9 kg Total: 9.6 kg	Net: 8.8 kg Total: 10.3 kg	Net: 8.7 kg Total: 10.2 kg	Net: 10.0 kg Total: 11.5 kg	Net: 9.6 kg Total: 11.1 kg
Environment	Heat Dissipation System	PWM Fan Cooling
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃
	Storage Temperature	-20~60℃	-20~70℃	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃
	Relative Humidity	5 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
