PLE7L系列H610平台工业一体机/工业平板电脑电阻触摸屏

Note: The product image shown above is the PL150RQ-E7L-H610 model

PLE7L系列H610平台工业一体机/工业平板电脑电阻触摸屏

特点:

全屏电阻触摸屏设计
模块化设计12.1~21.5″可选,支持方屏/宽屏
前面板满足IP65要求
前面板集成USB Type-A和信号指示灯
支持Intel® 12th/13th Gen Core/Pentium/Celeron Desktop CPU, TDP 35W, LGA1700
搭配Intel® H610芯片组
2个Intel网络接口 (1 * 1GbE&1 * 2.5GbE)
3路显示输出 HDMI，DP++和内部LVDS, 最高支持4K@60Hz分辨率
丰富的USB、串口扩展接口和PCIe、mini PCIe、M.2扩展插槽
无风扇被动式散热

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

阿普奇全屏电阻触摸工业一体机PLxxxRQ-E7L系列H610平台是一款功能强大的工业电脑，拥有全新的设计和丰富的功能特性。全屏电阻触摸设计使操作更加便捷，模块化设计提供12.1英寸到21.5英寸可选尺寸，支持方屏/宽屏显示。前面板符合IP65要求，具有USB Type-A接口和信号指示灯，便于连接其他设备并及时了解设备状态。该系列产品支持Intel® 12/13代Core/Pentium/Celeron台式CPU，TDP 35W，采用LGA1700插座，搭载Intel® H610芯片组，性能强大可靠。同时，具有2个Intel网络接口（1*1GbE和1*2.5GbE）、3通道显示输出HDMI、DP++和内部LVDS，支持4K@60Hz分辨率，满足了对高清画质的需求。此外，阿普奇全屏电阻触摸工业一体机还具备丰富的USB和串口扩展接口，同时搭载了PCIe、mini PCIe、M.2扩展槽，可以满足不同的扩展需求。它采用无风扇被动式散热设计，运行更加安静稳定，适用于各种工业场景的环境。

阿普奇全屏电阻触摸工业一体机PLxxxRQ-E7L系列H610平台不仅外观时尚，而且性能卓越，是工业自动化、工厂生产线、物联网等领域的理想选择。

产品介绍

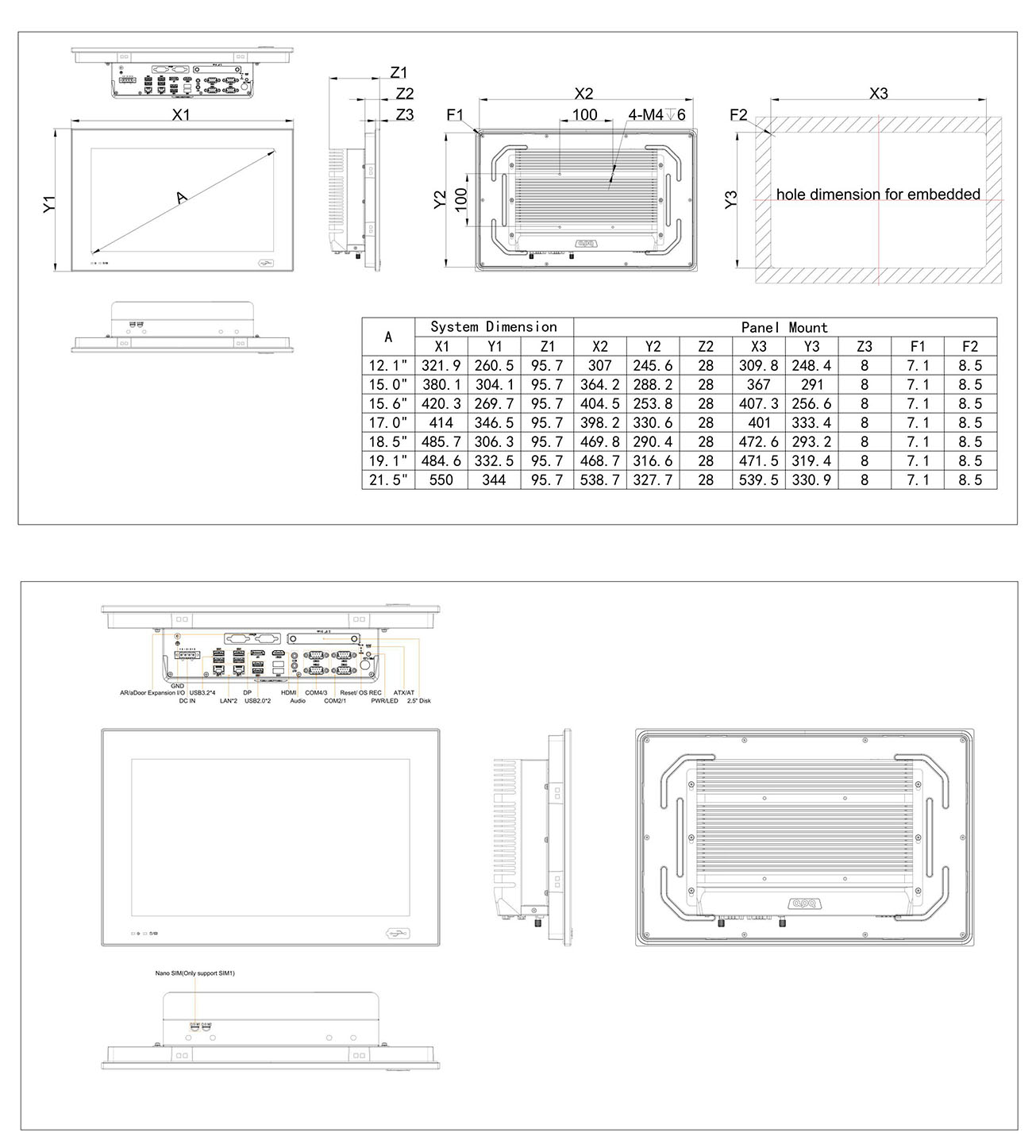

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		PL121RQ-E7L	PL150RQ-E7L	PL156RQ-E7L	PL170RQ-E7L	PL185RQ-E7L	PL191RQ-E7L	PL215RQ-E7L
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.1"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	5-wire resistive touch
	Controller	USB signal
	Input	finger/touch pen
	Light Transmission	≥78%
	Hardness	≥3H
Processor System	CPU	Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	35W
	Socket	LGA1700
	Chipset	H610
	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
Memory	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel® UHD Graphics
Ethernet	Controller	1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
Storage	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots	aDoor	1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
Expansion Slots	Mini PCIe	1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card)
Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 2 * USB3.2 Gen 1x1 (Type-A, 5Gbps) 2 * USB2.0 (Type-A)
	Display	1 * HDMI1.4b: max resolution up to 40962160 @ 30Hz 1 DP1.4a: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes)
	Button	1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button
Rear I/O	Antenna	4 * Antenna hole
Rear I/O	SIM	1 * Nano SIM card slots(SIM1)
Internal I/O	USB	6 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
	Front Panel	1 * FPanel (PWR+RST+LED, wafer)
	Audio	1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	3 * SATA 7P Connector, up to 600MB/s
	SATA Power	3 * SATA Power (wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9~36VDC, P≤240W 18~60VDC, P≤400W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Mounting	VESA, Embedded
	Dimensions (L * W * H, Unit: mm)	321.9260.595.7	380.1304.195.7	420.3269.795.7	414346.595.7	485.7306.395.7	484.6332.595.7	56034495.7
	Weight	Net: 6.66Kg Total: 8.16 Kg	Net: 8.05Kg Total: 9.55 Kg	Net: 7.95Kg Total: 9.45 Kg	Net: 8.8Kg Total: 10.6 Kg	Net: 8.65Kg Total: 10.45 Kg	Net: 10.05Kg Total: 11.85 Kg	Net: 9.58Kg Total: 11.38 Kg
Environment	Heat Dissipation System	Fanless Passive Cooling
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~60℃
	Storage Temperature	-30~80℃	-20~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
	Certification	CE/FCC, RoHS
