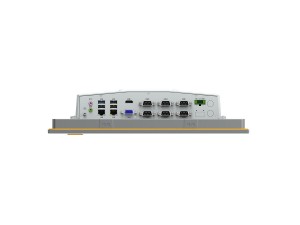

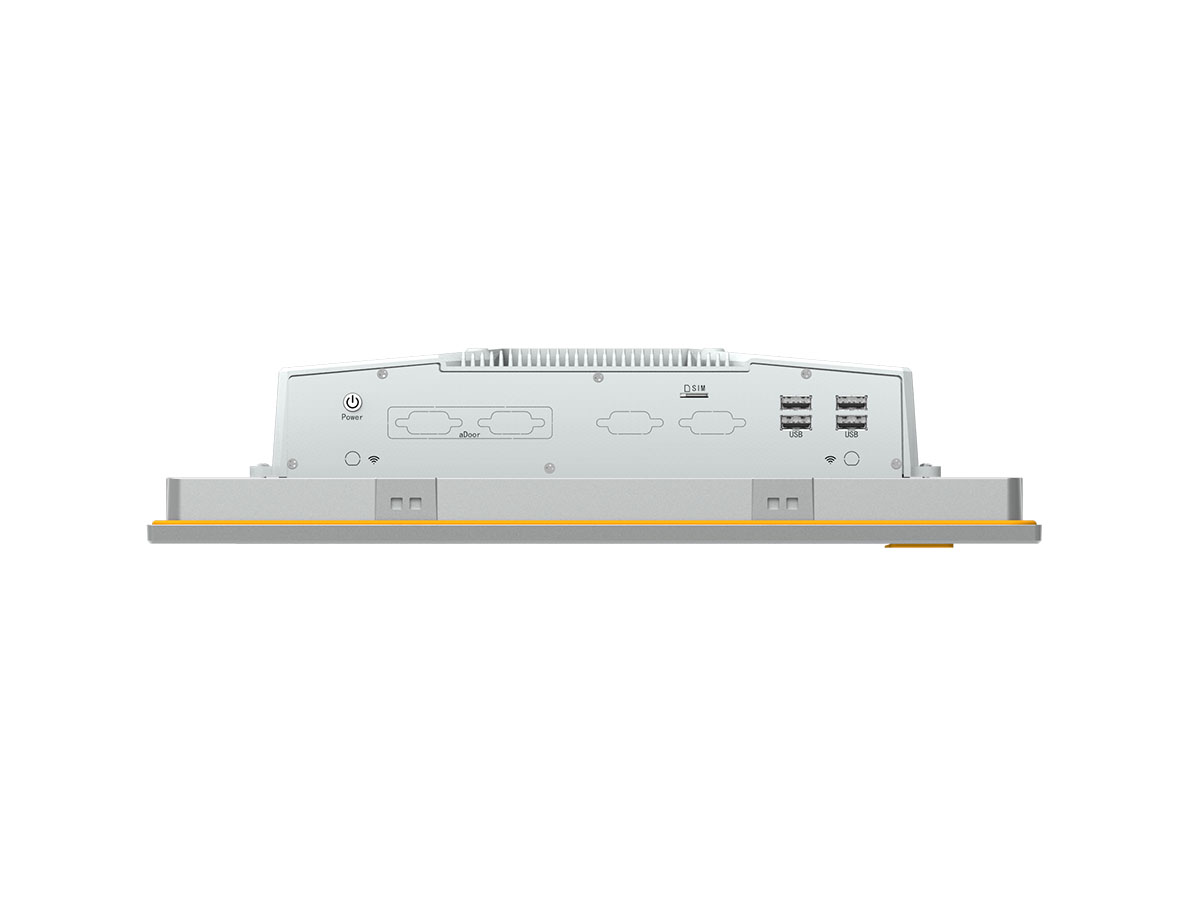

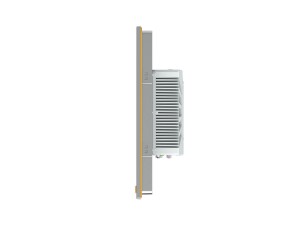

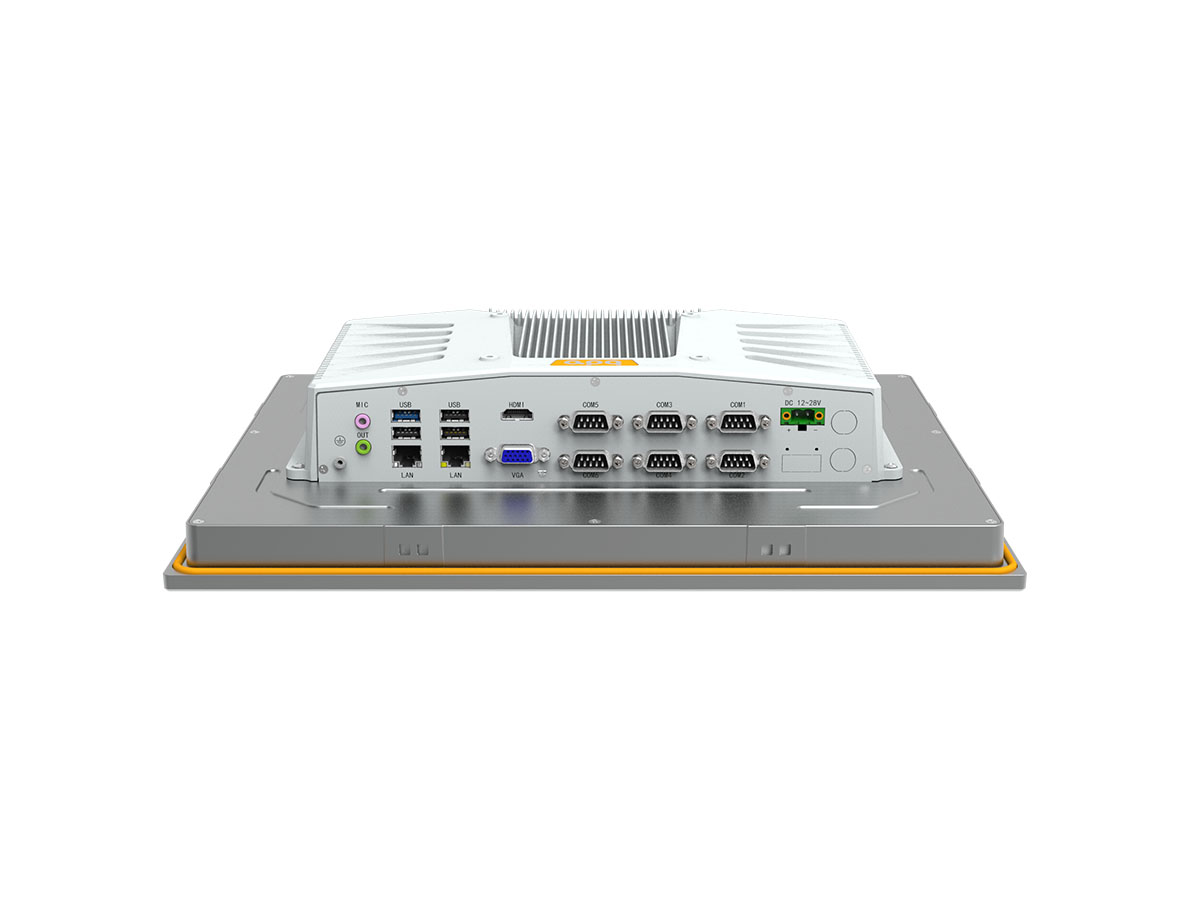

PLE5M系列工业一体机/工业平板电脑电容触摸屏

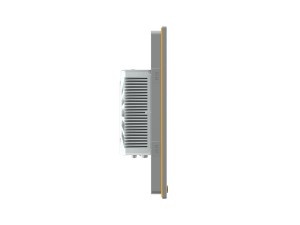

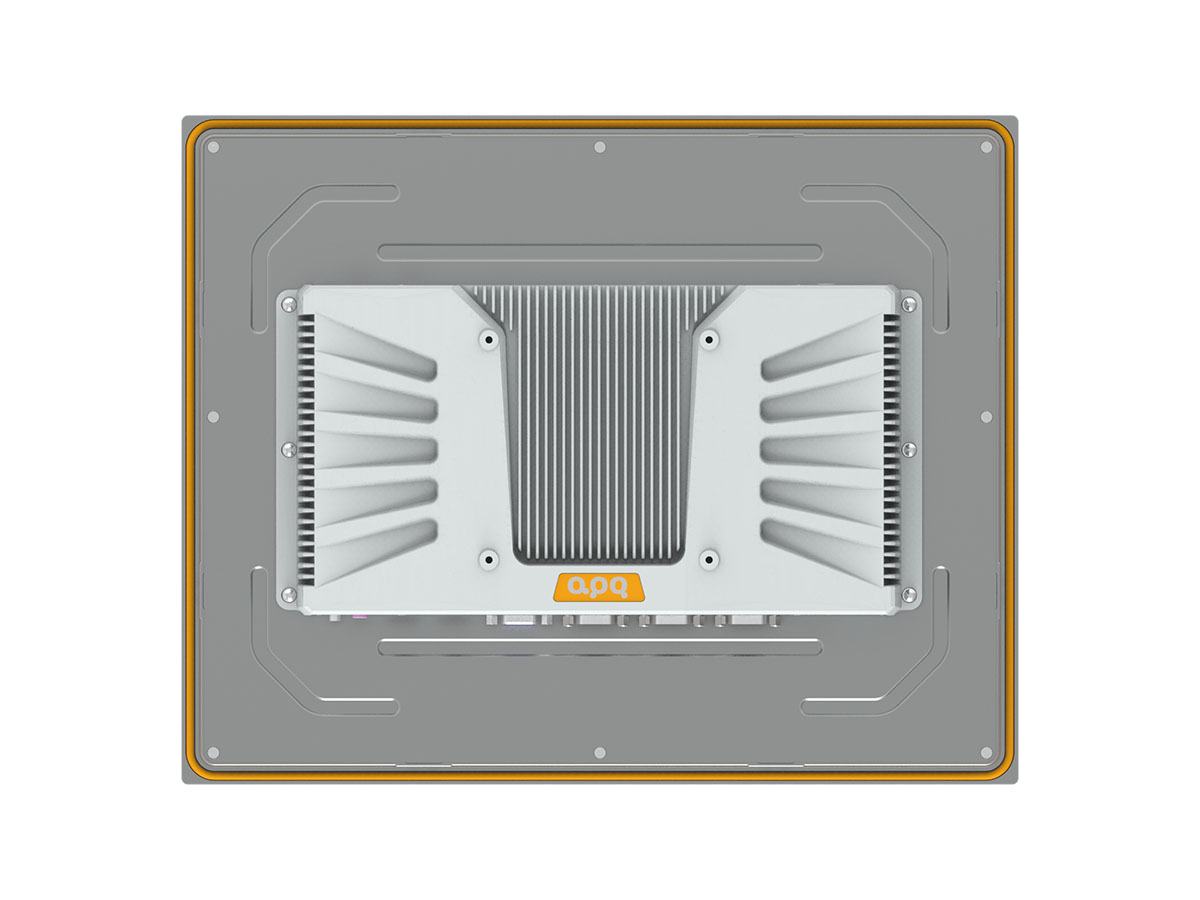

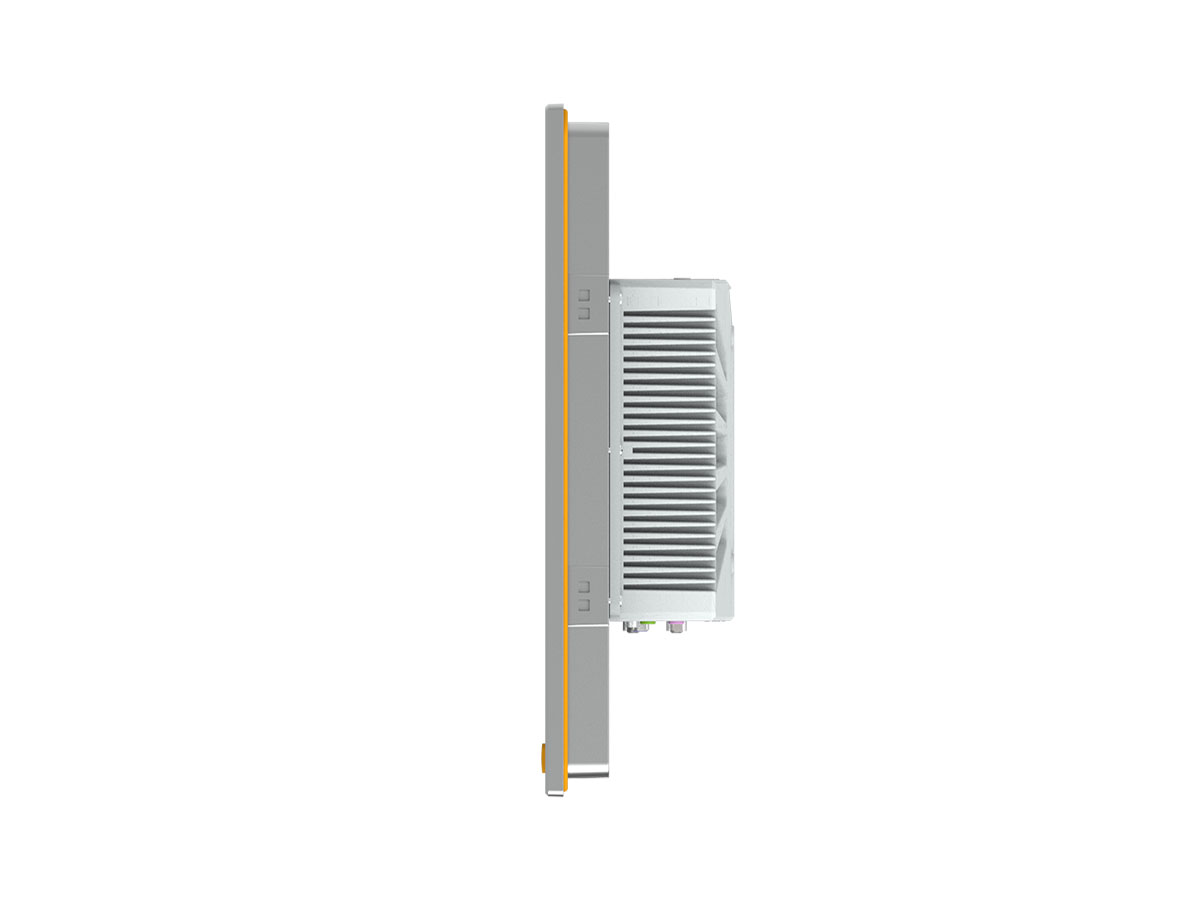

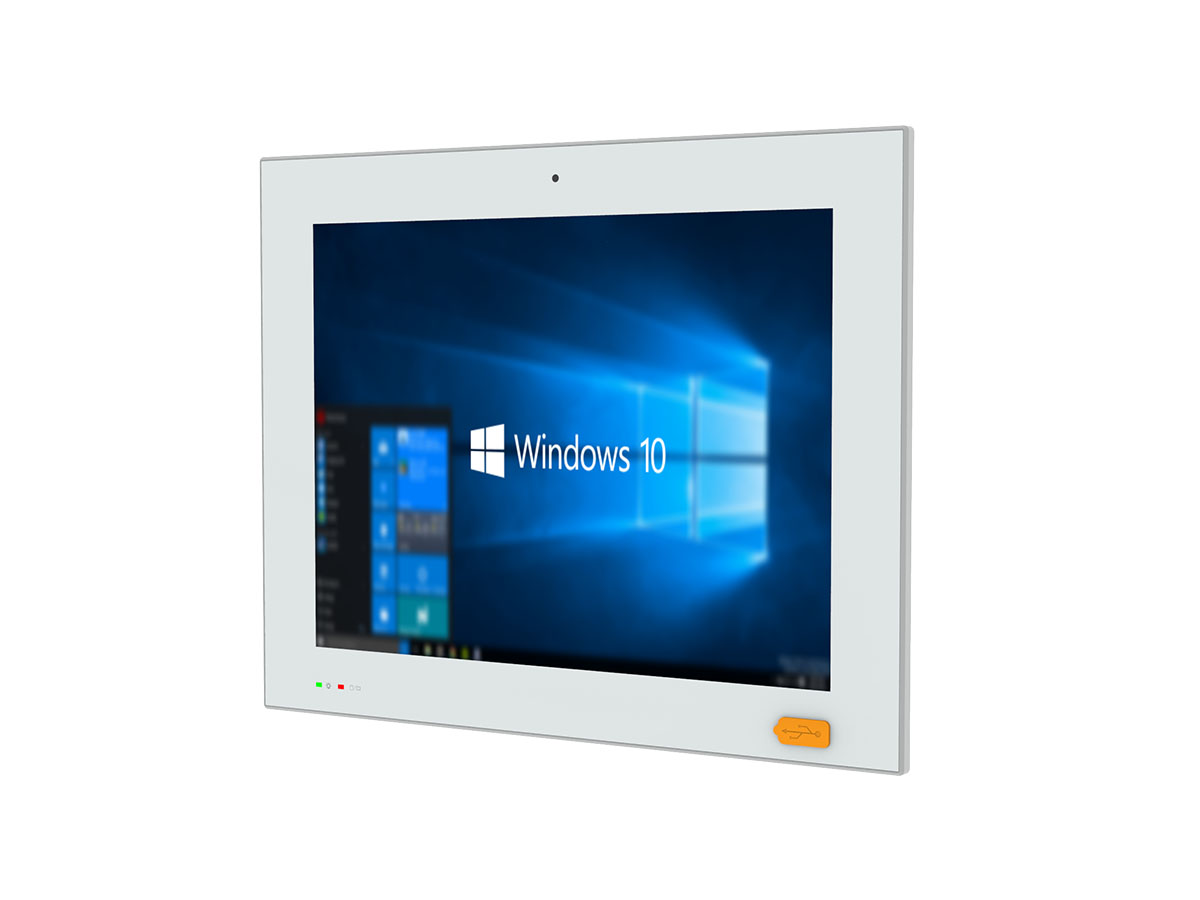

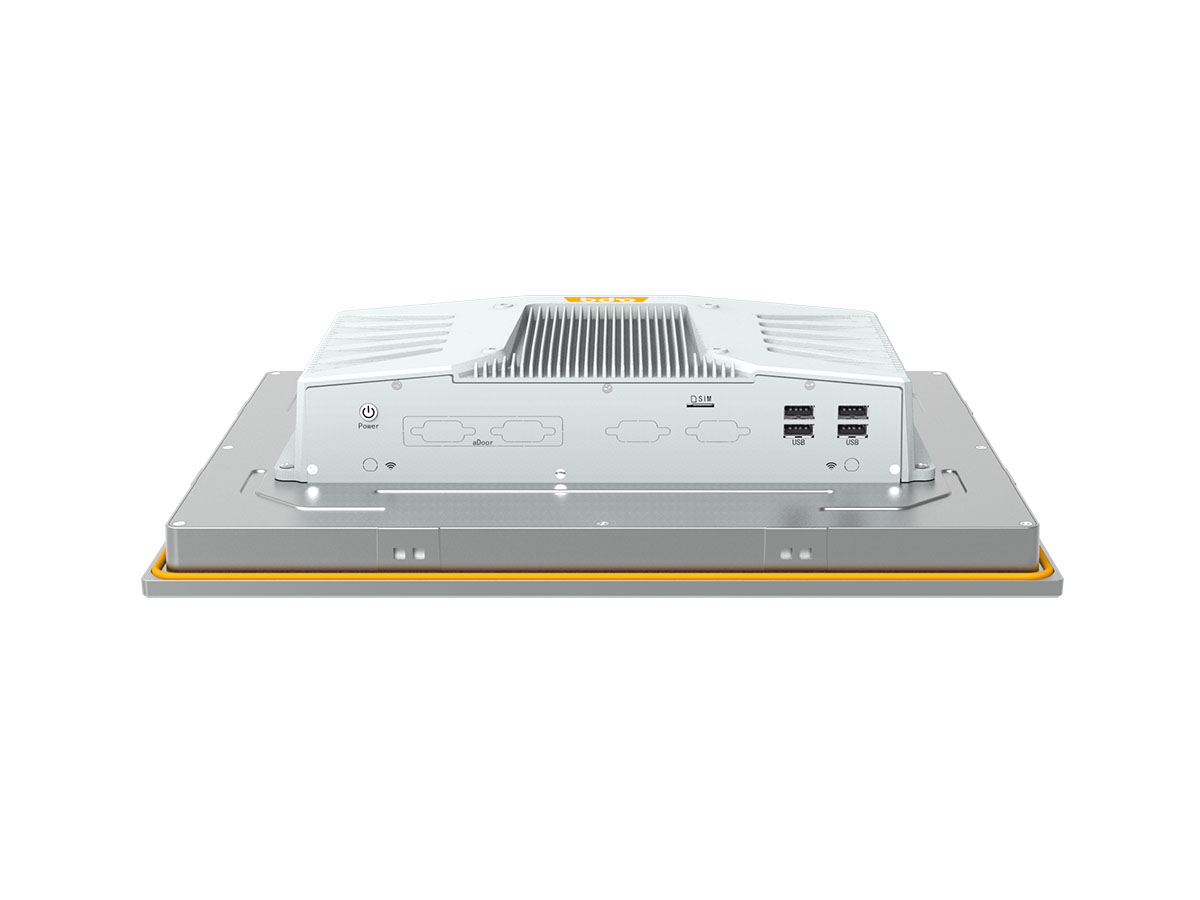

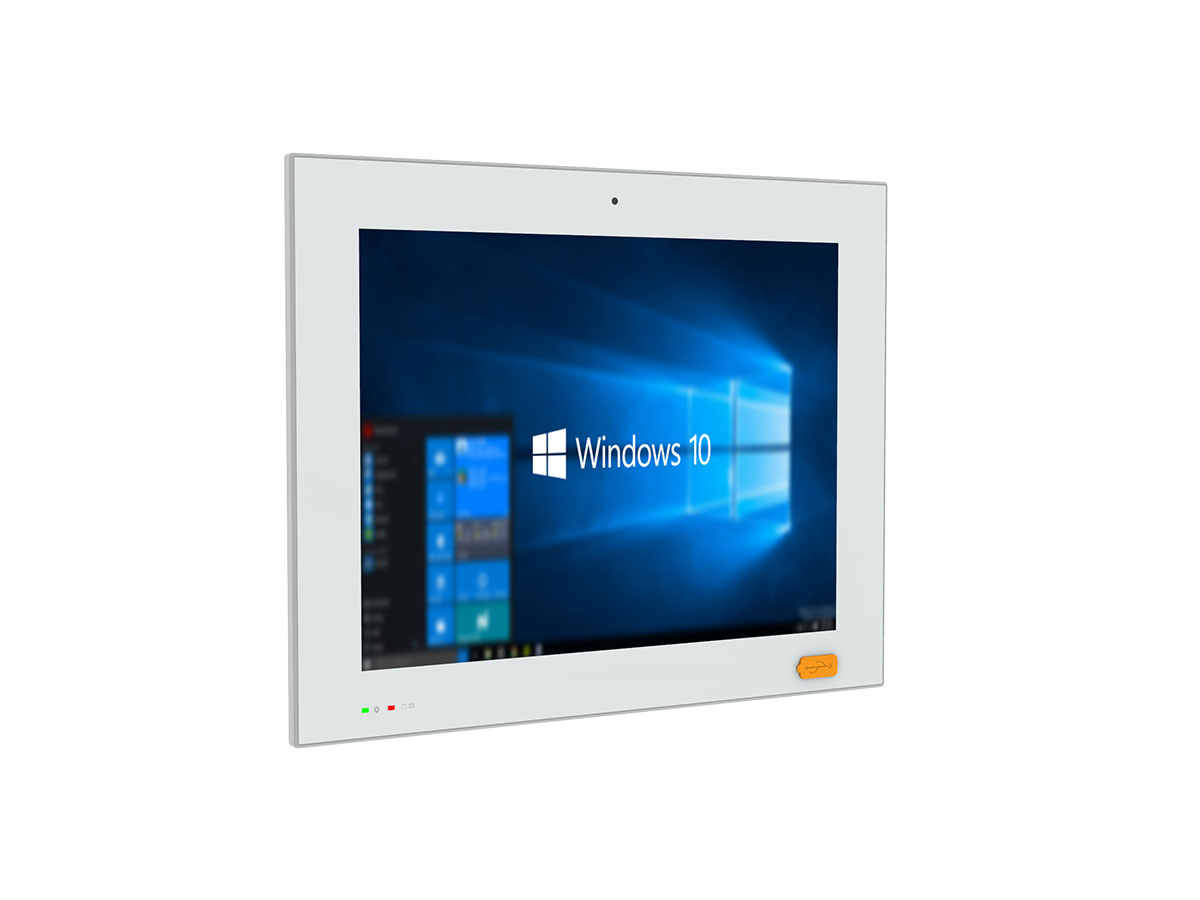

Note: The product image shown above is the PL150CQ-E5M model

PLE5M系列工业一体机/工业平板电脑电容触摸屏

特点:

全屏电容触摸屏设计
模块化设计12.1~21.5″可选,支持方屏/宽屏
前面板满足IP65要求
前面板集成USB Type-A和信号指示灯
采用Intel® Celeron® J1900超低功耗CPU
板载6个COM,支持两路隔离RS485
集成双Intel®千兆网卡
双硬盘存储支持
支持APQ MXM COM/GPIO模块扩展
支持WiFi/4G无线扩展
嵌入式/VESA安装
12~28V直流供电

远程管理
状态监控
远程运维
安全控制

联系我们

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

阿普奇全屏电容触摸屏工业一体机PLxxxCQ-E5M系列是一款专为工业应用而设计的强大一体机。出色的全屏电容触摸屏技术，提供流畅、准确的触控体验，采用模块化设计，支持12.1~21.5″的屏幕尺寸，同时支持方屏和宽屏显示，适应不同行业标准和用户需求。前面板具备出色的防尘防水性能，满足IP65要求，能够适应各种恶劣的工业环境。它采用Intel® Celeron® J1900超低功耗CPU，保证了高效性能，同时降低了能耗。集成了双Intel®千兆网卡，提供高速稳定的网络连接和数据传输能力。支持双硬盘存储，为用户提供更大的存储容量，满足各种数据存储需求。支持APQ MXM COM/GPIO模块扩展，可根据具体应用需求进行定制配置，进一步扩展产品的功能和应用范围。支持WiFi/4G无线扩展，方便远程管理和数据传输，实现灵活的网络连接。采用无风扇设计，减少维护需求，提高系统可靠性。支持嵌入式和VESA安装方式，方便集成到各种工业环境中。

综上所述，阿普奇全屏电容触摸屏工业一体机PLxxxCQ-E5M系列具备丰富的功能和出色的性能，助力工业自动化的发展。

产品介绍

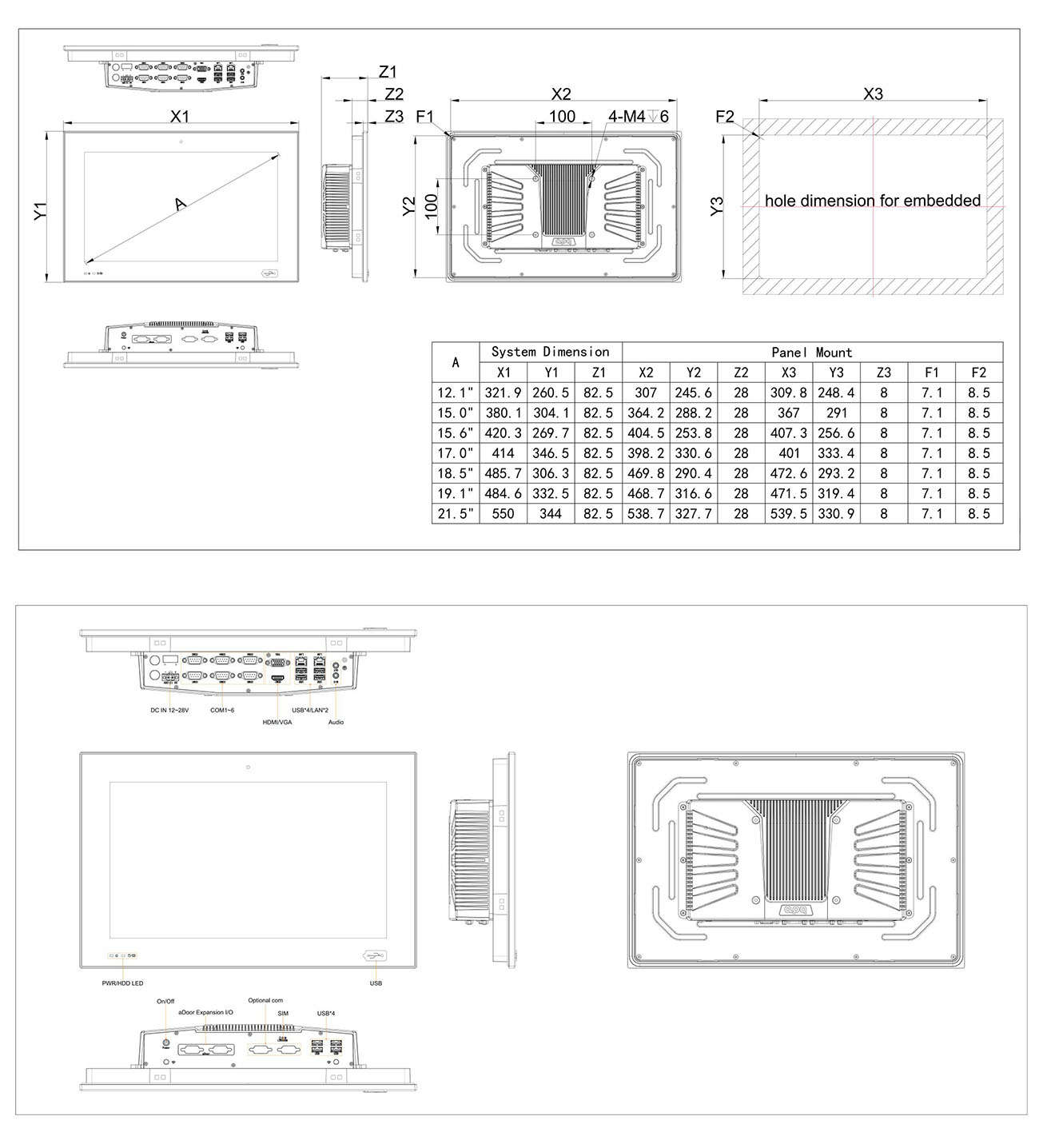

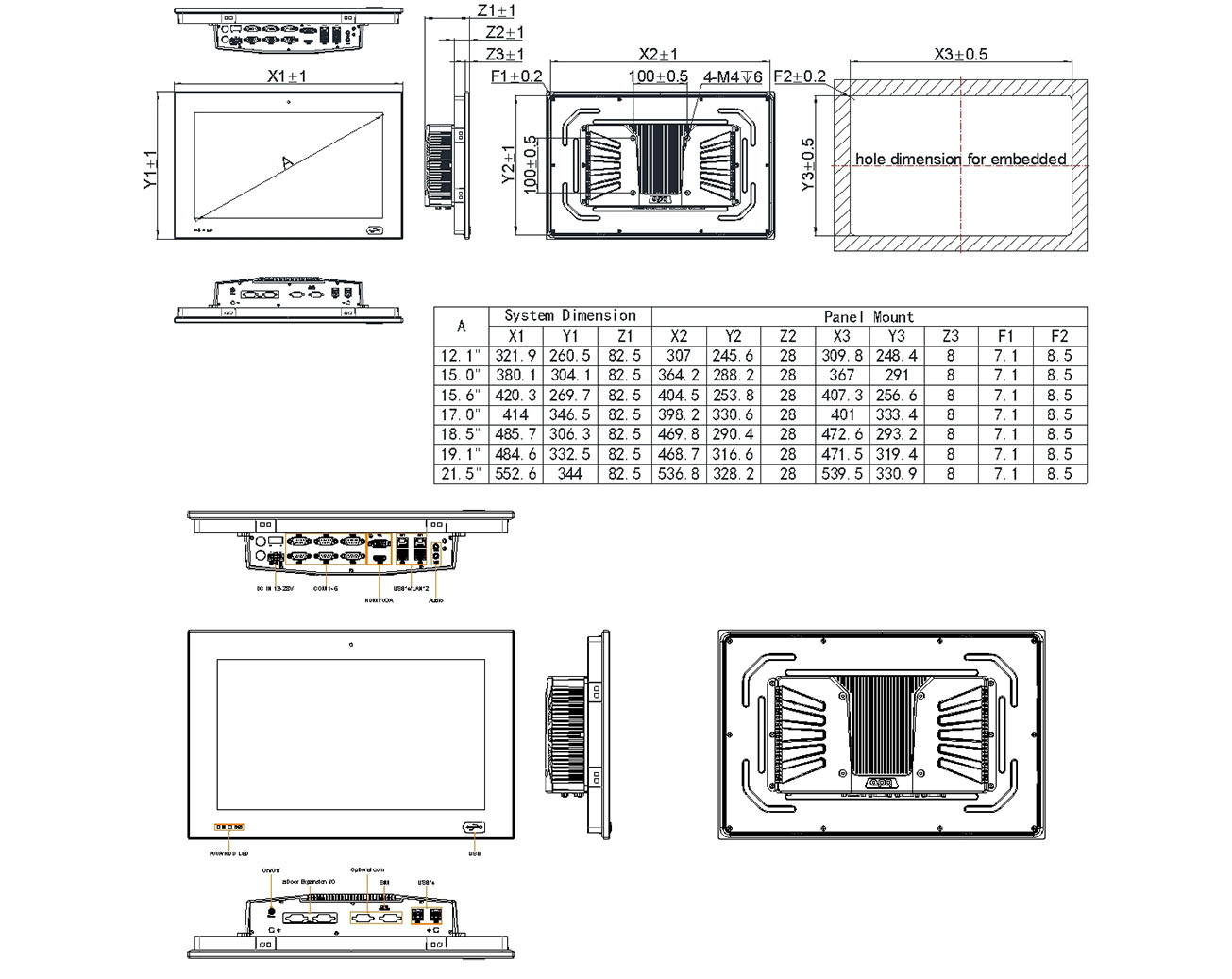

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		PL121CQ-E5M	PL150CQ-E5M	PL156CQ-E5M	PL170CQ-E5M	PL185CQ-E5M	PL191CQ-E5M	PL215CQ-E5M
LCD	Display Size	12.1"	15.0"	15.6"	17.0"	18.5"	19.0"	21.5"
	Display Type	XGA TFT-LCD	XGA TFT-LCD	FHD TFT-LCD	SXGA TFT-LCD	WXGA TFT-LCD	WXGA TFT-LCD	FHD TFT-LCD
	Max.Resolution	1024 x 768	1024 x 768	1920 x 1080	1280 x 1024	1366 x 768	1440 x 900	1920 x 1080
	Luminance	350 cd/m2	300 cd/m2	350 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2	250 cd/m2
	Aspect Ratio	4:3	4:3	16:9	5:4	16:9	16:10	16:9
	Viewing Angle	80/80/80/80°	88/88/88/88°	89/89/89/89°	85/85/80/80°	89/89/89/89°	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M	16.7M
	Backlight Lifetime	30,000 hr	70,000 hr	50,000 hr	30,000 hr	30,000 hr	30,000 hr	50,000 hr
	Contrast Ratio	800:1	2000:1	800:1	1000:1	1000:1	1000:1	1000:1
Touchscreen	Touch Type	Projected Capacitive Touch
	Controller	USB Signal
	Input	Finger/Capacitive Touch Pen
	Light Transmission	≥85%
	Hardness	≥6H
Processor System	CPU	Intel^® Celeron^® J1900
	Base Frequency	2.00 GHz
	Max Turbo Frequency	2.42 GHz
	Cache	2MB
	Total Cores/Threads	4/4
	TDP	10W
	Chipset	SOC
	BIOS	AMI UEFI BIOS
Memory	Socket	1 * DDR3L-1333MHz SO-DIMM Slot
Memory	Max Capacity	8GB
Graphics	Controller	Intel^® HD Graphics
Ethernet	Controller	2 * Intel^® i210-AT (10/100/1000 Mbps, RJ45)
Storage	SATA	1 * SATA2.0 Connector (2.5-inch hard disk with 15+7pin)
Storage	M.2	1 * M.2 Key-M Slot (support SATA SSD, 2280)
Expansion Slots	MXM/aDoor	1 * MXM slot (LPC+GPIO, support COM/GPIO MXM card)
Expansion Slots	Mini PCIe	1 * Mini PCIe Slot (PCIe2.0+USB2.0)
Front I/O	USB	1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A)
	Ethernet	2 * RJ45
	Display	1 * VGA: max resolution up to 19201280@60Hz 1 HDMI: max resolution up to 1920*1280@60Hz
	Audio	1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack
	Serial	2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M)
	Power	1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
Rear I/O	USB	4 * USB2.0 (Type-A)
	SIM	1 * Nano SIM Card slot (Mini PCIe module provides functional support)
	Button	1 * Power Button with LED
Internal I/O	Front Panel	1 * TFront Panel (3USB2.0+Front Panel, 10x2Pin, PHD2.0) 1 Front Panel (3x2Pin, PHD2.0)
	FAN	1 * SYS FAN (4x1Pin, MX1.25)
	LPC	1 * LPC (8x2Pin, PHD2.0)
	PS/2	1 * PS/2 (PS/2 keyboard + mouse, 6x1Pin, PH2.0)
	USB	2 * USB2.0 (5x2Pin, PH2.0)
	Power	1 * DCIN (power input, 4x1Pin, XH2.54)
	Display	1 * LVDS/eDP (Default LVDS, 20x2Pin, PHD2.0)
	GPIO	1 * 16bits DIO (8xDI and 8xDO, 10x2Pin, PHD2.0)
	Audio	1 * Front Audio (header, Line-Out + MIC, 5x2Pin 2.54mm) 1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0)
Power Supply	Type	DC
	Power Input Voltage	12~28VDC
	Connector	1 * 2Pin Power Input Connector (12~28V, P= 5.08mm)
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 7/8.1/10
OS Support	Linux	Linux
Watchdog	Output	System Reset
Watchdog	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	VESA, embedded
	Dimensions (LWH, Unit: mm)	321.9* 260.5*82.5	380.1* 304.1*82.5	420.3* 269.7*82.5	414* 346.5*82.5	485.7* 306.3*82.5	484.6* 332.5*82.5	550* 344*82.5
	Weight	Net: 3.9Kg, Total: 6.2Kg	Net: 5.3Kg,Total: 7.7Kg	Net: 5.2Kg,Total: 7.6Kg	Net: 6Kg,Total: 8.5Kg	Net: 5.9Kg,Total: 8.5Kg	Net: 6.6Kg,Total: 9.3Kg	Net: 6.8Kg,Total: 9.6Kg
Environment	Heat Dissipation System	Passive heat dissipation
	Operating Temperature	-20~60℃	-20~60℃	-20~60℃	0~50℃	0~50℃	0~50℃	0~60℃
	Storage Temperature	-30~80℃	-30~70℃	-30~70℃	-20~60℃	-20~60℃	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
