PGE7L系列H81平台 工业一体机/工业平板电脑 电阻触摸屏

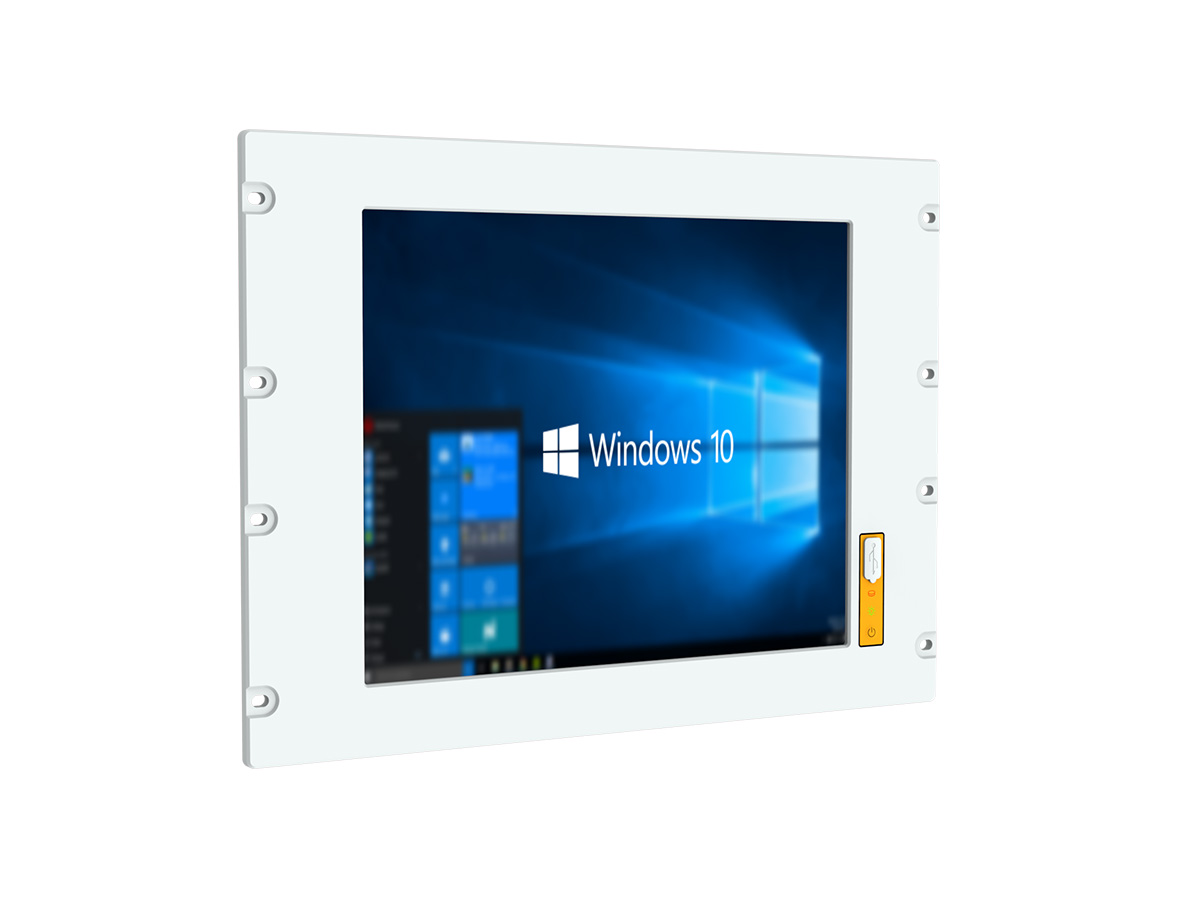

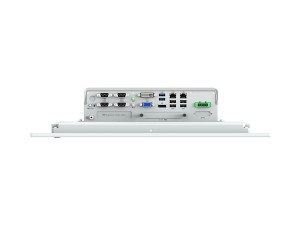

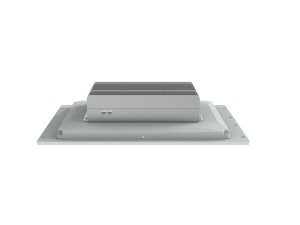

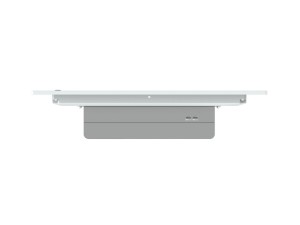

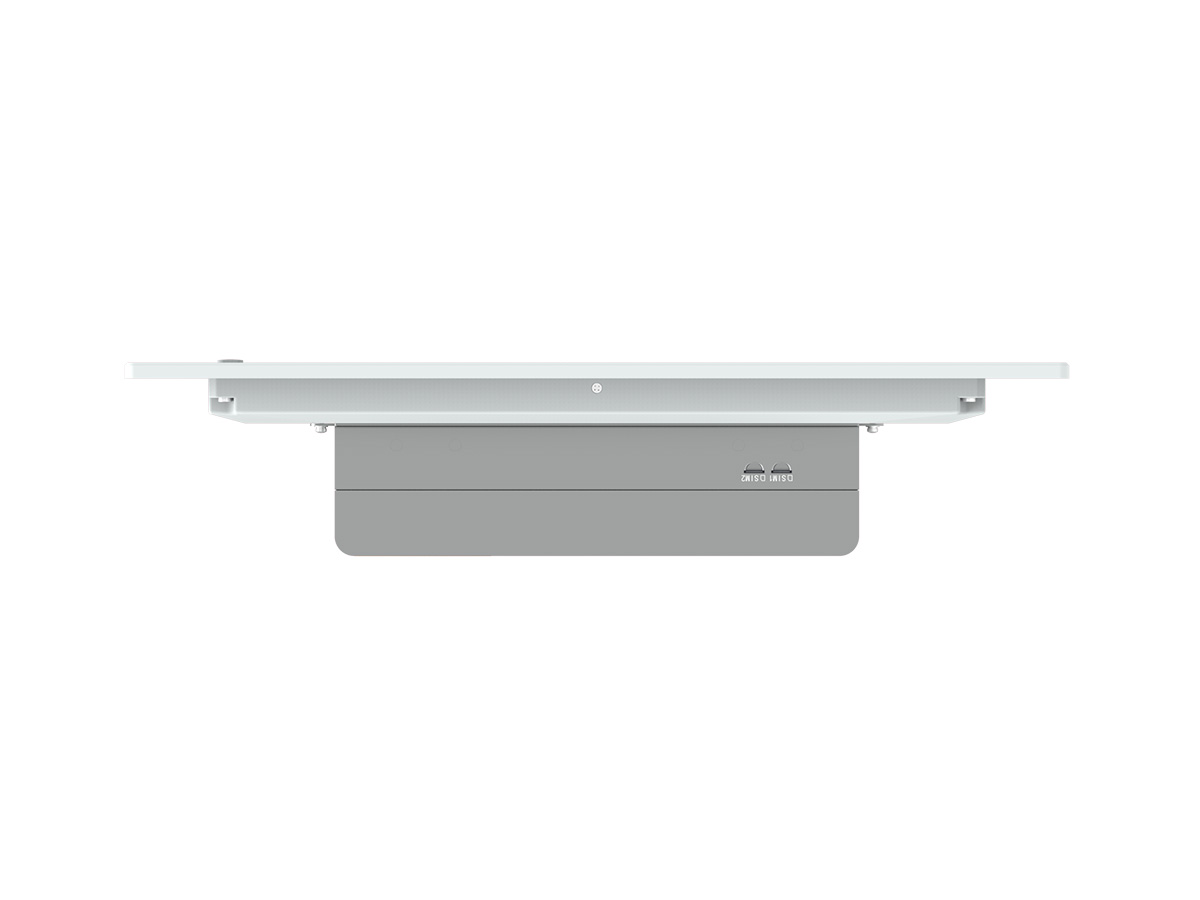

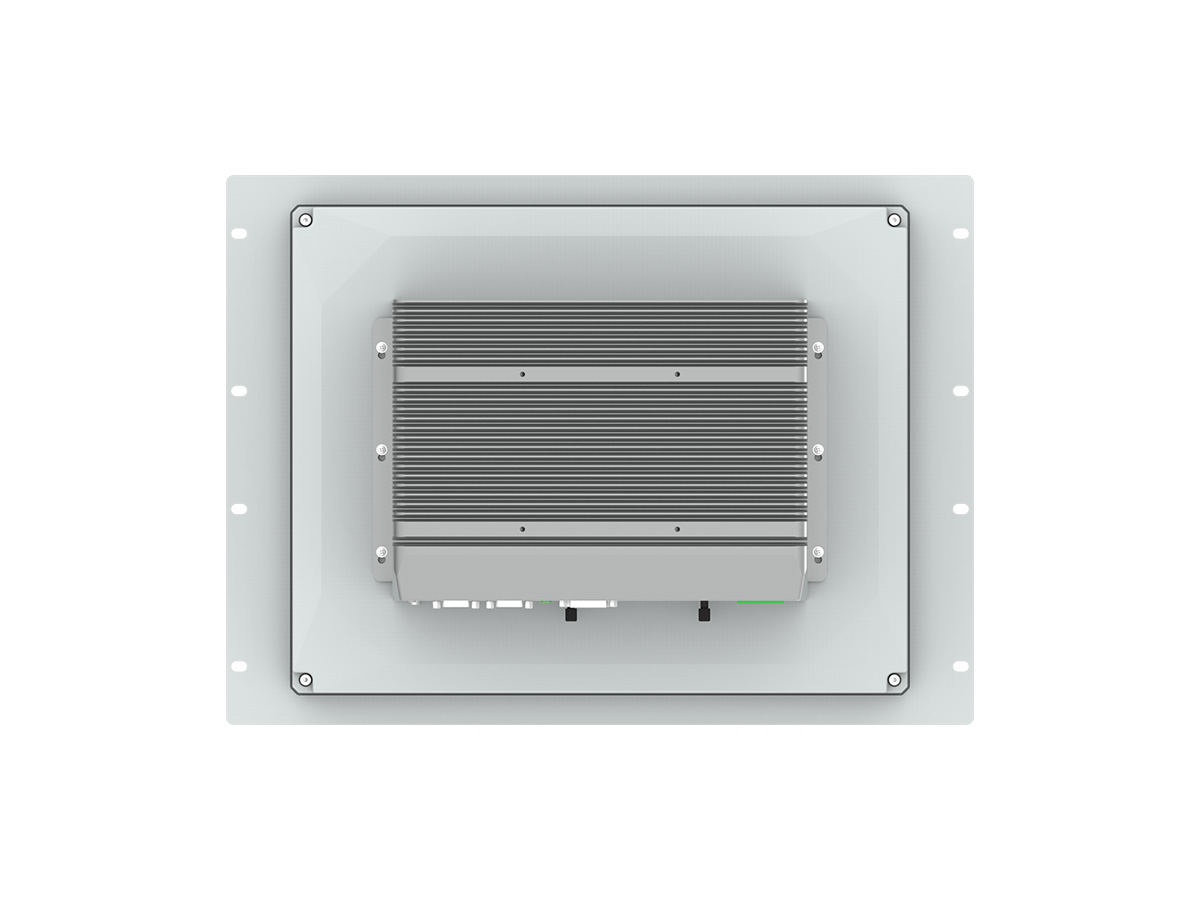

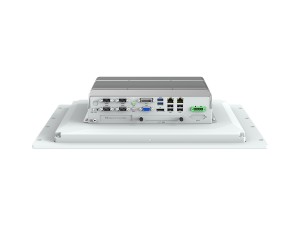

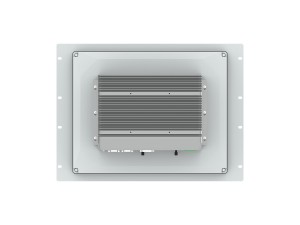

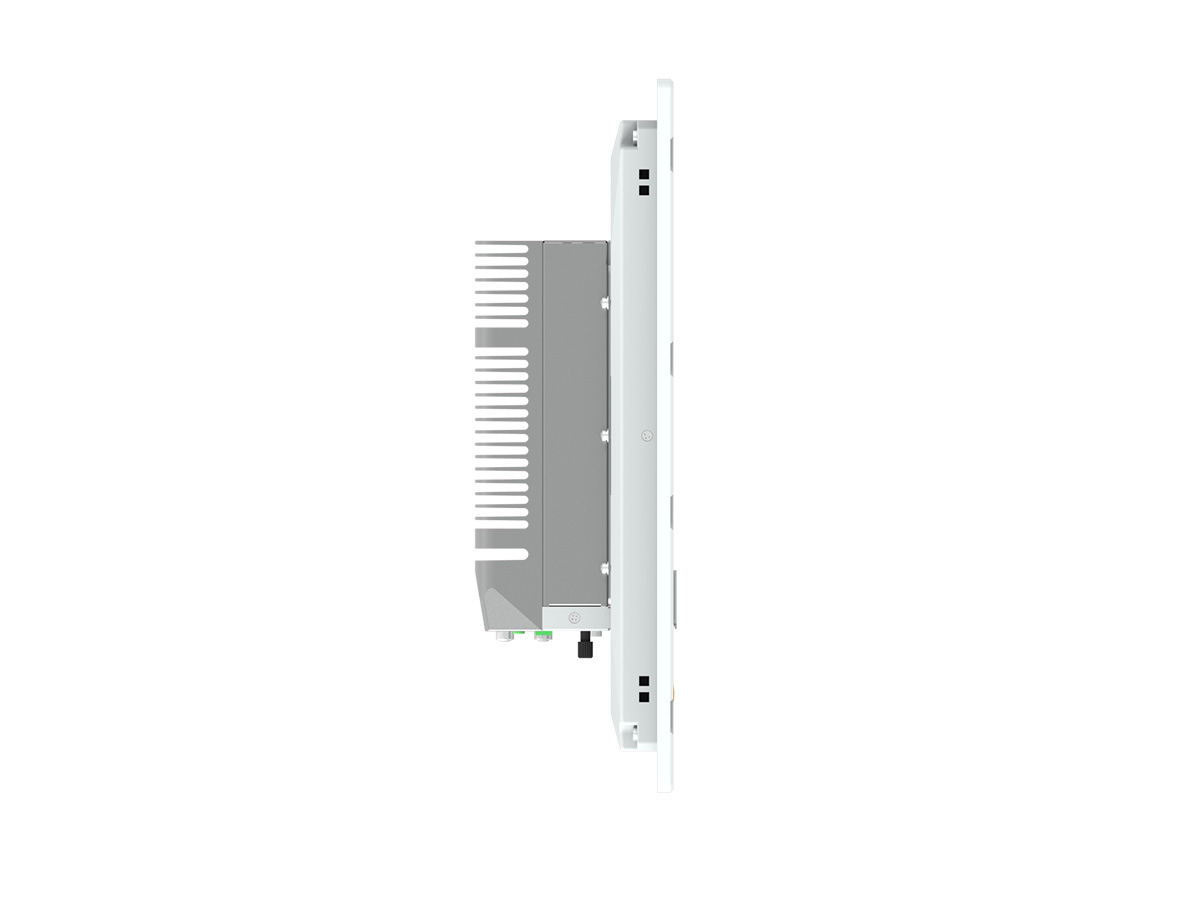

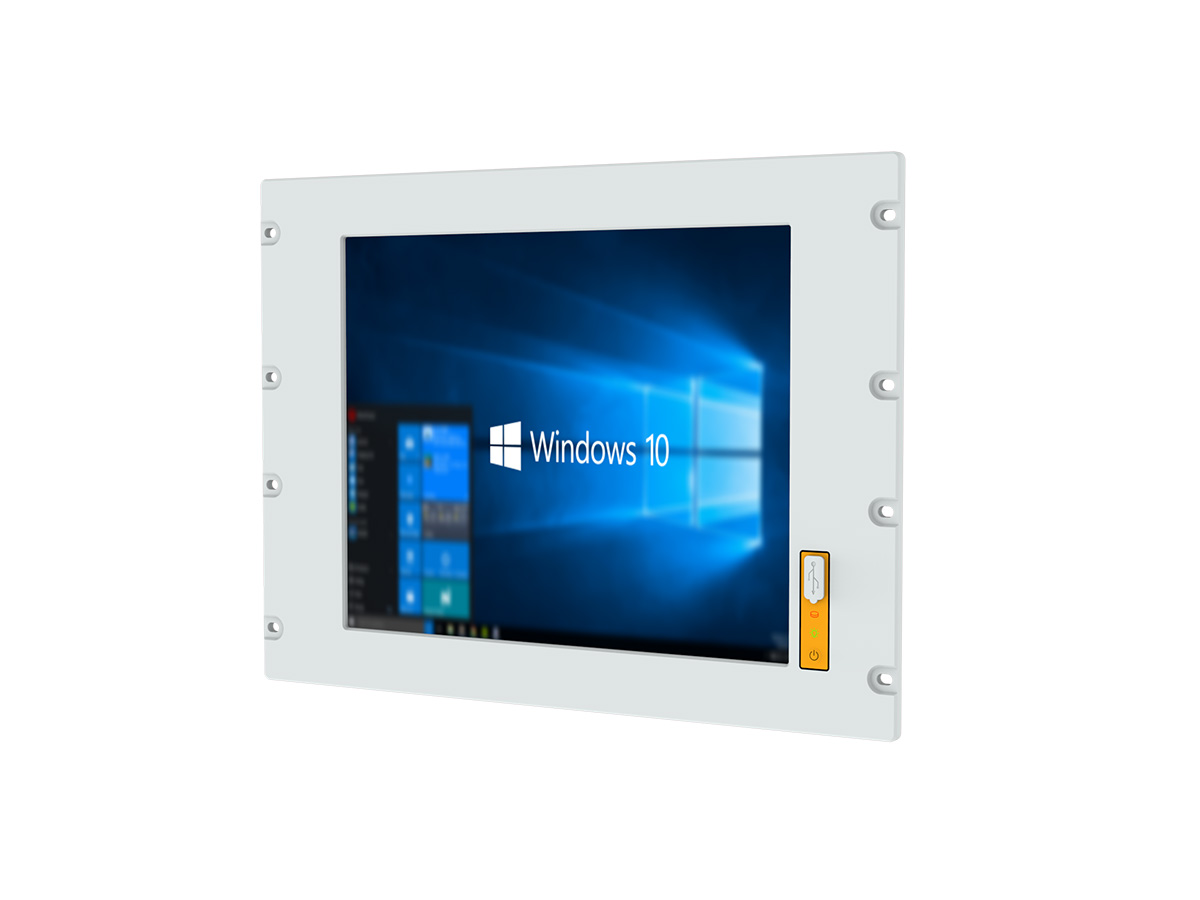

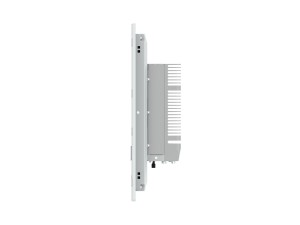

Note: The product image displayed above is PG170RF-E7L-H81 model

PGE7L系列H81平台 工业一体机/工业平板电脑 电阻触摸屏

特点:

  • 电阻触摸屏设计
  • 模块化设计17/19″可选,支持方屏/宽屏
  • 前面板满足IP65要求
  • 前面板集成USB Type-A和信号指示灯
  • 支持Intel® 4th/5th Gen Core/Pentium/Celeron Desktop CPU, TDP 35W,
  • 搭配Intel® H81芯片组
  • 2个Intel千兆网络接口和4个DB9串口
  • M.2和2.5寸双硬盘位存储支持
  • 4路显示输出 VGA,DVI-D,DP++和内部LVDS,最高支持4K@60Hz分辨率
  • 9~36V直流供电(可选12V)
  • 上架式/VESA安装

  • 远程管理

    远程管理

  • 状态监控

    状态监控

  • 远程运维

    远程运维

  • 安全控制

    安全控制

扫码即可添加微信,售前客服为您提供咨询服务

产品描述

阿普奇电阻触摸屏工业一体机PGxxxRF-E7L系列H81平台是一款功能强大的工业设备,具有电阻触摸屏设计和模块化设计,可选用17/19英寸屏幕,支持方屏和宽屏。前面板符合IP65要求,并集成了USB Type-A接口和信号指示灯支持Intel ®第四/五代Core / Pentium / Celeron台式CPUTDP 35W,搭载Intel® H81芯片组。它还拥有2个英特尔千兆网络接口和4DB9串行端口,M.22.5英寸双硬盘存储支持,以及4个显示输出通道VGADVI-DDP++和内部LVDS,支持高达4K@60Hz的分辨率。 此外,该设备还支持9~36V直流电源供应(12V可选)和机架安装/VESA安装。

总之,阿普奇电阻触摸屏工业一体机PGxxxRF-E7L系列H81平台是一款功能强大、灵活性高、适用范围广泛的工业设备,其电阻触摸屏设计使其特别适合工业操作环境下的使用,而模块化设计和多种安装选项则使其更加灵活多变,对于需要高性能工业计算和控制的用户来说,是一个理想的选择。

产品介绍

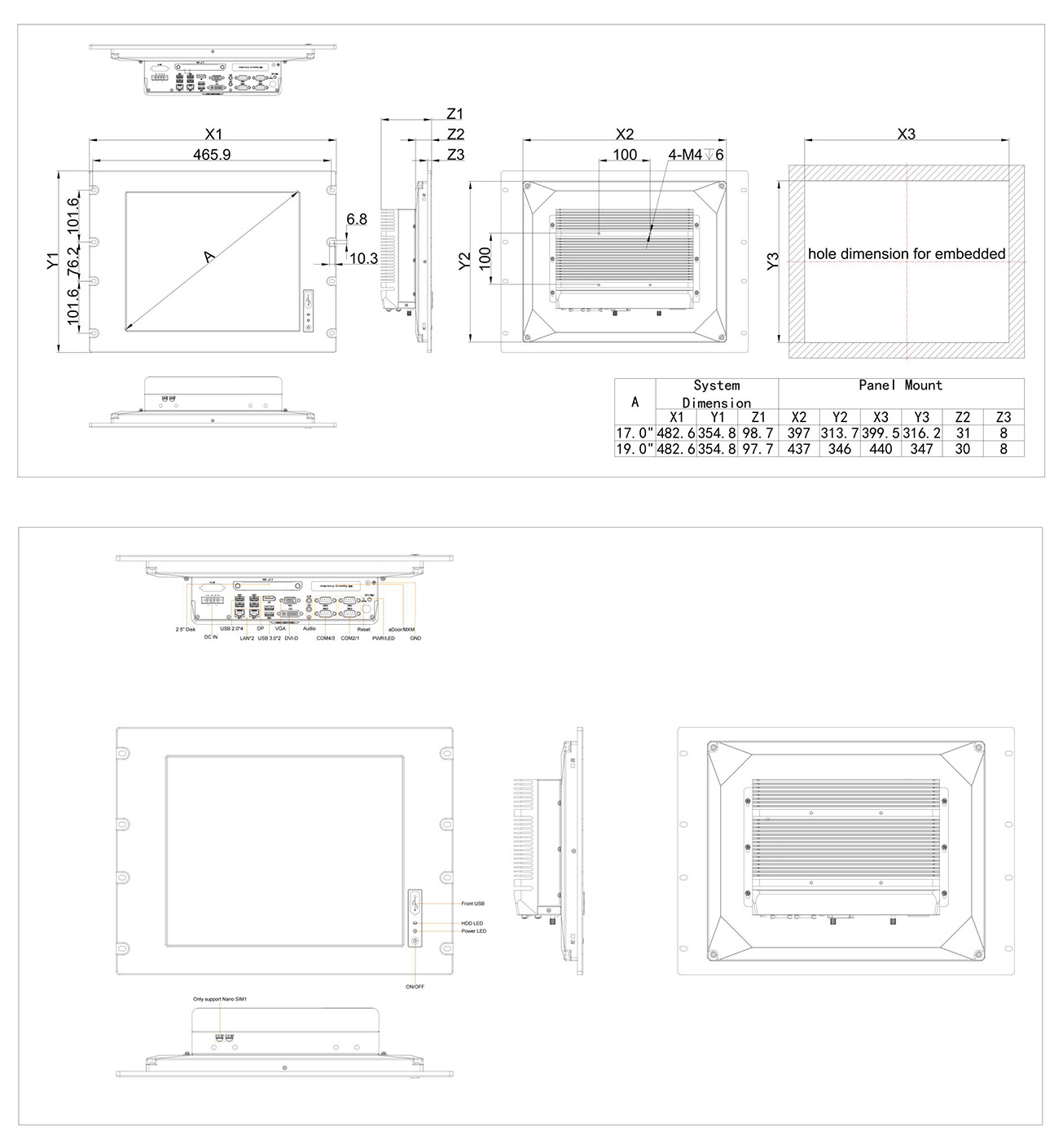

工程图纸

下载产品资料

扫码添加微信,获取最新产品资料文件

Model PG170RF-E7L PG190RF-E7L
LCD Display Size 17.0" 19.0"
Display Type SXGA TFT-LCD SXGA TFT-LCD
Max. Resolution 1280 x 1024 1280 x 1024
Luminance 250 cd/m2 250 cd/m2
Aspect Ratio 5:04 5:04
Viewing Angle 85/85/80/80° 89/89/89/89°
Max. Color 16.7M 16.7M
Backlight Lifetime 30,000 hr 30,000 hr
Contrast Ratio 1000:01:00 1000:01:00
Touchscreen Touch Type 5-Wire Resistive Touch
Controller USB signal
Input Finger/Touch pen
Light Transmission ≥78%
Hardness ≥3H
Click lifetime 100gf, 10 million times
Stroke lifetime 100gf, 1 million times
Response time ≤15ms
Processor System CPU Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU
TDP 35W
Socket LGA1150
Chipset Intel® H81
BIOS AMI UEFI BIOS (Support Watchdog Timer)
Memory Socket 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
Max Capacity 16GB, Single Max. 8GB
Graphics Controller Intel® HD Graphics
Ethernet Controller 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps)
1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage SATA 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm)
1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
M.2 1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots MXM/aDoor 1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
1 * aDoor Expansion Slot
Mini PCIe 1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)

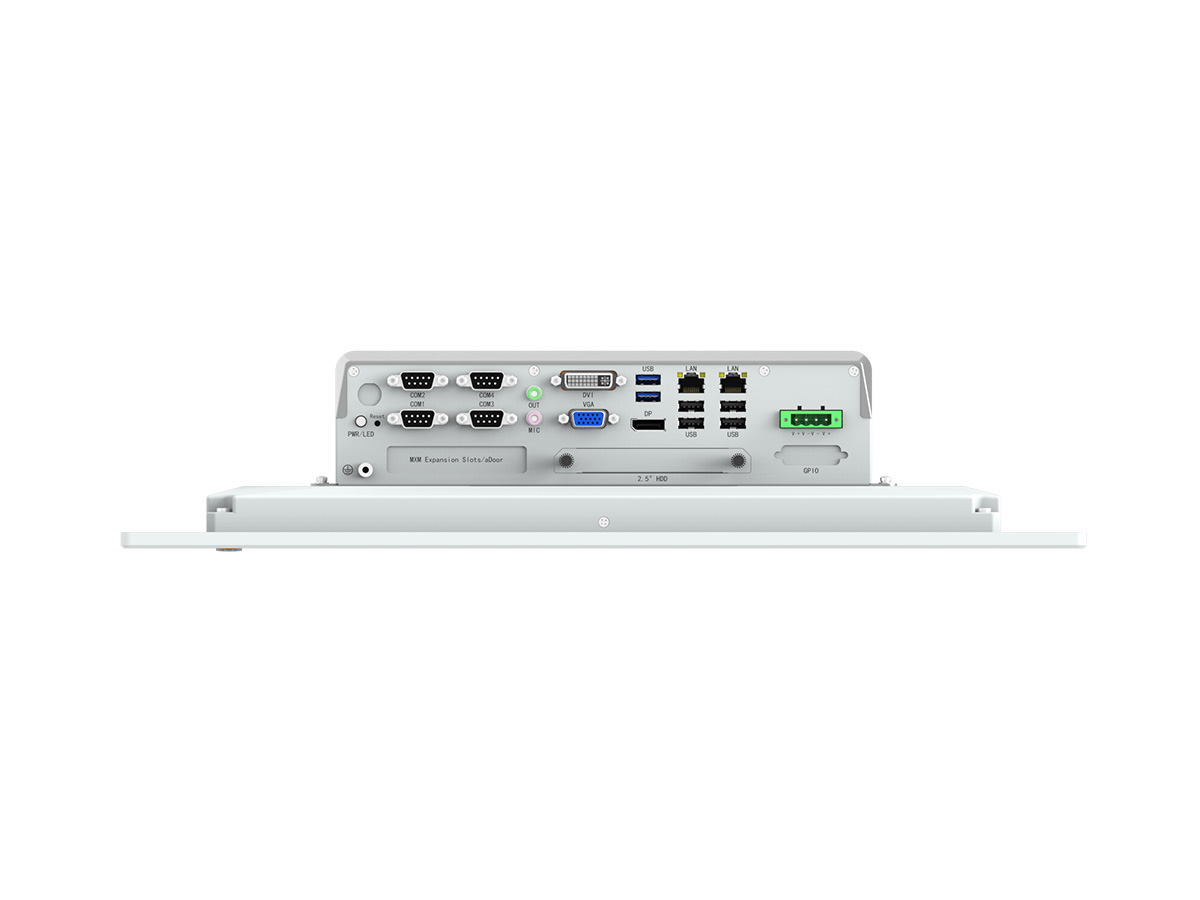

Front I/O Ethernet 2 * RJ45
USB 2 * USB3.0 (Type-A, 5Gbps)
4 * USB2.0 (Type-A)
Display 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz
1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz
1 * DP: max resolution up to 4096*2160 @ 60Hz
Audio 2 * 3.5mm Jack (Line-Out + MIC)
Serial 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch)
2 * RS232 (COM3/4, DB9/M)
Button 1 * Power Button + Power LED
1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O Antenna 4 * Antenna hole
SIM 1 * Nano SIM card slot (SIM1)
Internal I/O USB 2 * USB2.0 (wafer)
LCD 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
TFront Panel 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
Front Panel 1 * Front Panel (PWR + RST + LED, wafer)
Speaker 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
Serial 2 * RS232 (COM5/6, wafer)
GPIO 1 * 16 bits DIO (8xDI and 8xDO, wafer)
LPC 1 * LPC (wafer)
SATA 2 * SATA 7P Connector
SATA Power 2 * SATA Power (SATA_PWR1/2, wafer)
FAN 1 * CPU FAN (wafer)
2 * SYS FAN (wafer)
Power Supply Type DC, AT/ATX
Power Input Voltage 9 ~ 36VDC, P≤240W
Connector 1 * 4Pin Connector, P=5.00/5.08
RTC Battery CR2032 Coin Cell
OS Support Windows Windows 7/10/11
Linux Linux
Watchdog Output System Reset
Interval Programmable via Software from 1 to 255 sec
Mechanical Enclosure Material Radiator/Panel: Aluminum, Box/Cover: SGCC
Mounting Rack-mount, VESA
Dimensions 482.6mm(L) * 354.8mm(W) * 98.7mm(H) 482.6mm(L) * 354.8mm(W) * 97.7mm(H)
Weight Net: 8.7kg, Total:11.7kg Net: 9.kg, Total: 13.1kg
Environment Heat Dissipation System Passive heat dissipation
Operating Temperature 0~50℃ 0~50℃
Storage Temperature -20~60℃ -20~60℃
Relative Humidity 10 to 95% RH (non-condensing)
Vibration During Operation With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
Shock During Operation With SSD: IEC 60068-2-27 (15G, half sine, 11ms)

PGxxxRF-E7L-20240106_00
