产品描述
阿普奇Mini-ITX主板MIT-H81是一款功能齐全、扩展性高的主板，专为满足各种应用需求而设计。支持Intel® 4/5th Gen Core/Pentium/Celeron处理器，能够提供高效的处理能力。采用Intel® H81芯片组，确保了卓越的稳定性和兼容性。主板配备两个DDR3-1600MHz内存插槽，最高支持16GB内存，为多任务操作提供了充足的内存资源。板载5个Intel千兆网卡，可选配4个PoE接口，确保高速、稳定的网络传输。默认配备2个RS232/422/485和4个RS232串口，方便连接各种设备。提供2个USB3.0和6个USB2.0接口，满足各种设备连接需求。主板还拥有HDMI、DP和eDP显示接口，支持多种显示器连接，最高支持4K@24Hz分辨率。此外，还拥有一个PCIe x16插槽，方便扩展各种PCI/PCIe设备。
总之，阿普奇Mini-ITX主板MIT-H81是一款适用于多种应用场景的高性能主板，具备强大的处理器支持、高速内存和网络连接、丰富的扩展插槽和卓越的扩展性能。无论是在工业控制、自动化设备还是其他专业应用中，它都能提供稳定、高效的支持。

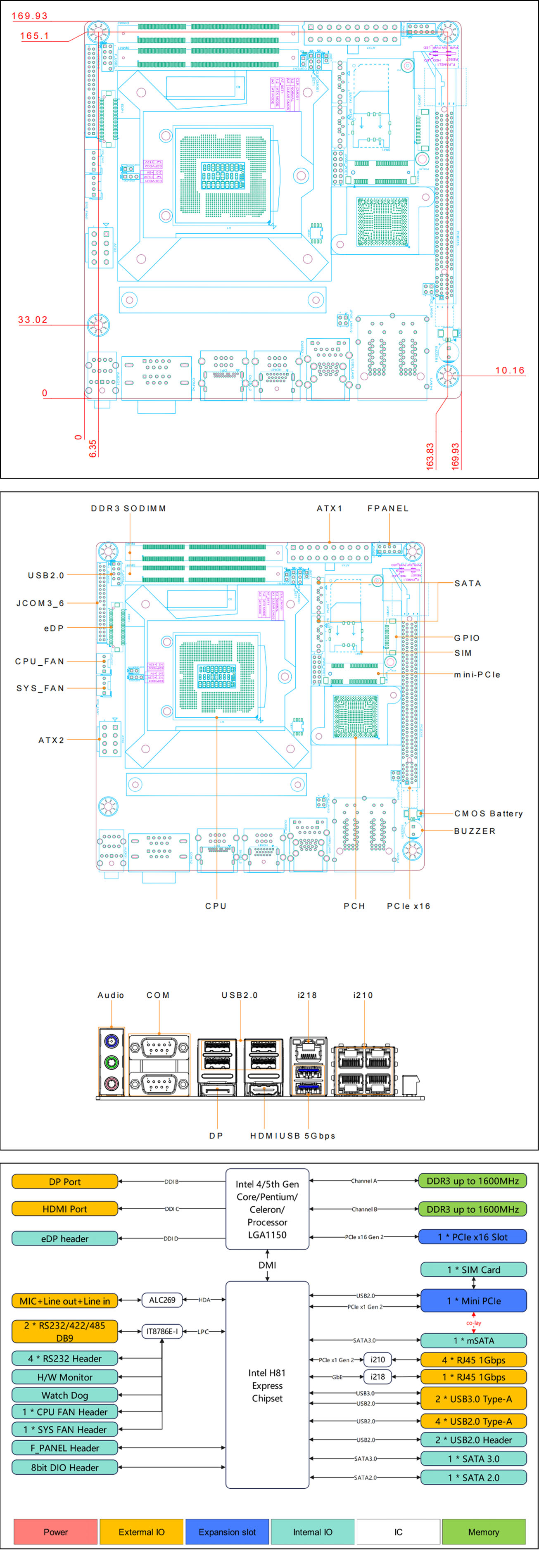

| Model | MIT-H81 | |
| ProcessorSystem | CPU | Support Intel® 4/5th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 95W | |
| Socket | LGA1150 | |
| Chipset | H81 | |
| BIOS | AMI 256 Mbit SPI | |
| Memory | Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz |
| Capacity | 16GB, Single Max. 8GB | |
| Graphics | Controller | Intel® HD Graphics |
| Ethernet | Controller | 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps) |
| Storage | SATA | 1 * SATA3.0 7P Connector, up to 600MB/s1 * SATA2.0 7P Connector, up to 300MB/s |
| mSATA | 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
| Expansion Slots | PCIe slot | 1 * PCIe x16 slot (Gen 2, x16 signal) |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with mSATA, Opt.) | |
| Rear I/O | Ethernet | 5 * RJ45 |
| USB | 2 * USB3.0 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A)4 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) | |
| Display | 1 * DP: max resolution up to 3840*2160 @ 60Hz1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz | |
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Internal I/O | USB | 2 * USB2.0 (Header) |
| Display | 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 1 * SATA3.0 7P Connector1 * SATA2.0 7P Connector | |
| FAN | 1 * CPU FAN (Header)1 * SYS FAN (Header) | |
| Front Panel | 1 * Front Panel (Header) | |
| Power Supply | Type | ATX |
| Connector | 1 * 8P 12V Power (Header)1 * 24P Power (Header) | |
| OS Support | Windows | Windows 7/10/11 |
| Linux | Linux | |
| Watchdog | Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |

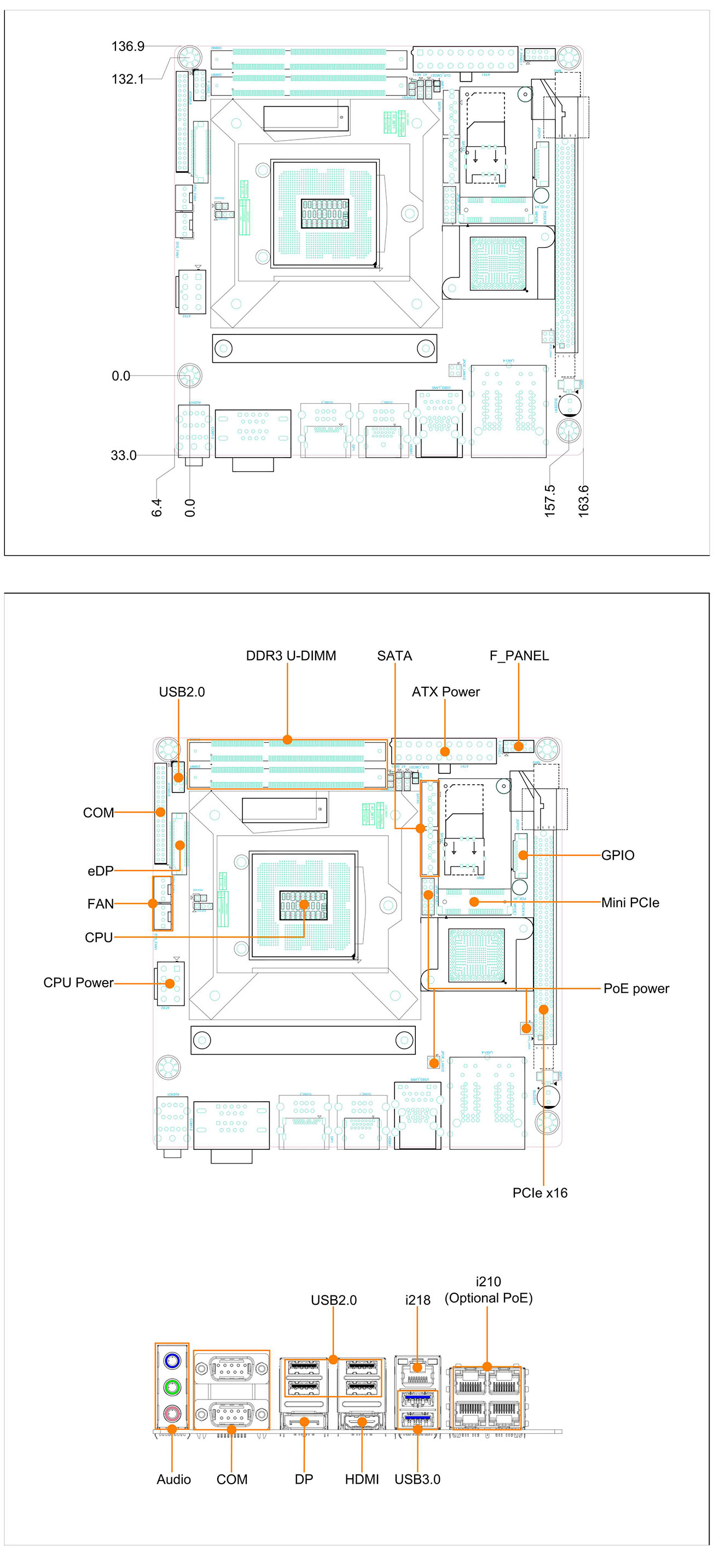

| Mechanical | Dimensions | 170 x 170 mm (6.7" x 6.7") |
| Environment | Operating Temperature | -20 ~ 60℃ (Industrial SSD) |
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
