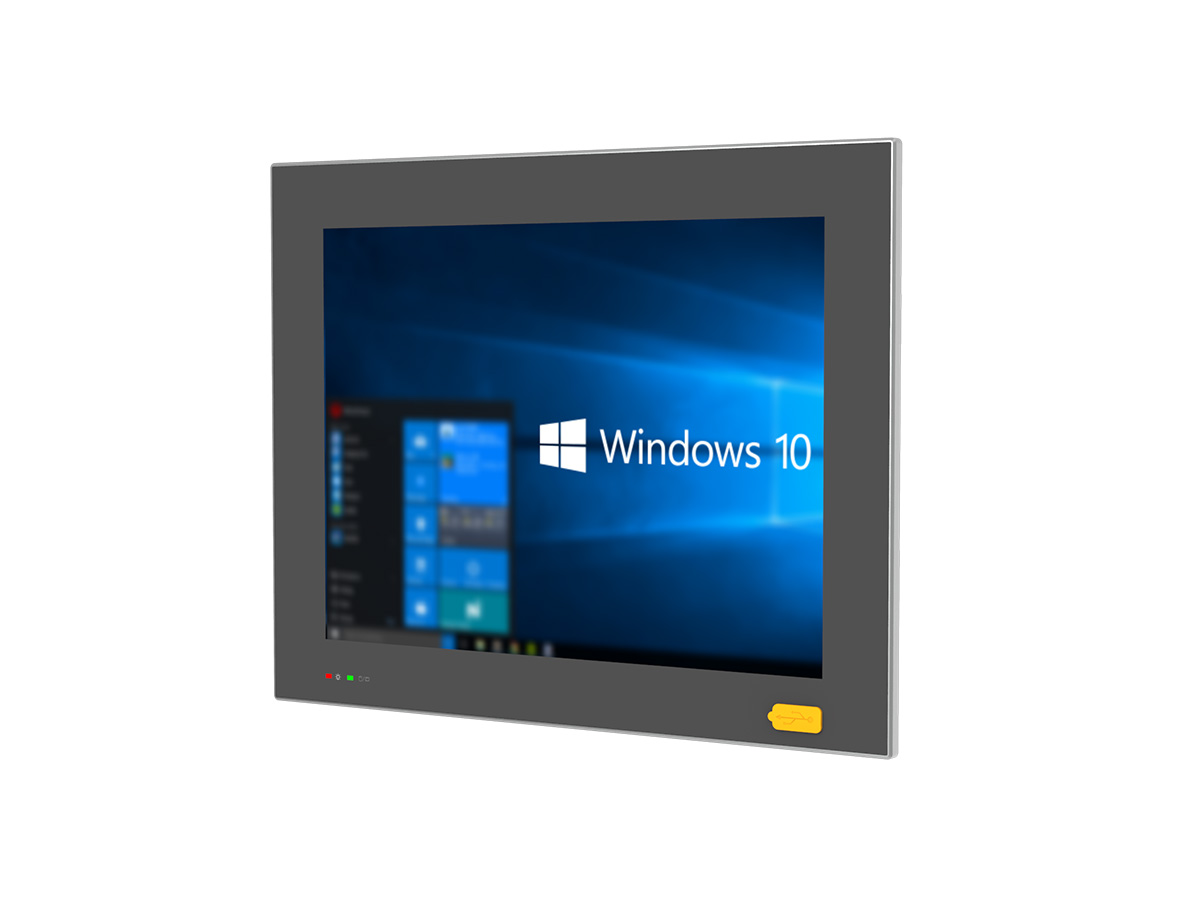

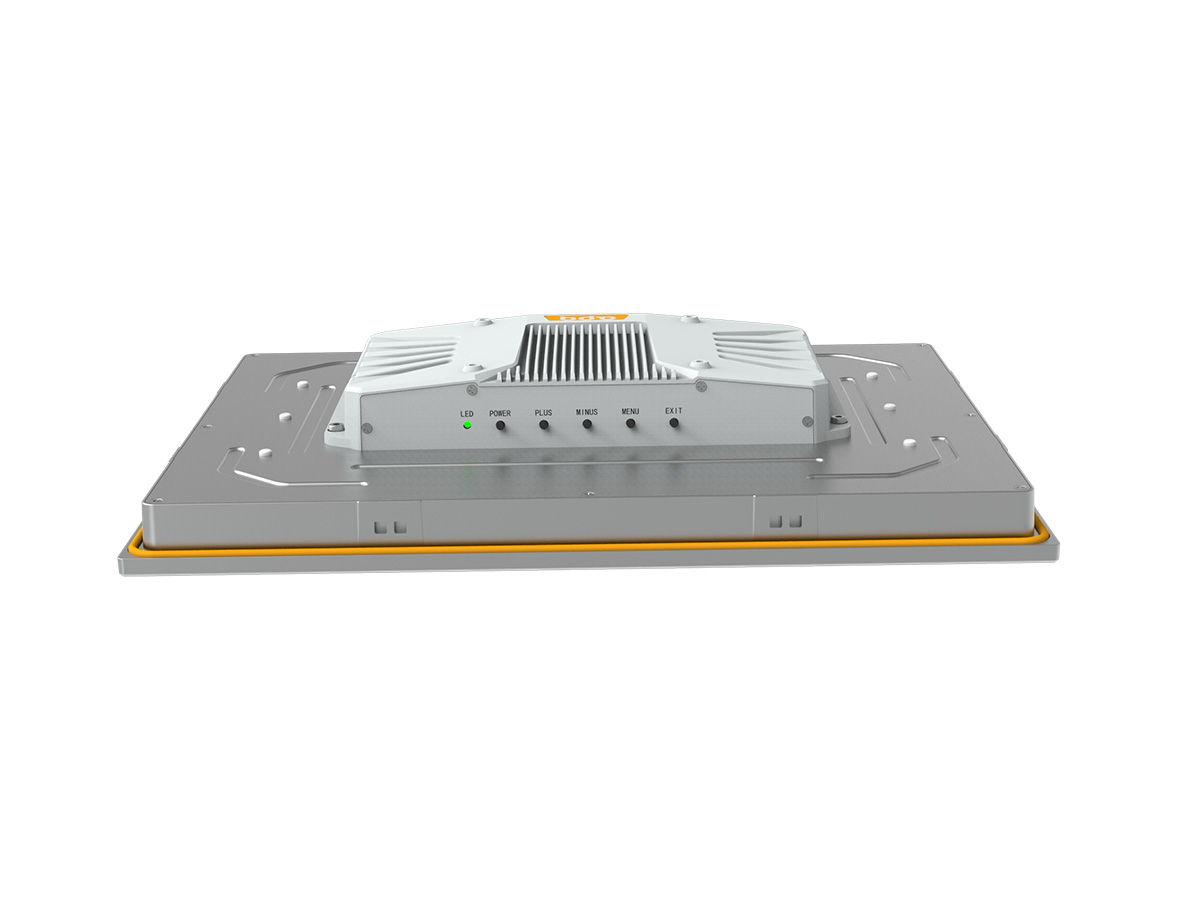

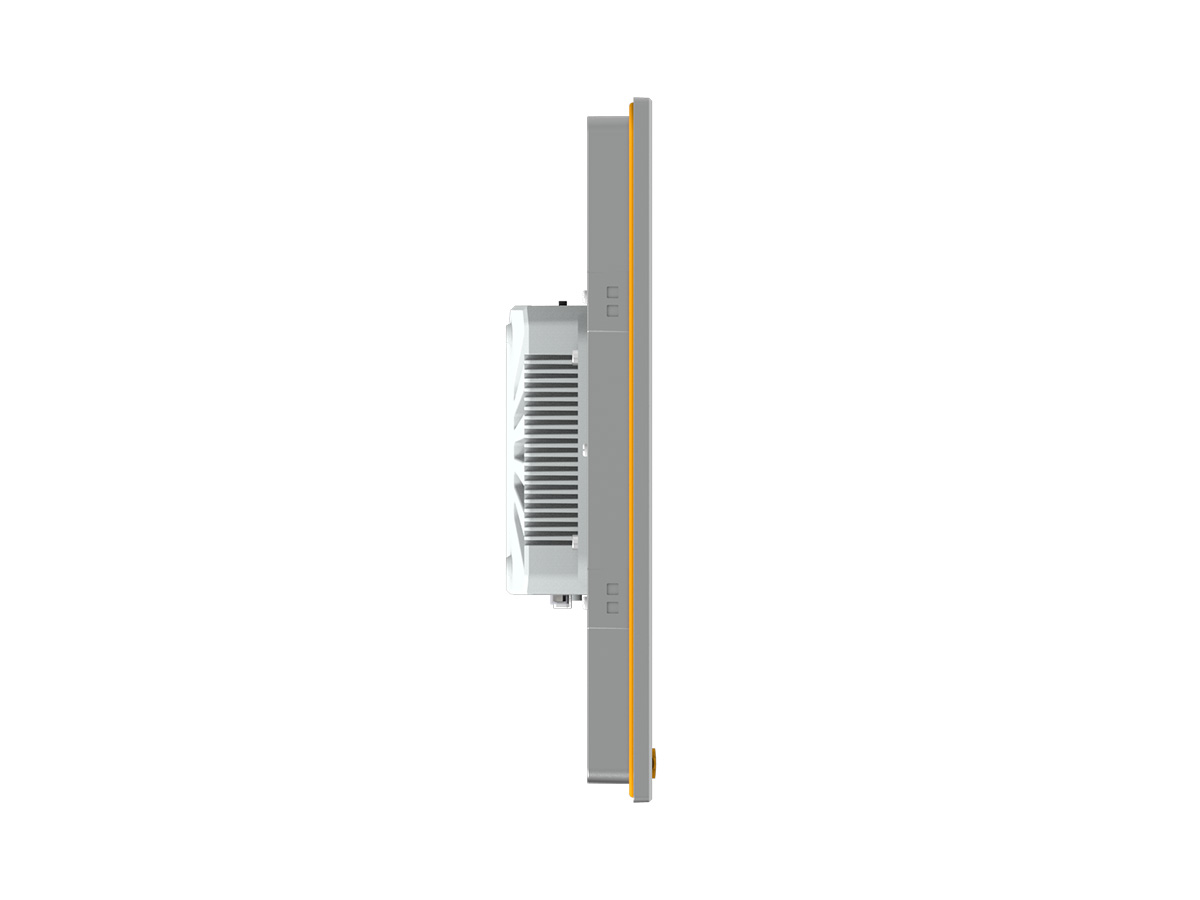

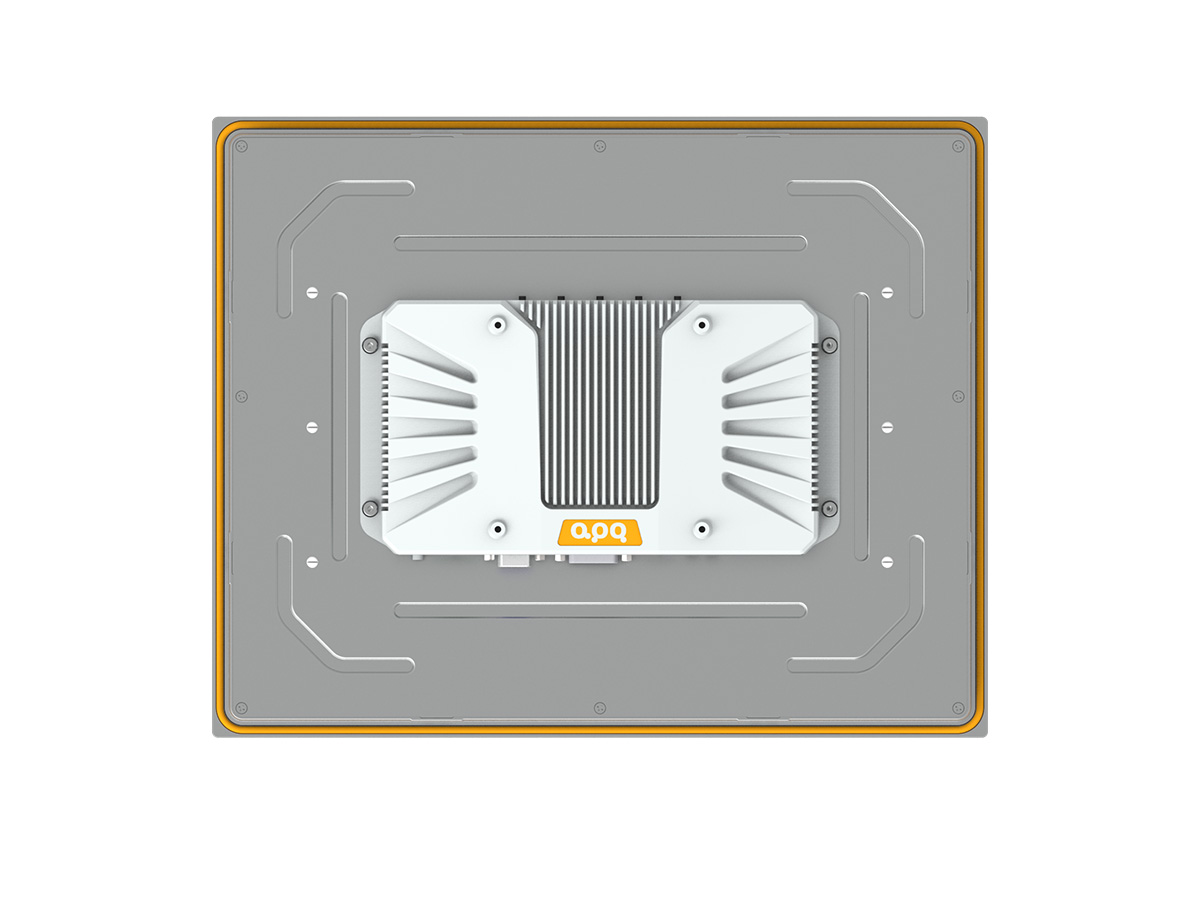

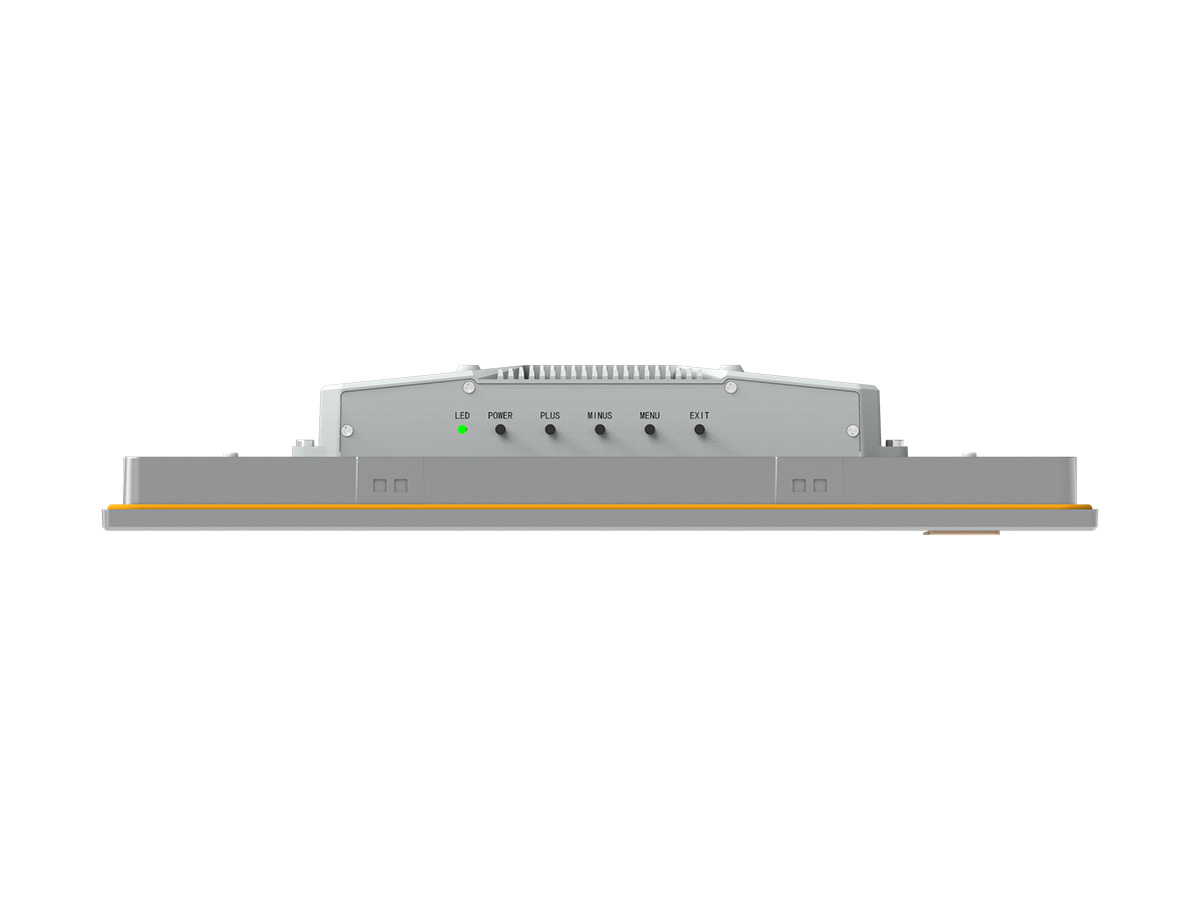

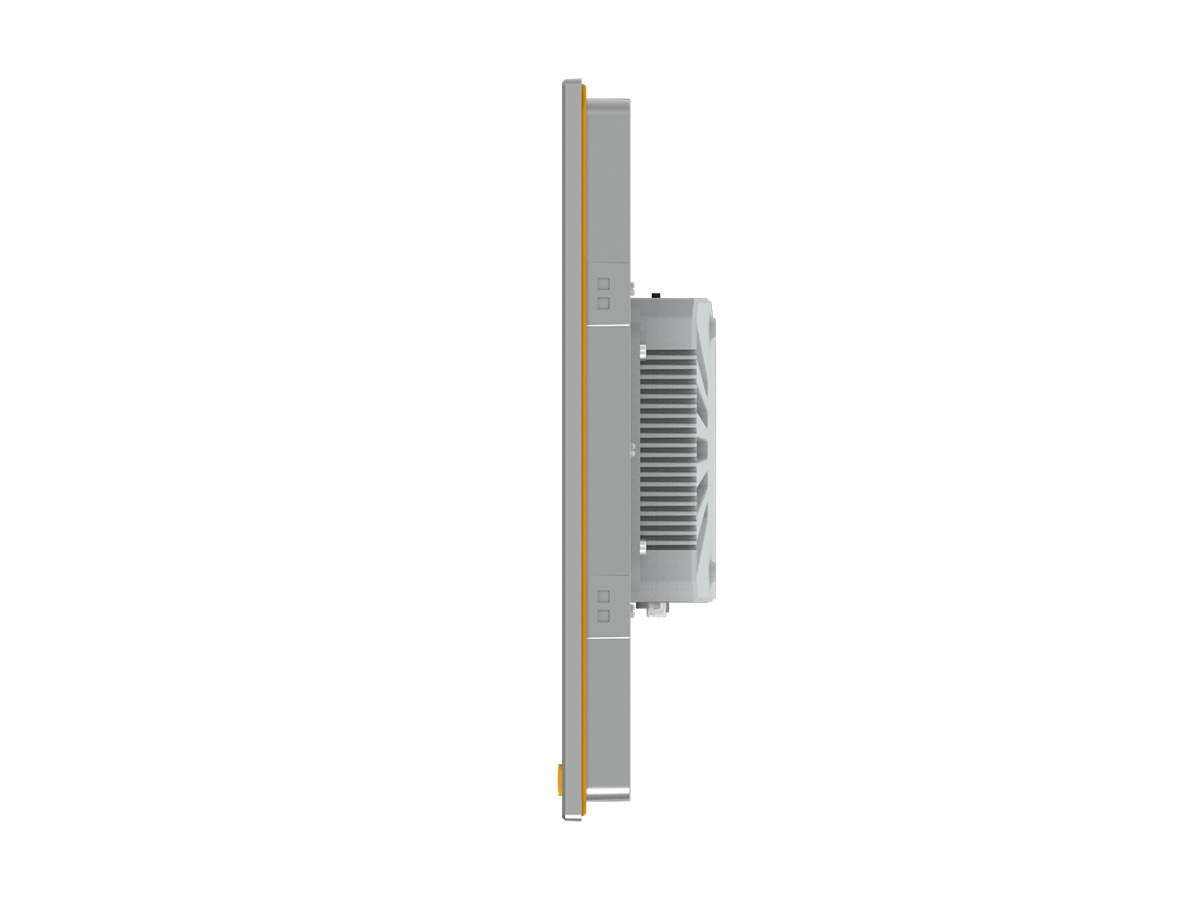

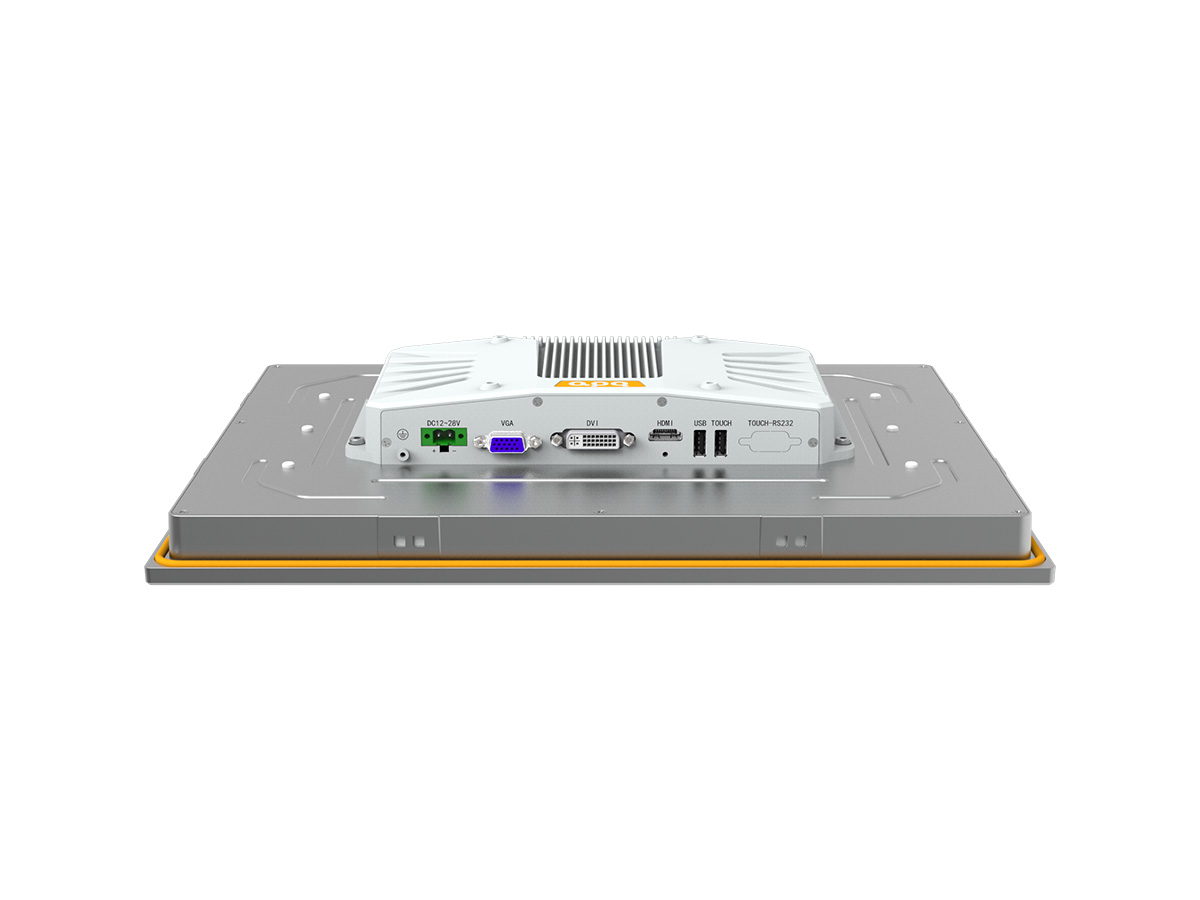

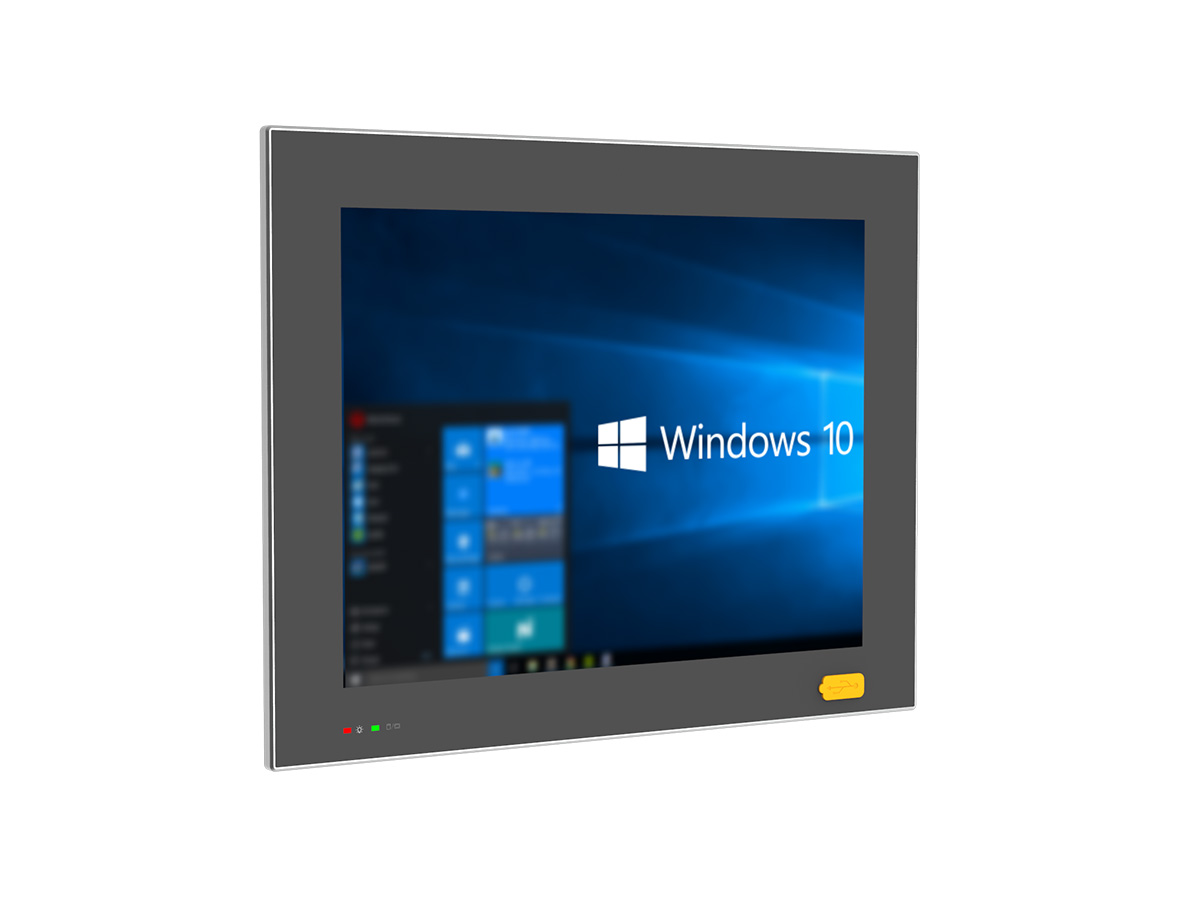

Note: The product image shown above shows the L150RQ model
L系列 工业显示器 电阻触摸屏
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
产品描述
阿普奇全屏电阻触摸屏工业显示器L系列专为工业应用打造，采用全面屏设计，结合铝合金模具压铸成型，确保了坚固与轻盈的完美结合，适应各种工业环境。其前面板达到IP65标准，有效抵御水滴和尘土的侵袭，满足高标准的防护需求。提供10.1英寸至21.5英寸的模块化设计，用户可根据实际需求灵活选择。同时，方屏与宽屏的选项使这款显示器更具通用性，满足不同行业的需求。USB Type-A和信号指示灯集成于前面板，实现数据传输与状态监控的便捷操作。采用全浮地液晶屏设计，结合防尘抗震技术，显著提升了稳定性与可靠性。无论是嵌入式还是VESA安装方式，都能轻松实现，展现出安装的灵活性。12~28V直流供电确保低功耗和环保特性。综上所述，阿普奇全屏电阻触摸屏工业显示器L系列是您的工业应用的理想之选。
| General | Touch | ||
| ● I/0 Ports | HDMI, DVI-D, VGA, USB for touch, USB for front panel | ● Touch Type | Five-wire analog resistive |
| ● Power Input | 2Pin 5.08 phoenix jack (12~28V) | ● Controller | USB signal |
| ● Enclosure | Panel: Die cast magnesium alloy, Cover: SGCC | ● Input | Finger/Touch pen |
| ● Mount Option | VESA, embedded | ● Light Transmission | ≥78% |
| ● Relative Humidity | 10 to 95% RH (non-condensing) | ● Hardness | ≥3H |
| ● Vibration During Operation | IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ● Click lifetime | 100gf, 10 million times |
| ● Shock During Operation | IEC 60068-2-27 (15G, half sine, 11ms) | ● Stroke lifetime | 100gf, 1 million times |
| ● Certification | CE/FCC, RoHS | ● Response time | ≤15ms |
| Model | L101RQ | L104RQ | L121RQ | L150RQ | L156RQ | L170RQ | L185RQ | L191RQ | L215RQ |
| Display Size | 10.1" | 10.4" | 12.1" | 15.0" | 15.6" | 17.0" | 18.5" | 19.0" | 21.5" |
| Display Type | WXGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | XGA TFT-LCD | FHD TFT-LCD | SXGA TFT-LCD | WXGA TFT-LCD | WXGA TFT-LCD | FHD TFT-LCD |
| Max. Resolution | 1280 x 800 | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1920 x 1080 | 1280 x 1024 | 1366 x 768 | 1440 x 900 | 1920 x 1080 |
| Luminance | 400 cd/m2 | 350 cd/m2 | 350 cd/m2 | 300 cd/m2 | 350 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 | 250 cd/m2 |
| Aspect Ratio | 16:10 | 4:3 | 4:3 | 4:3 | 16:9 | 5:4 | 16:9 | 16:10 | 16:9 |
| Viewing Angle | 89/89/89/89 | 88/88/88/88 | 80/80/80/80 | 88/88/88/88 | 89/89/89/89 | 85/85/80/80 | 89/89/89/89 | 85/85/80/80 | 89/89/89/89 |
| Max. Color | 16.7M | 16.2M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Backlight Lifetime | 20,000 hrs | 50,000 hrs | 30,000 hrs | 70,000 hrs | 50,000 hrs | 30,000 hrs | 30,000 hrs | 30,000 hrs | 50,000 hrs |
| Contrast Ratio | 800:1 | 1000:1 | 800:1 | 2000:1 | 800:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Operating Temperature | -20~60℃ | -20~70℃ | -20~70℃ | -20~70℃ | -20~70℃ | 0~50℃ | 0~50℃ | 0~50℃ | 0~60℃ |
| Storage Temperature | -20~60℃ | -20~70℃ | -30~80℃ | -30~70℃ | -30~70℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Weight | Net:2.1 kg,
Total:4.3 kg |
Net:2.5kg,
Total:4.7 kg |
Net:2.9kg,
Total:5.3 kg |
Net:4.3kg,
Total:6.8 kg |
Net:4.5kg,
Total:6.9kg |
Net:5kg,
Total:7.6 kg |
Net:5.1kg,
Total:8.2 kg |
Net:5.5kg,
Total:8.3 kg |
Net:5.8kg,
Total:8.8 kg |

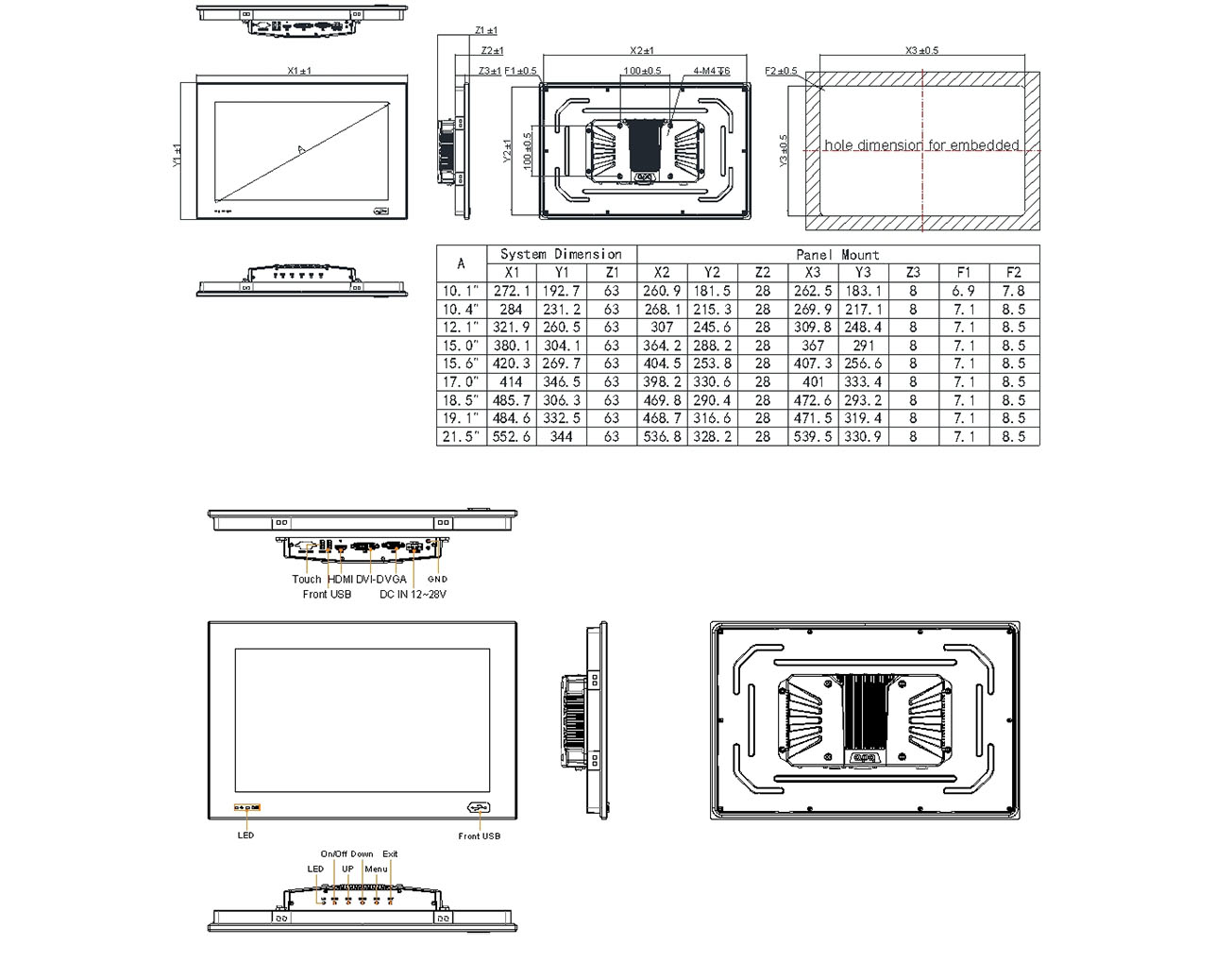

| Dimensions
(L*W*H,Unit:mm) |
272.1*192.7*63 | 284*231.2*63 | 321.9*260.5*63 | 380.1*304.1*63 | 420.3*269.7*63 | 414*346.5*63 | 485.7*306.3*63 | 484.6*332.5*63 | 550*344*63 |
-
