产品描述

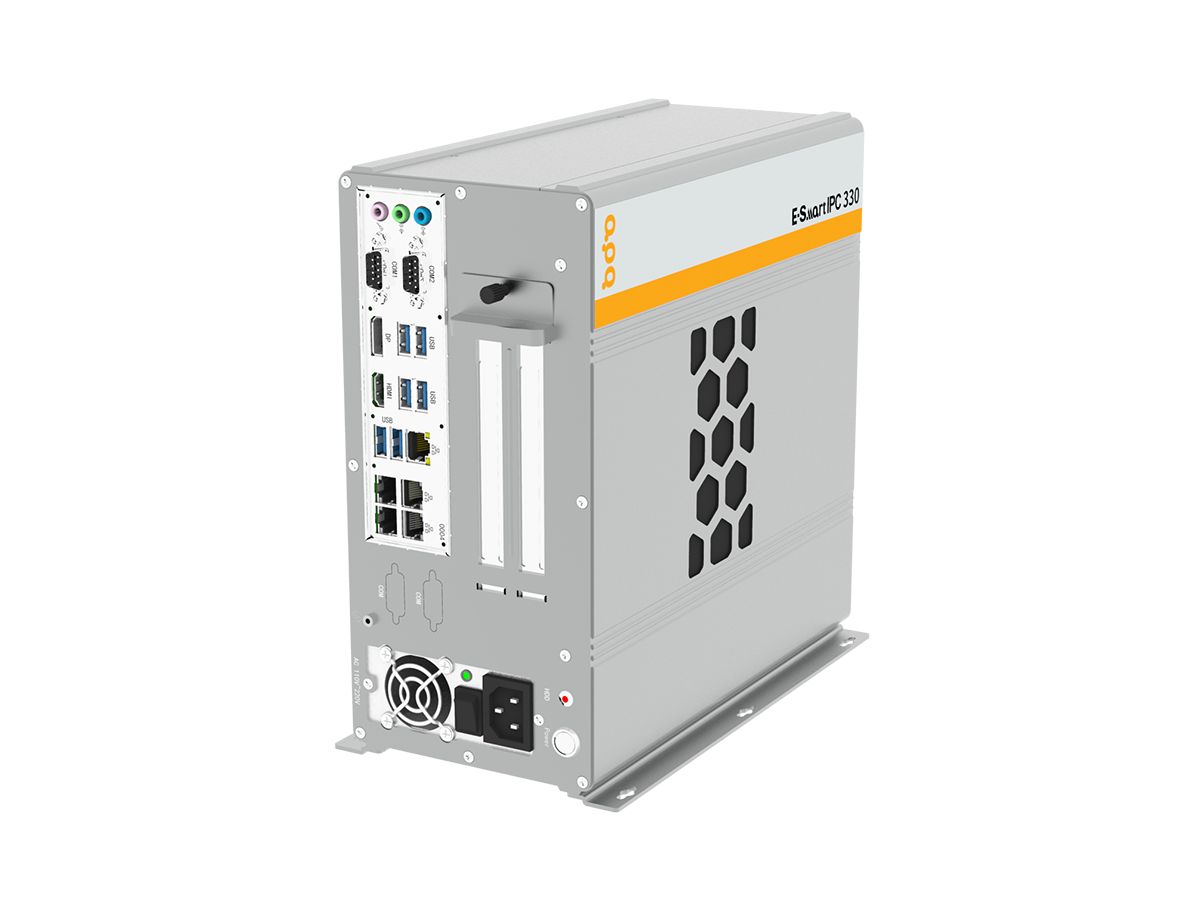

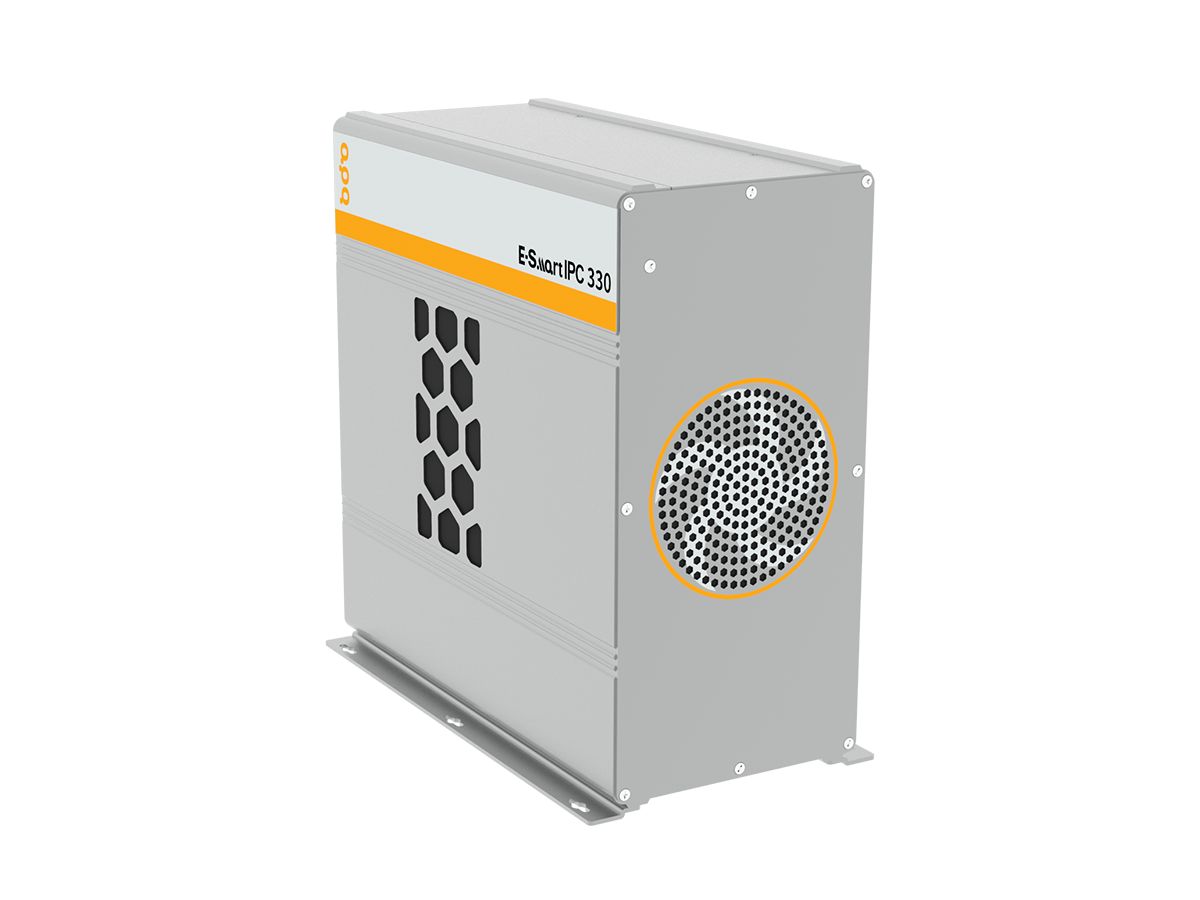

阿普奇壁挂式工控机IPC330D-H31CL5是一款性能卓越的工业电脑，专为各种工业场景设计。其稳定可靠的性能得益于采用铝合金模具成型，确保了出色的散热效果和结构强度。这款工控机支持英特尔第6至9代Core/Pentium/Celeron桌面CPU，具备强大的数据处理能力，能够快速应对各种边缘计算任务。同时，它可安装标准ITX主板并支持标准1U电源，降低能耗，进一步提升了能效比。在扩展性方面，IPC330D-H31CL5可选的适配器卡支持2个PCI或1个PCIe X16扩展，满足用户对扩展的需求。此外，该款工控机默认配备的2.5英寸7mm防震硬盘插槽设计，能够更好地保护硬盘的安全性，确保数据存储的可靠性。前面板开关设计以及电源和存储状态显示，使得系统维护更加便捷。支持多方位壁挂和桌面安装，为用户提供更多的选择，满足各种工业应用的需求。
综上所述，阿普奇壁挂式工控机IPC330D-H31CL5凭借其卓越的性能、稳定可靠的结构、强大的扩展能力和数据安全保护等特点，适用于工业自动化控制、智能交通、数字医疗、智能电网等领域。
|
Model |
IPC330D-H31CL5 |
|
|
Processor System |
CPU | Support Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | H310C | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2666MHz |
| Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel® UHD Graphics |
|
Ethernet |
Controller | 4 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps, with PoE Power socket) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | 2 * SATA3.0 7P Connector, up to 600MB/s |
| mSATA | 1 * mSATA (SATA3.0, Share slot with Mini PCIe, default) | |
|
Expansion Slots |
PCIe | 1 * PCIe x16 slot (Gen 3, x16 signal) |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB2.0, with 1 * SIM Card, Share slot with Msat, Opt.) | |
|

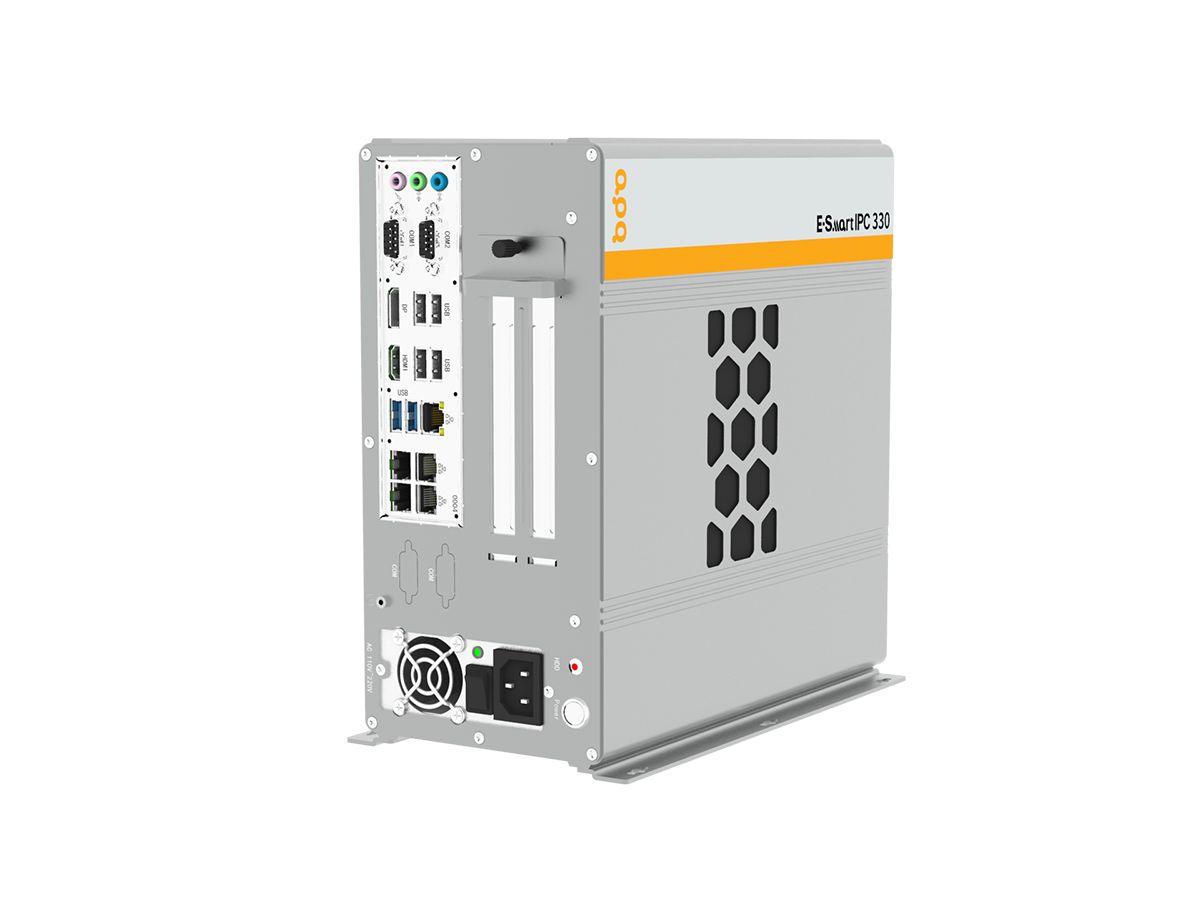

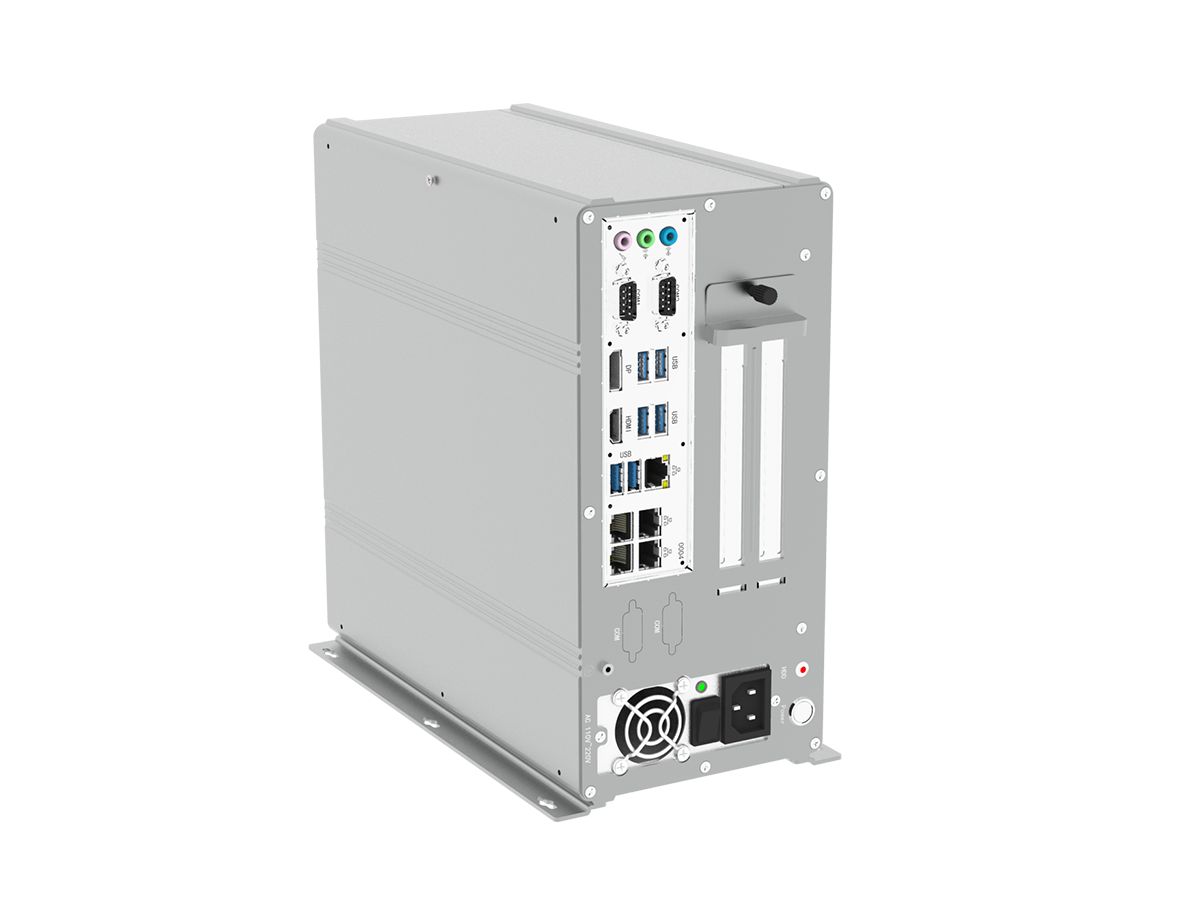

Front I/O |
Ethernet | 5 * RJ45 |
| USB | 4 * USB3.2 Gen 1x1 (Type-A, 5Gbps, Each group of two ports Max. 3A, one port Max. 2.5A) 2 * USB2.0 (Type-A, Each group of two ports Max. 3A, one port Max. 2.5A) |
|
| Display | 1 * DP: max resolution up to 3840*2160 @ 60Hz 1 * HDMI1.4: max resolution up to 2560*1440 @ 60Hz |
|
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED 1 * Hard drive status LED |
|
|
Internal I/O |
USB | 2 * USB2.0 (Header) |
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | |
| Serial | 4 * RS232 (COM3/4/5/6, Header) | |
| GPIO | 1 * 8 bits DIO (4xDI and 4xDO, wafer) | |
| SATA | 2* SATA 7P Connector | |
| FAN | 1 * CPU FAN (Header) 1 * SYS FAN (Header) |
|
| Front Panel | 1 * Front Panel (Header) | |
|
Power Supply |
Type | 1U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the IU FLEX power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core™: Windows 7/10/11 8/9th Core™: Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC+AI6061 |
| Dimensions | 266mm * 127mm * 268mm | |
| Mounting | Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| Operating Temperature | 0 ~ 60℃ | |
| Storage Temperature | -20 ~ 75℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
