E7L系列Q670平台嵌入式工控机/BOX

特点:

支持Intel® 12/13th Gen Core / Pentium/ Celeron Desktop CPU, TDP 35W, LGA1700
搭配Intel® Q670芯片组
2个Intel网络接口 (1 * 1GbE&1 * 2.5GbE)
3路显示输出 HDMI，DP++和内部LVDS, 最高支持4K@60Hz分辨率
丰富的USB、串口扩展接口和PCIe、mini PCIe、M.2扩展插槽
无风扇被动式散热

远程管理
状态监控
远程运维
安全控制

扫码即可添加微信，售前客服为您提供咨询服务

产品描述

阿普奇嵌入式工控机E7L系列Q670平台是一款功能强大的嵌入式工控机，专为工业自动化和边缘计算应用而设计。支持Intel® 12/13th Gen Core / Pentium/ Celeron Desktop CPU，这些处理器具有35W的TDP和LGA1700封装，提供出色的性能和能效。采用Intel® Q670芯片组，为系统提供稳定的硬件平台和丰富的扩展功能。配备2个Intel网络接口，包括1个1GbE和1个2.5GbE接口，确保高速稳定的网络连接。具有3路显示输出，包括HDMI、DP++和内部LVDS。最高支持4K@60Hz分辨率，满足高清晰度显示需求。提供丰富的USB、串口扩展接口，以及PCIe、mini PCIe、M.2扩展插槽，满足各种扩展需求。采用无风扇被动式散热设计，通过自然散热方式，确保系统在高负载下的稳定运行。

综上所述，阿普奇E7L系列Q670平台嵌入式工控机凭借出色的性能和丰富的功能，为工业自动化和边缘计算提供了强大支持。无论是在复杂的工业环境中，还是在边缘计算应用中，它都能满足各种需求，是工业领域的理想选择。

产品介绍

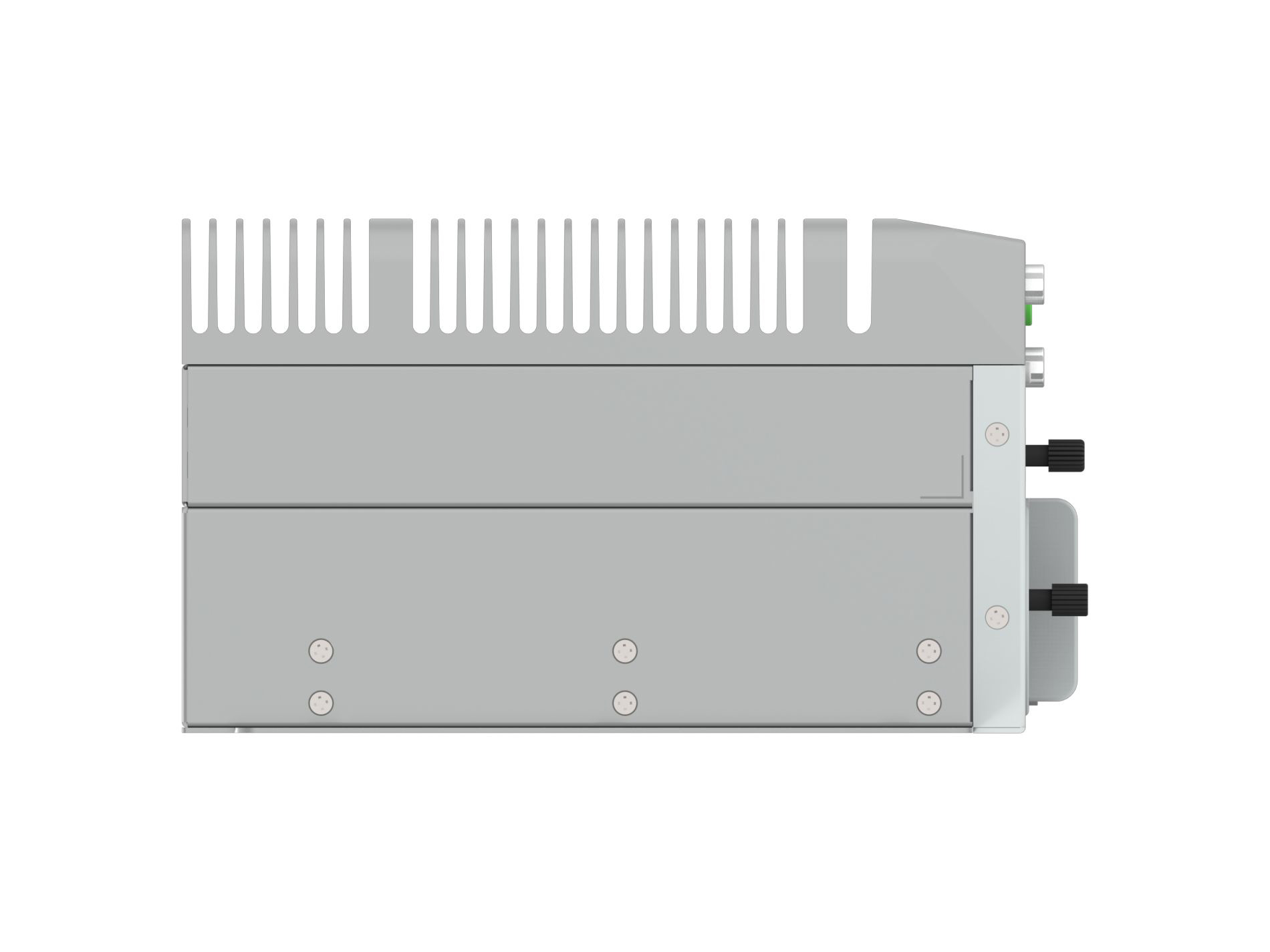

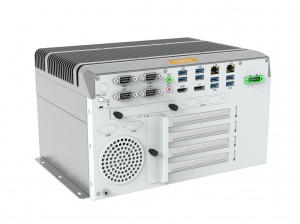

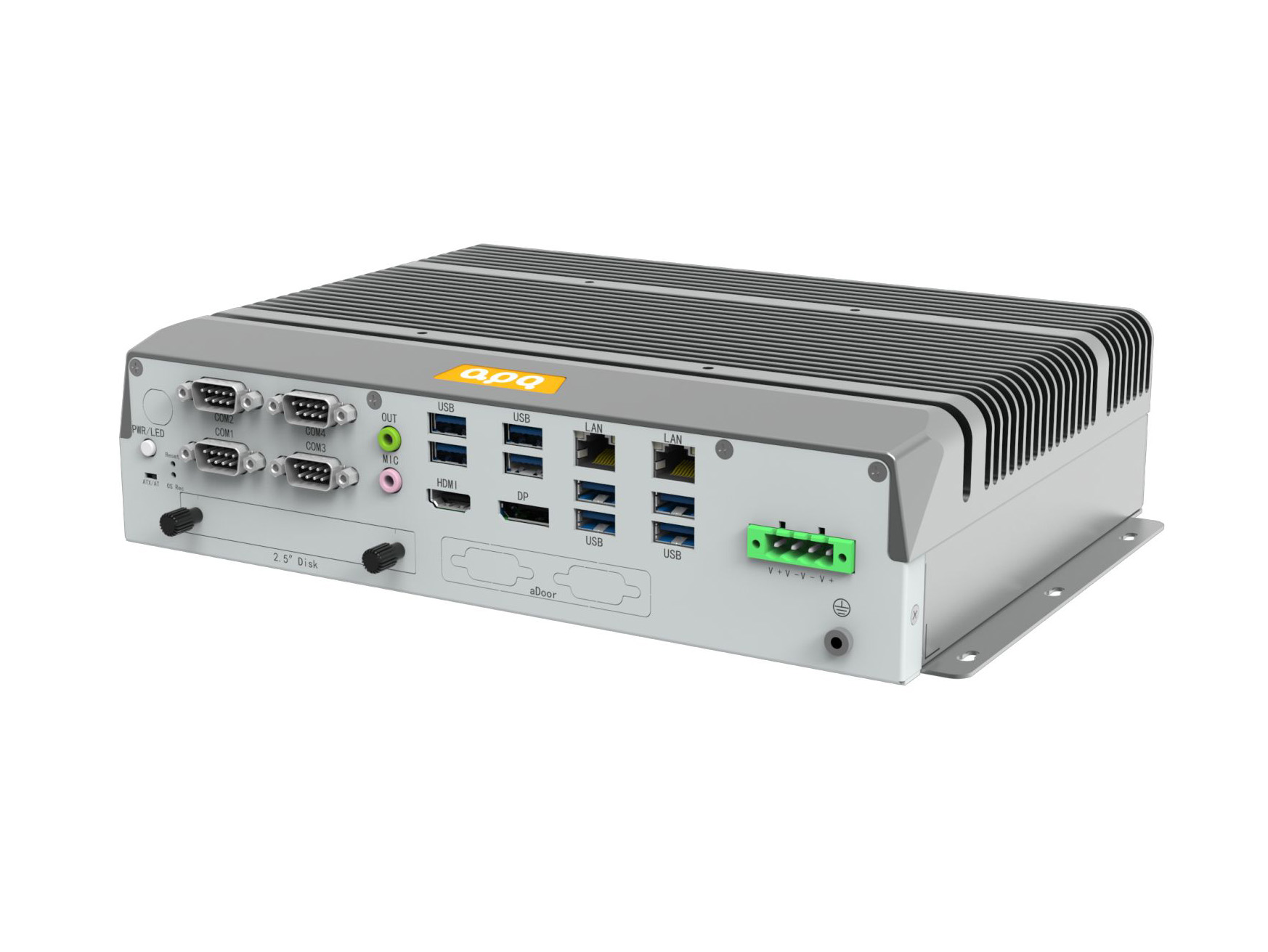

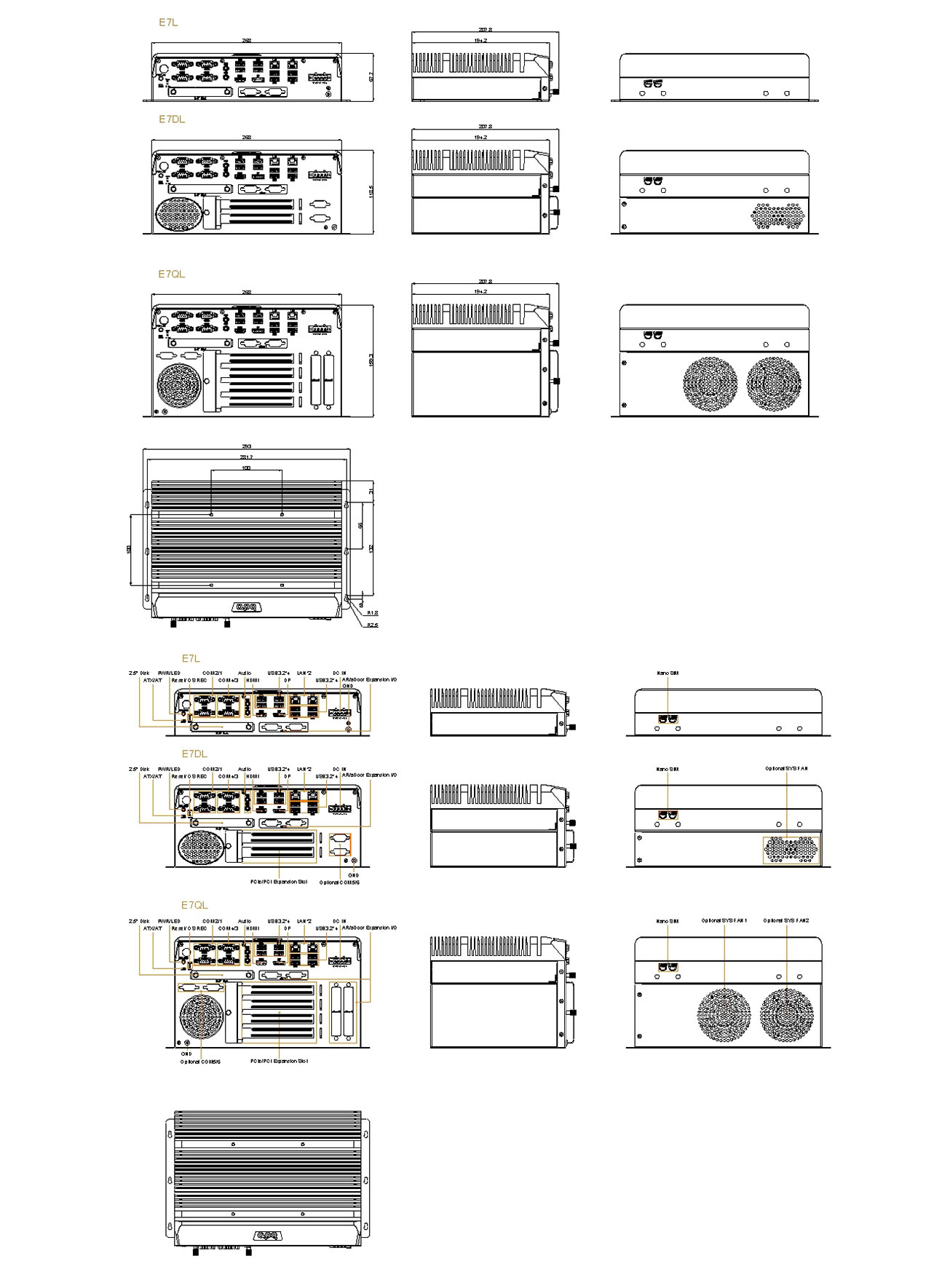

工程图纸

下载产品资料

扫码添加微信，获取最新产品资料文件

Model		E7L	E7DL	E7QL
CPU	CPU	Intel^® 12/13th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	35W
	Socket	LGA1700
	Chipset	Q670
	BIOS	AMI 256 Mbit SPI
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz
	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel^® UHD Graphics
Ethernet	Controller	1 * Intel i219-LM 1GbE LAN Chip (LAN1, 10/100/1000 Mbps, RJ45) 1 * Intel i225-V 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps, RJ45)
Storage	SATA	1 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1
	M.2	1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2280)
Expansion Slots	PCIe Slot	N/A	①: 1 * PCIe x16 (x16) + 1 * PCIe x4 (x4) ②: 1 * PCIe x16 + 1 * PCI ③: 2 * PCI PS: ①、②、③ One out of three, Expansion card length ≤ 185mm, TDP ≤ 130W	①: 2 * PCIe x16 (x8/x8) + 2 * PCI ②:1 * PCIe x16 (x16) + 1 * PCIe x4 (x4) PS: ①、② One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W
	aDoor	1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card)
	Mini PCIe	2 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card)
	M.2	1 * M.2 Key-E (PCIe x1 Gen 3 + USB 2.0, 2230)

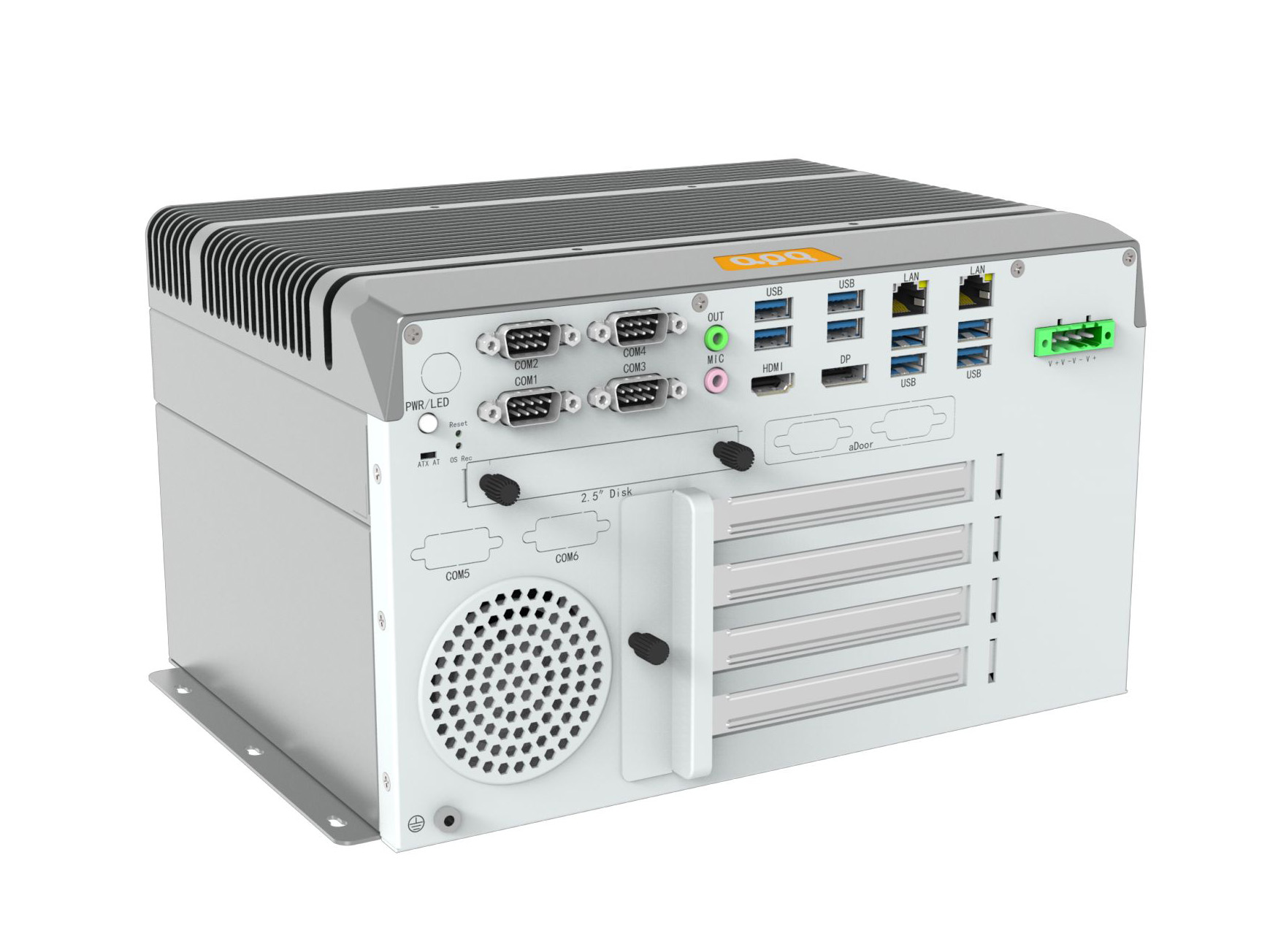

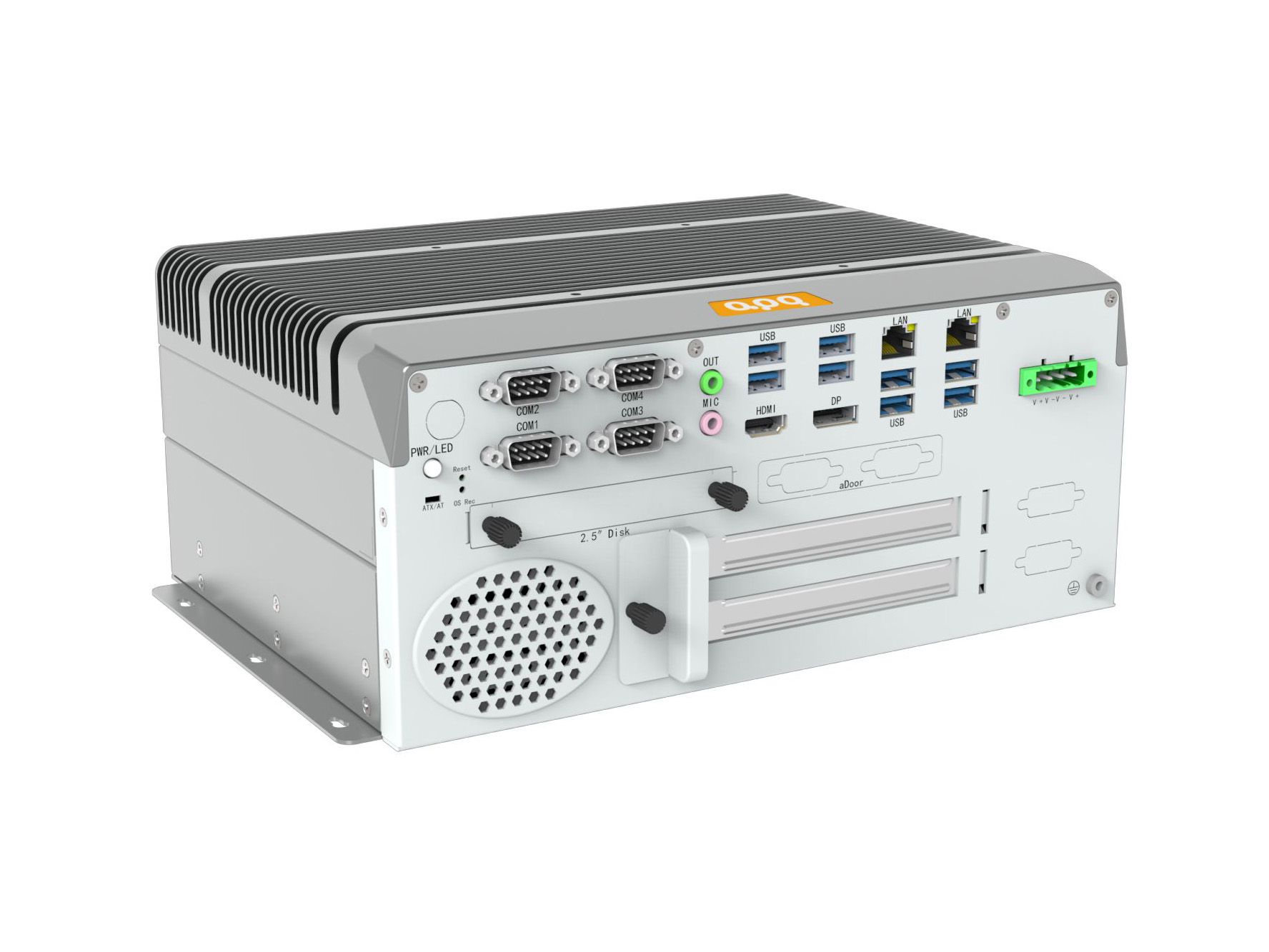

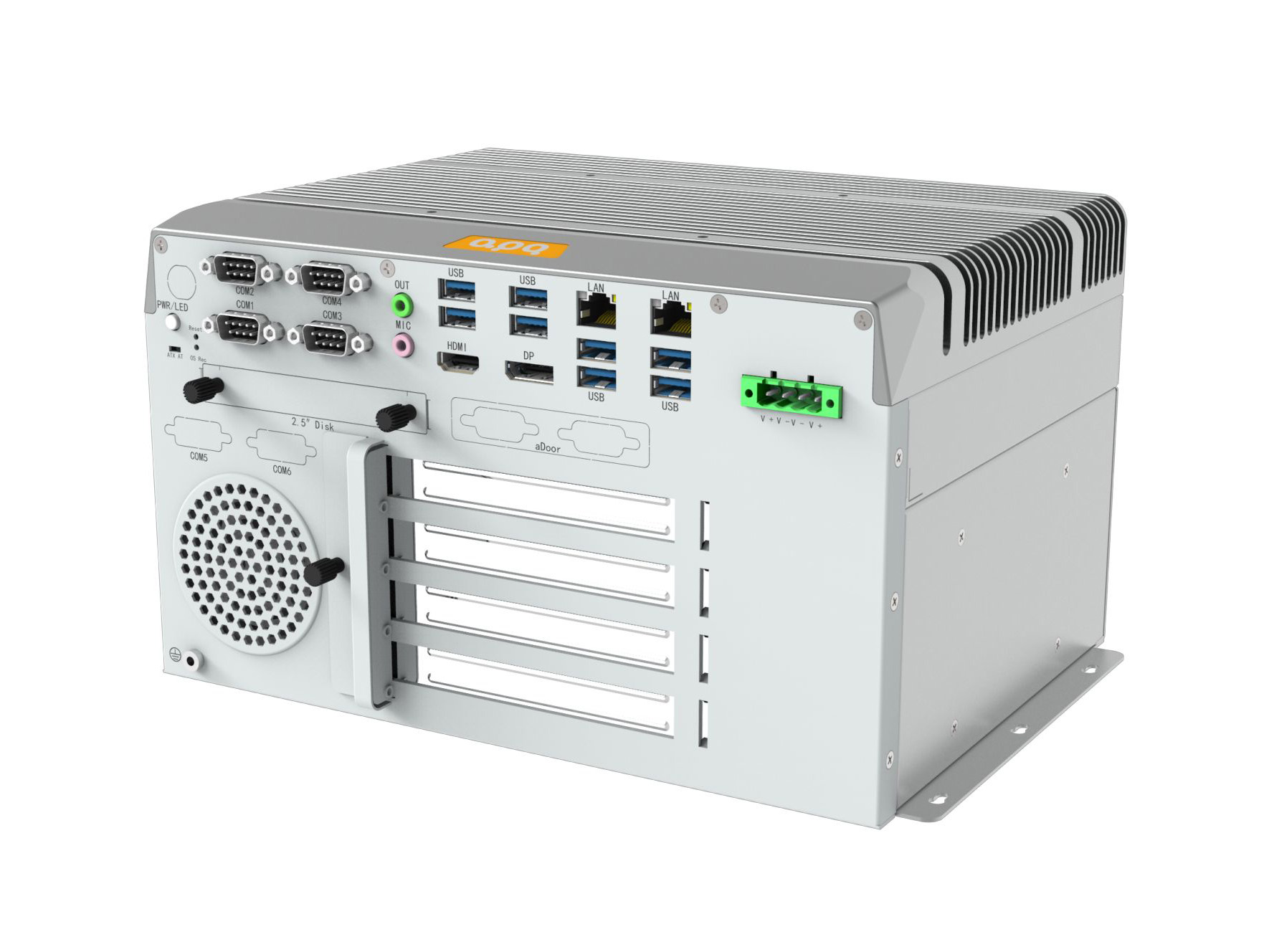

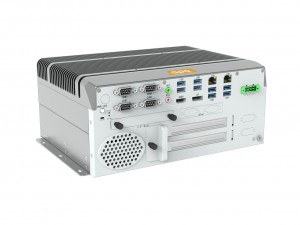

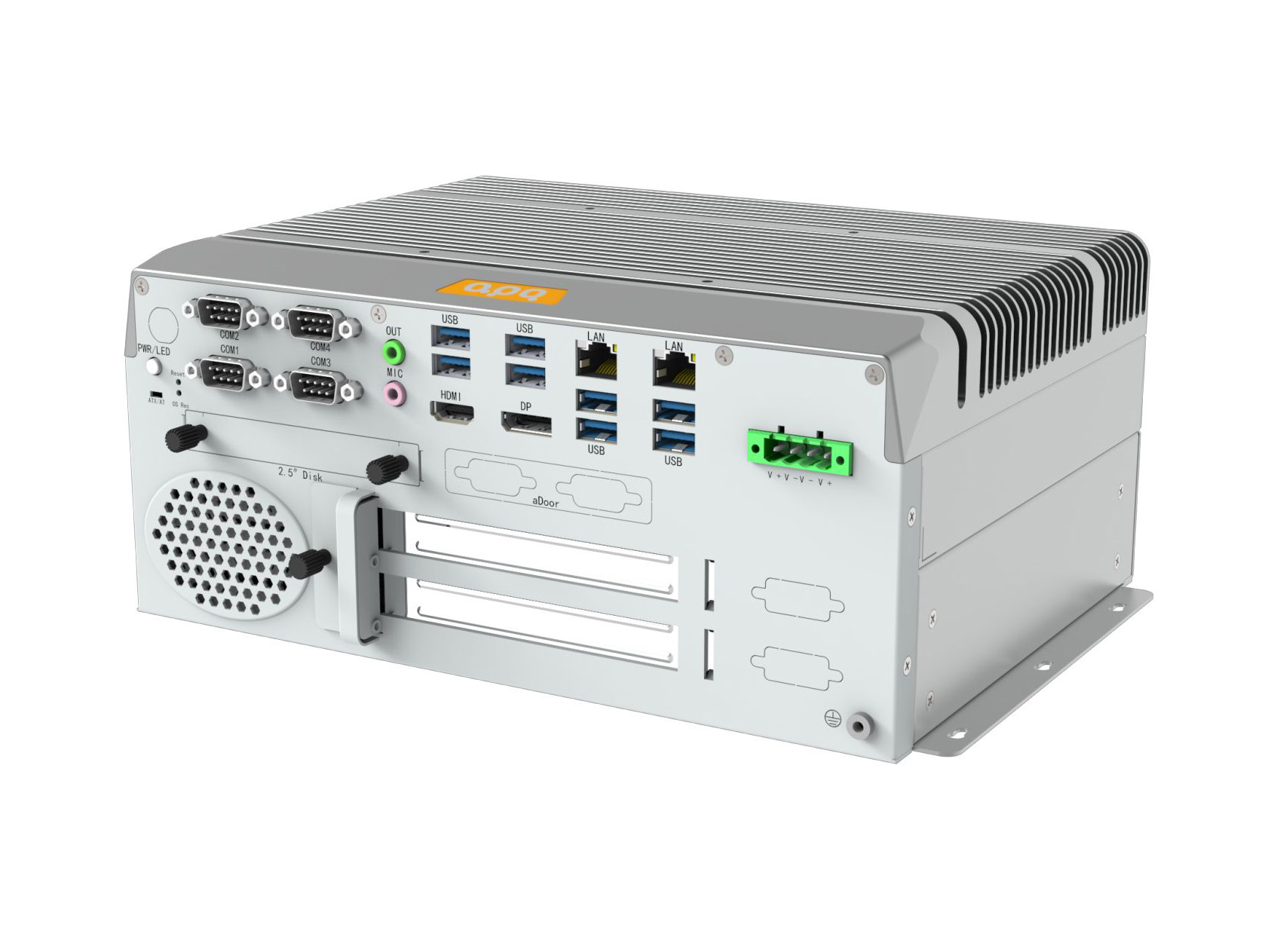

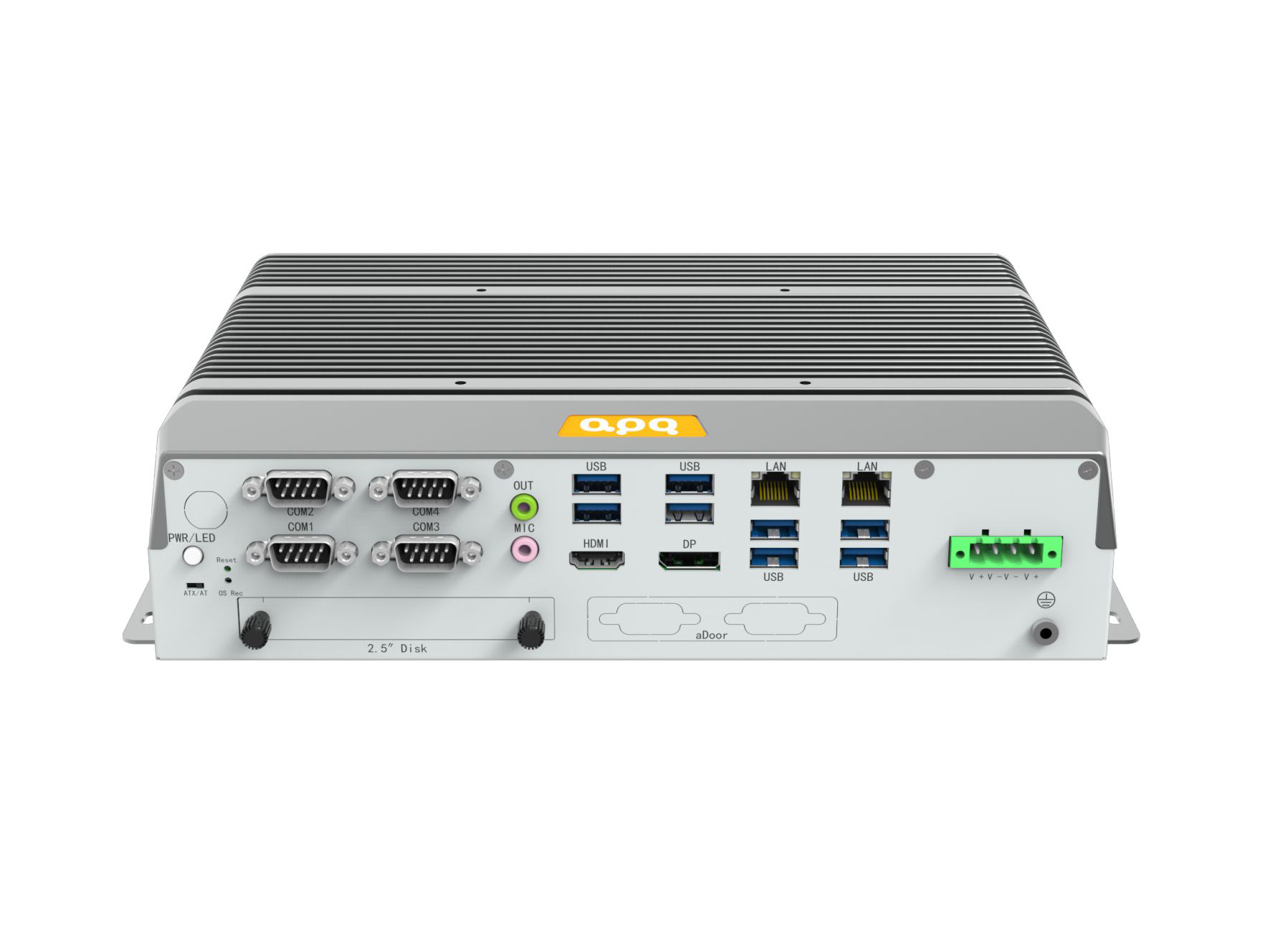

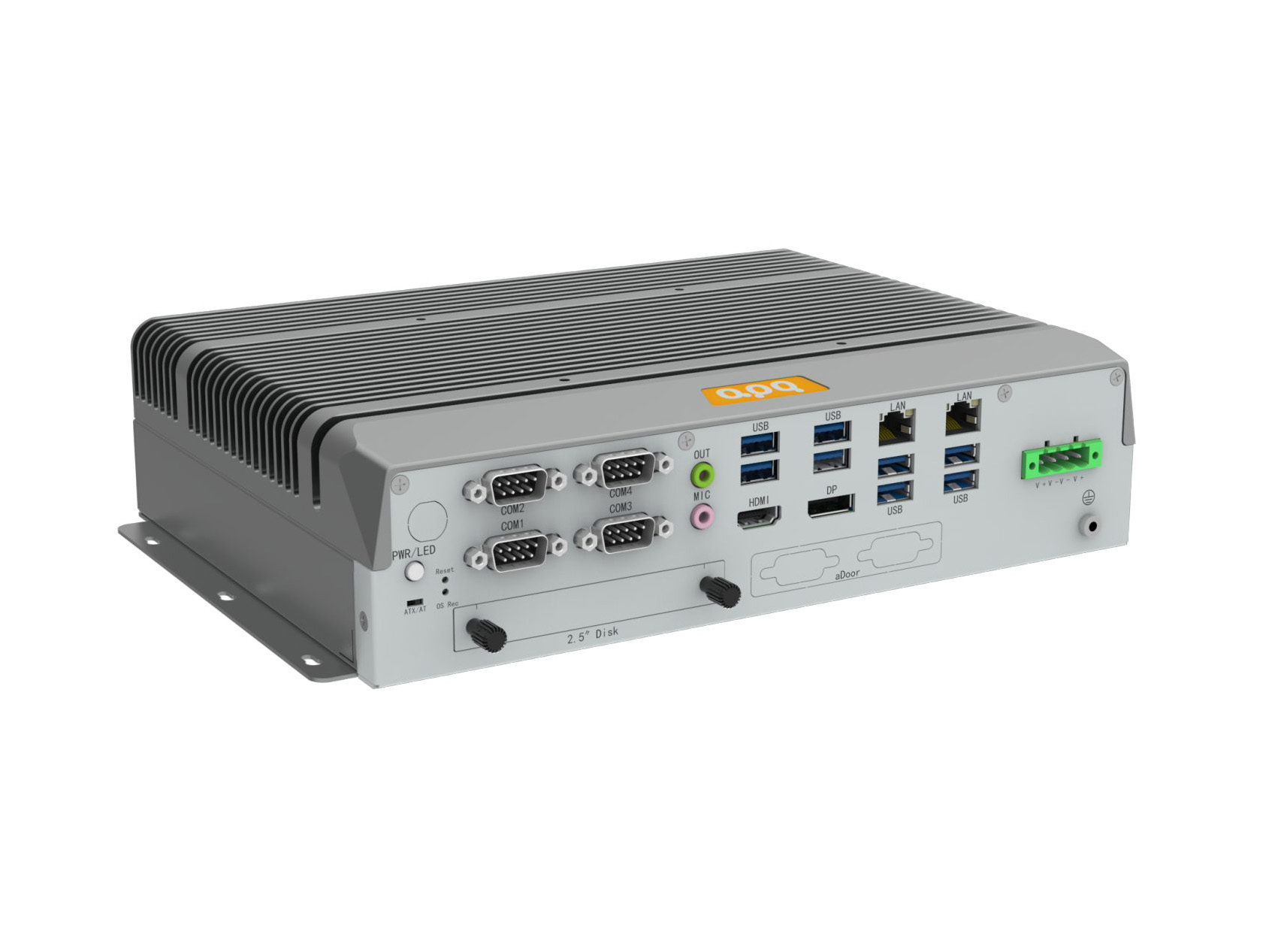

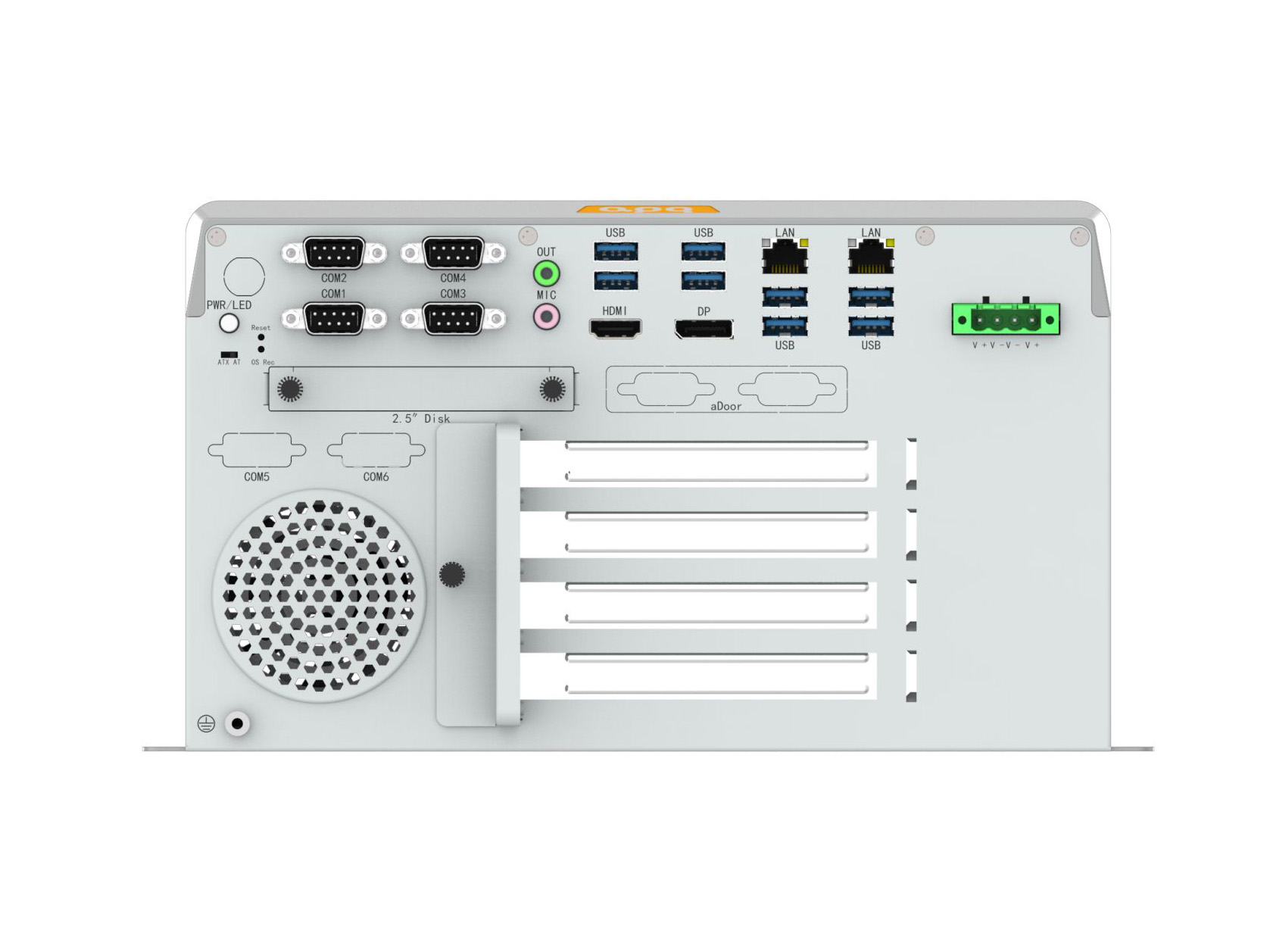

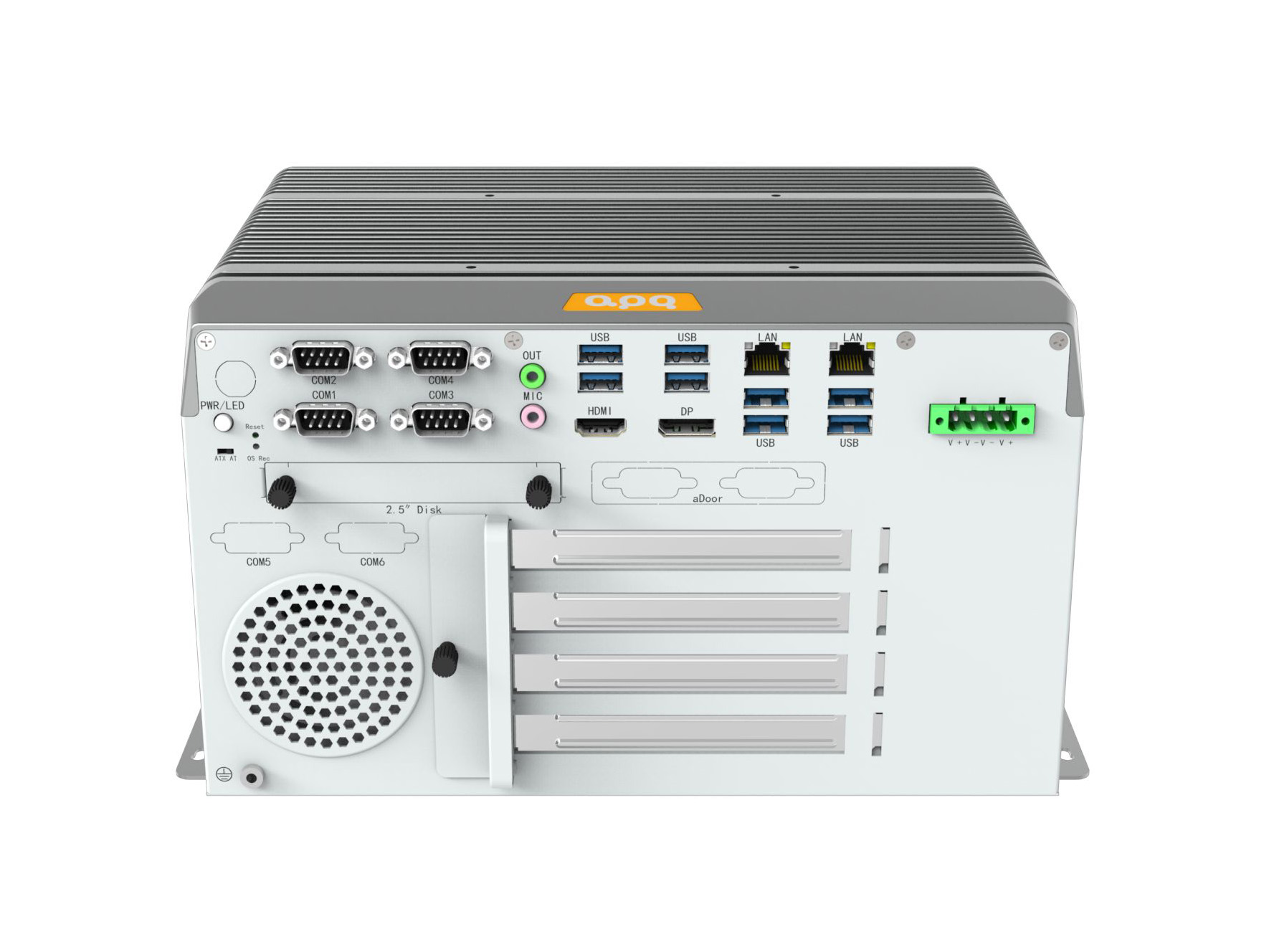

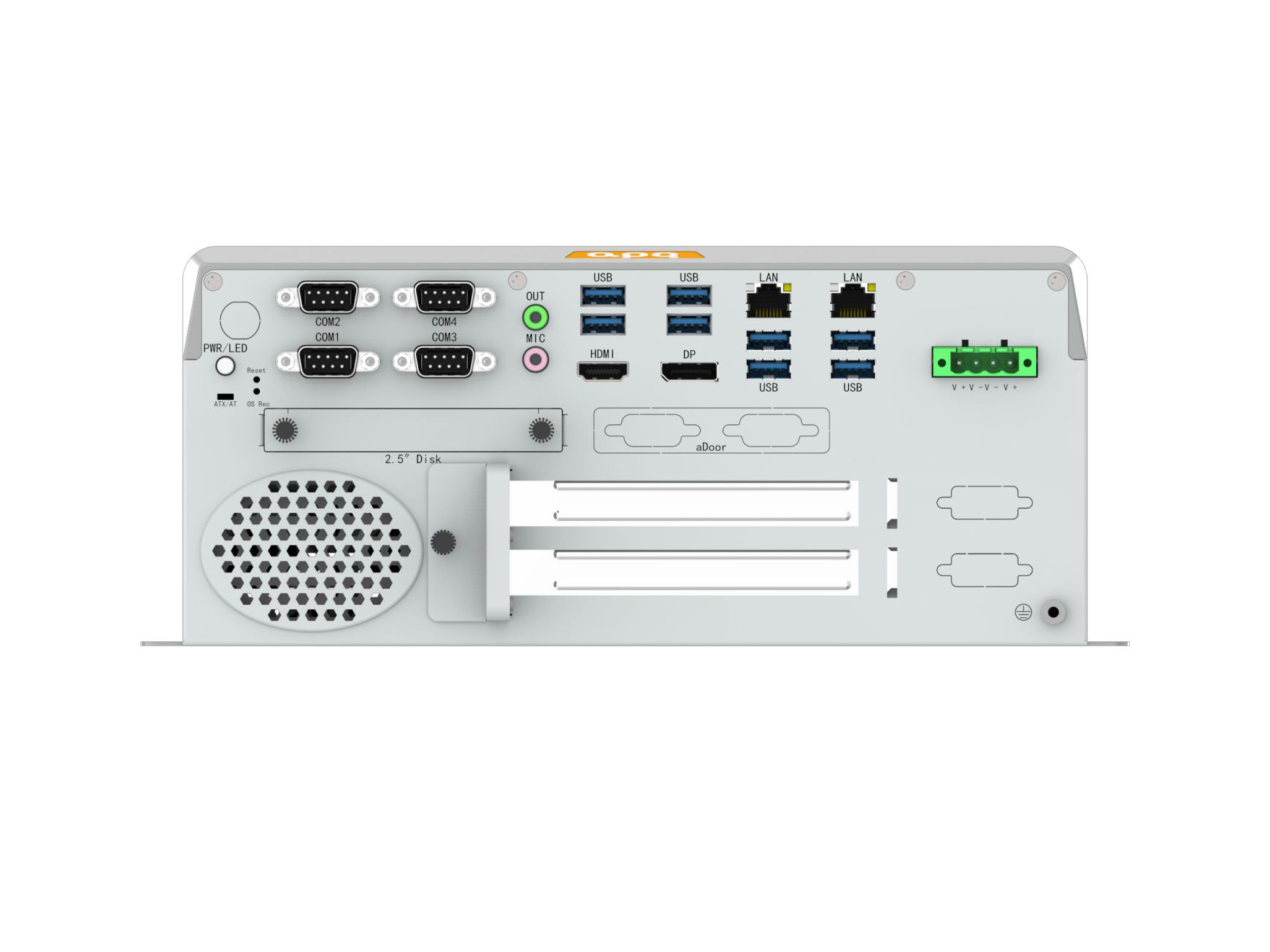

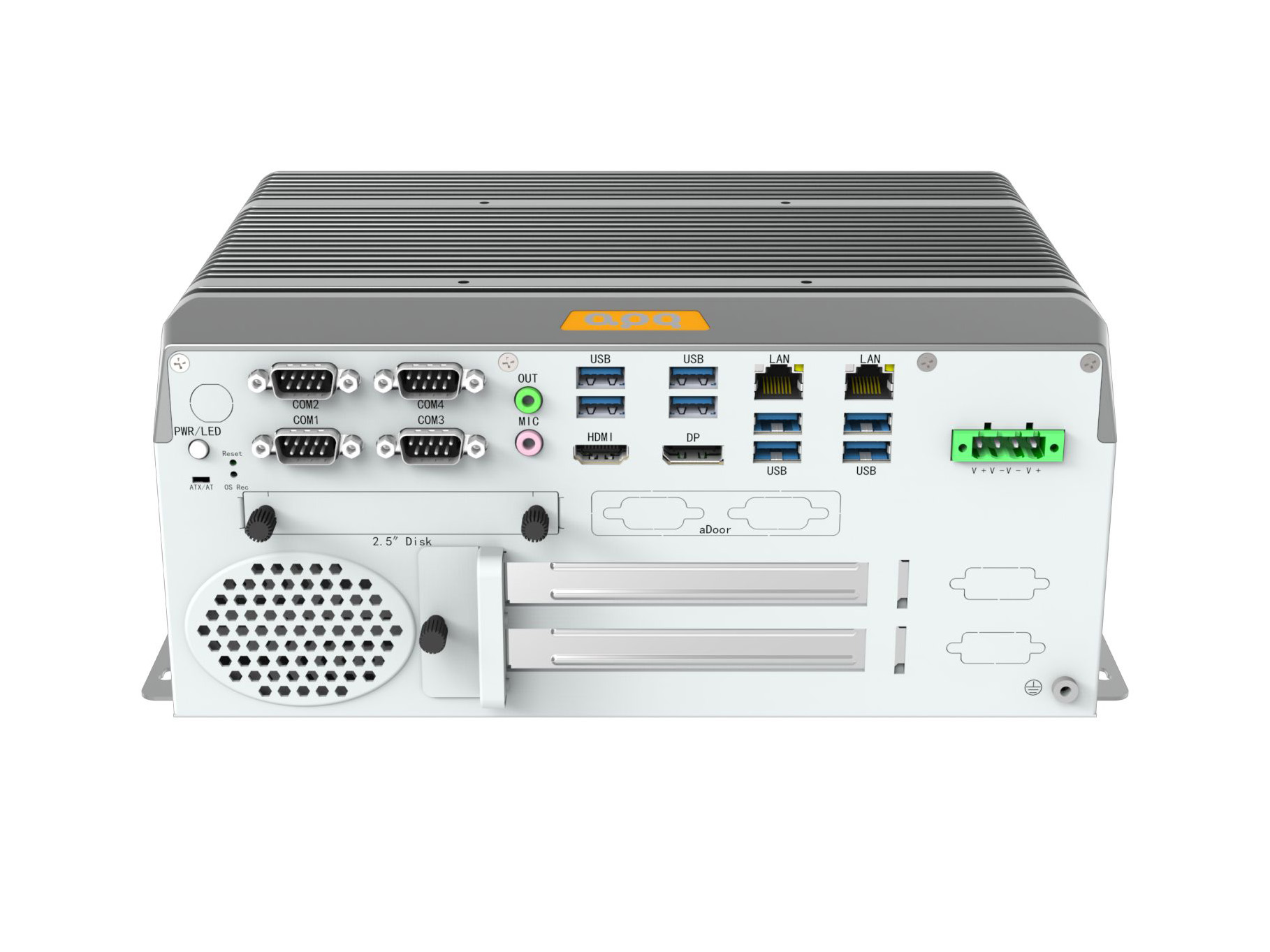

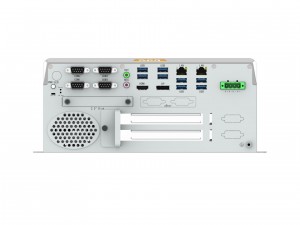

Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.2 Gen2x1 (Type-A, 10Gbps) 6 * USB3.2 Gen 1x1 (Type-A, 5Gbps)
	Display	1 * HDMI1.4b: max resolution up to 40962160 @ 30Hz 1 DP1.4a: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/485/422 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes)
	Button	1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button

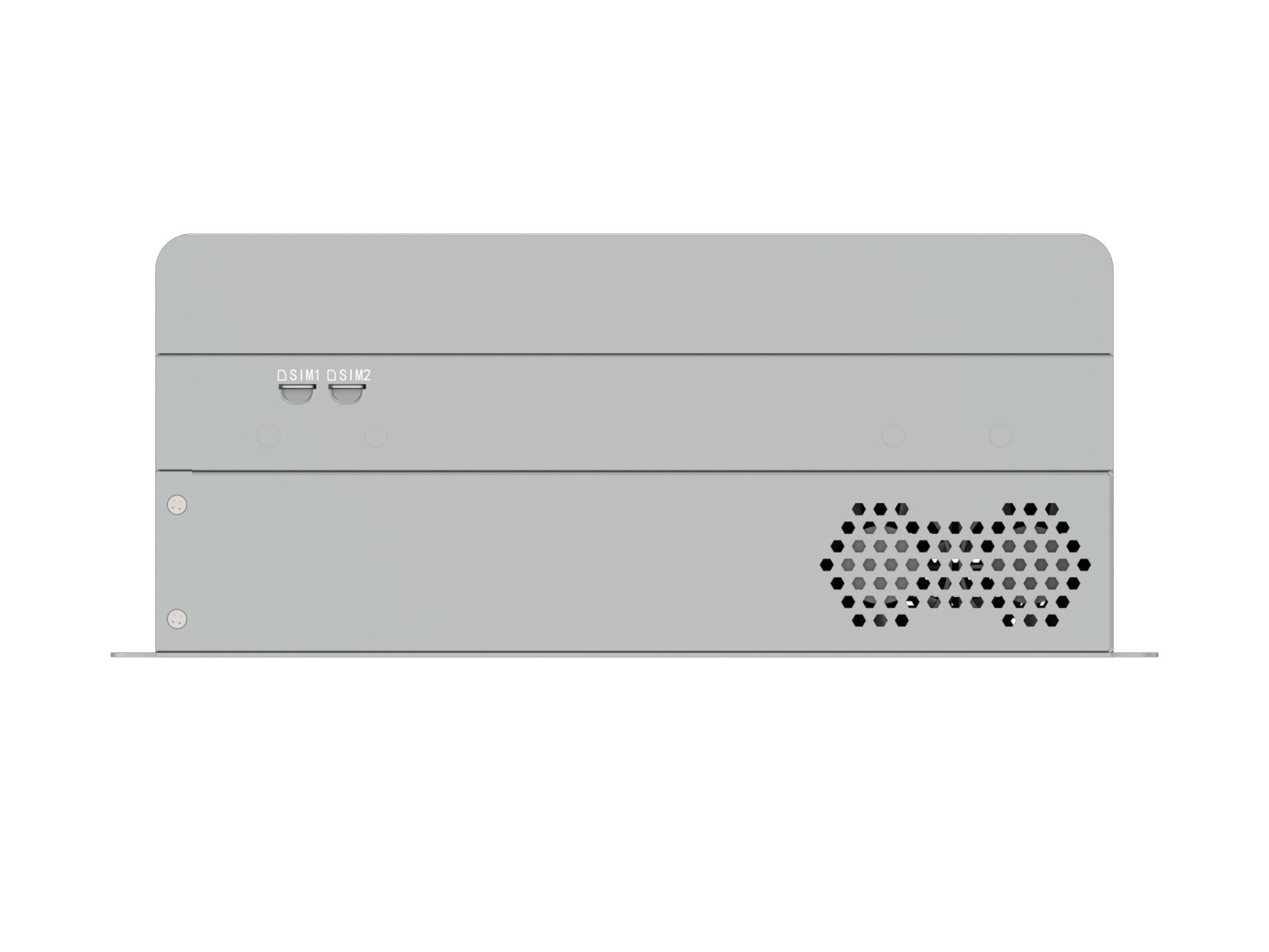

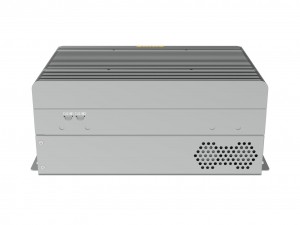

Rear I/O	Antenna	4 * Antenna hole
	SIM	2 * Nano SIM card slots
Internal I/O	USB	6 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): LVDS Resolution up to 1920*1200 @ 60Hz
	Front Panel	1 * FPanel (PWR+RST+LED, wafer)
	Audio	1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	3 * SATA 7P Connector, up to 600MB/s
	SATA Power	3 * SATA Power (wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9~36VDC, P≤240W 18~60VDC, P≤400W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable 1 ~ 255 sec
Mechanical	Enclosure Material	Radiator: Aluminum alloy, Box: SGCC
	Dimensions	268mm(L) * 194.2mm(W) * 67.7mm(H)	268mm(L) * 194.2mm(W) * 118.5mm(H)	268mm(L) * 194.2mm(W) * 159.5mm(H)
	Weight	Net: 4.5 kg Total: 6 kg (Include packaging)	Net: 4.7kg Total: 6.2 kg (Include packaging)	Net: 4.8 kg Total: 6.3 kg (Include packaging)

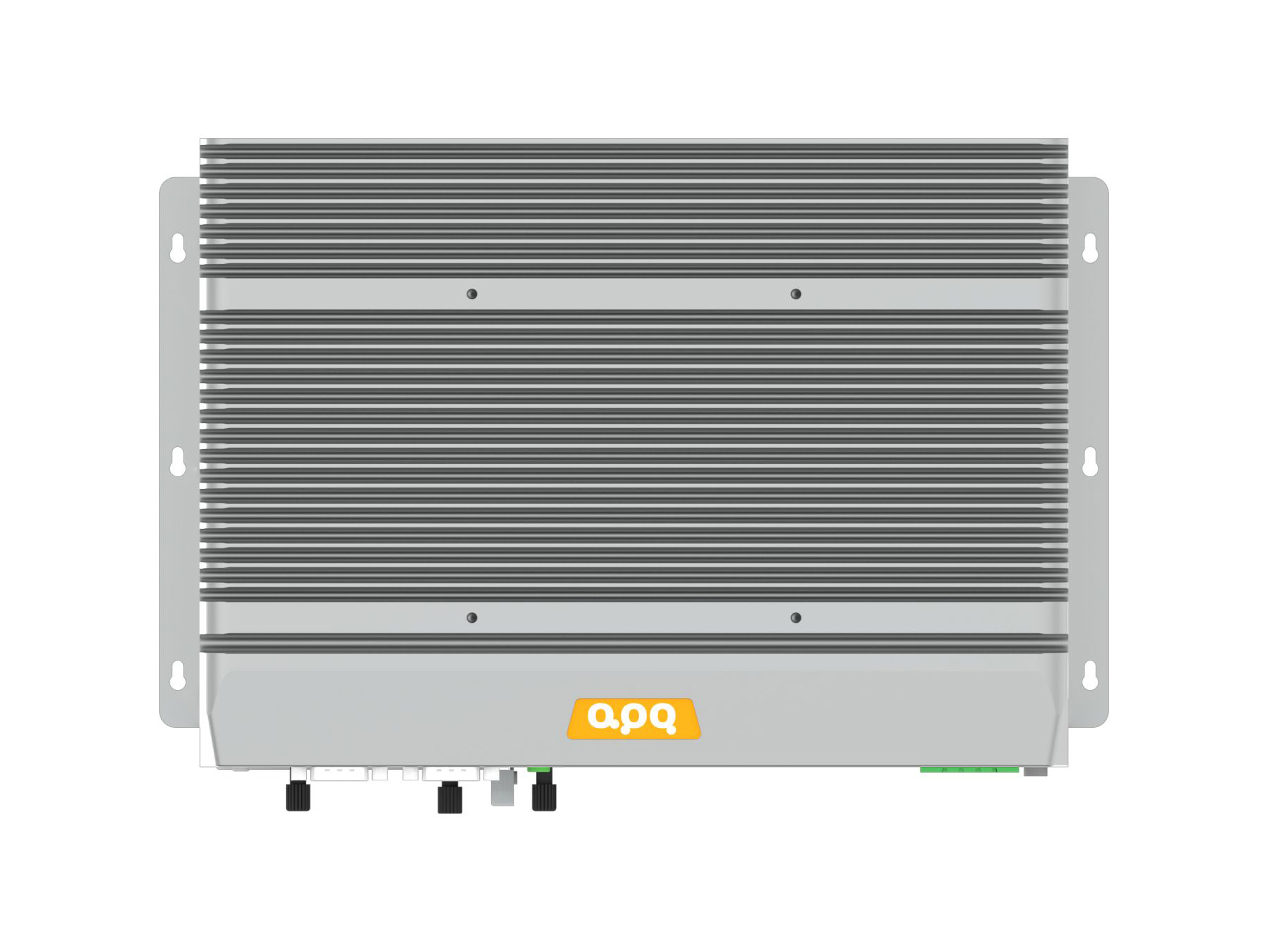

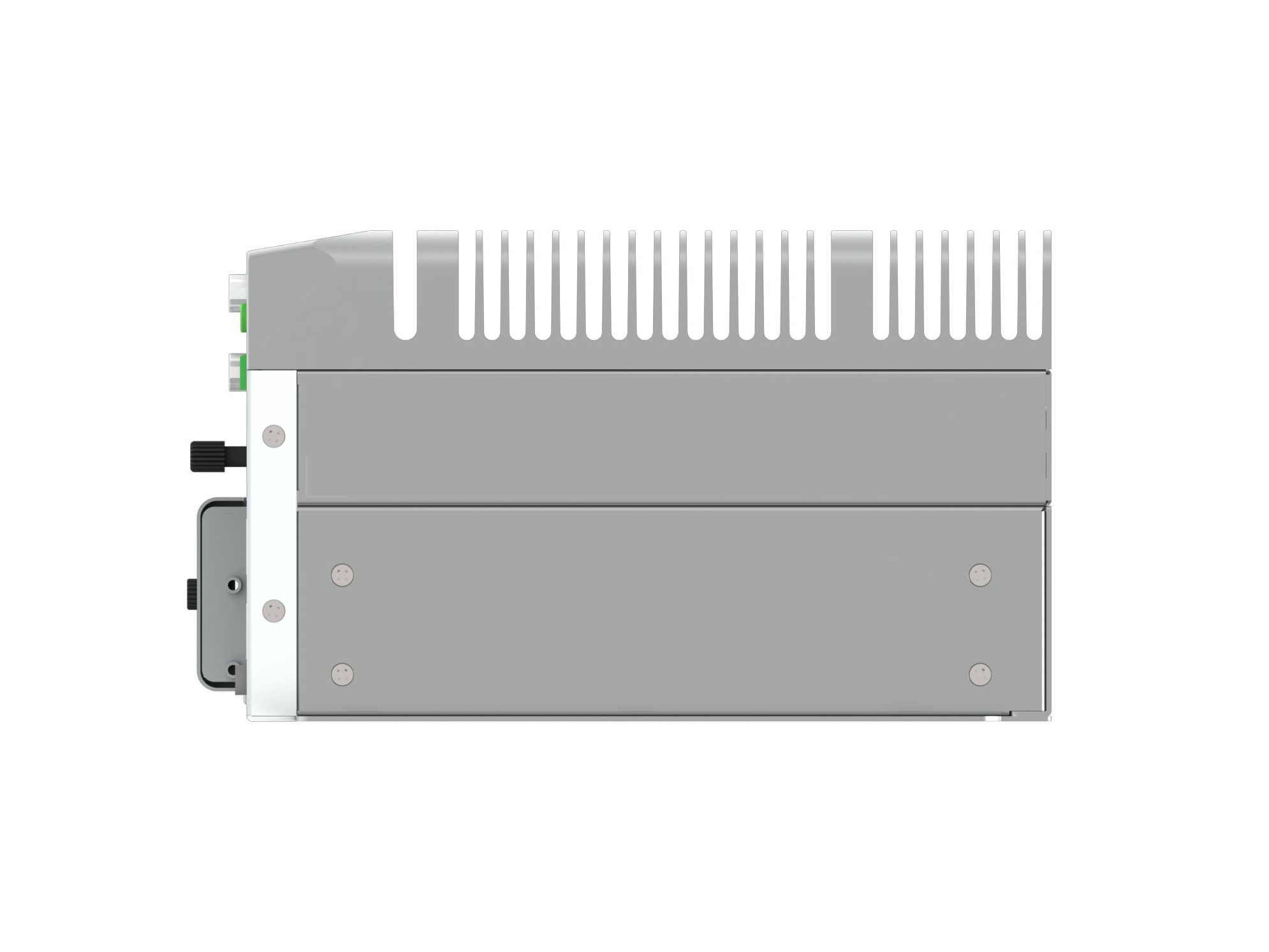

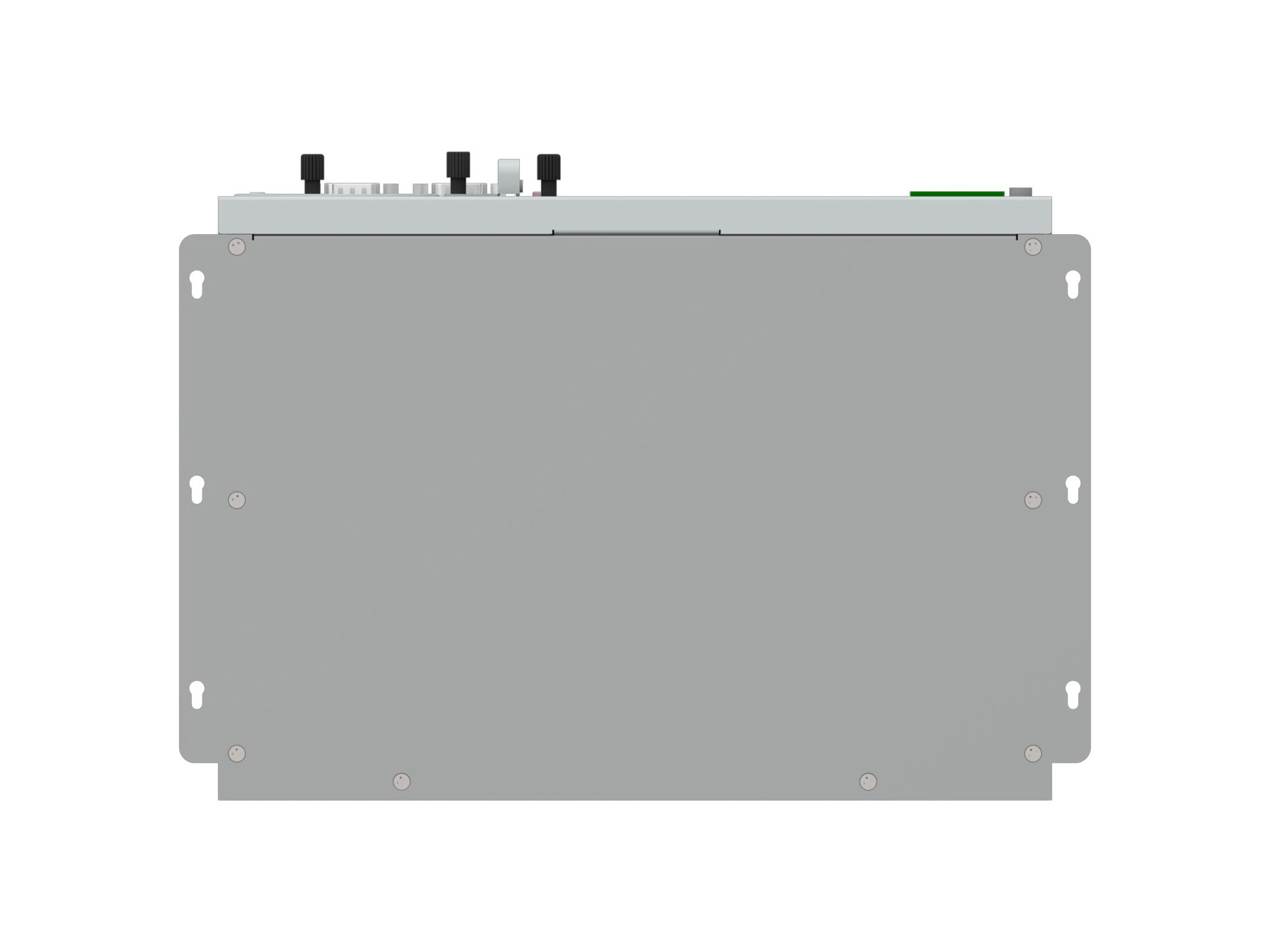

	Mounting	VESA, Wall mounted, Desktop
Environment	Heat Dissipation System	Fanless Passive Cooling
	Operating Temperature	-20~60℃ (Industrial SSD)
	Storage Temperature	-40~80℃ (Industrial SSD)
	Relative Humidity	10 to 90% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (30G, half sine, 11ms)
	Certification	CE/FCC, RoHS
