产品描述
阿普奇嵌入式工控机E7L系列H610平台是一款高效、可靠的嵌入式工控机，专为工业自动化和边缘计算应用而设计。采用支持Intel® 12/13th Gen Core / Pentium/ Celeron Desktop CPU，这些处理器具有35W的TDP和LGA1700封装，提供了强大的性能和能效，满足各种工业环境下的稳定运行。H610芯片组提供稳定的硬件平台，支持多种扩展功能。2个千兆网络接口确保高速稳定的网络连接，满足大数据传输需求。3路显示输出支持高清晰度显示，最高支持4K@60Hz分辨率。丰富的USB、串口扩展接口和PCIe、mini PCIe、M.2扩展插槽可根据具体应用需求进行定制配置。无风扇被动式散热设计确保系统散热效果优良，提升运行可靠性。
总之，阿普奇E7L系列H610平台嵌入式工控机凭借出色的性能和丰富的接口，为工业自动化和边缘计算提供了强大支持，满足各种复杂应用场景的需求。
|
Model |
E7L |
E7DL |
|
|
CPU
|
CPU | Intel® 12/13th Generation Core / Pentium/ Celeron Desktop CPU | |
| TDP | 35W | ||
| Socket | LGA1700 | ||
| Chipset | H610 | ||
| BIOS | AMI 256 Mbit SPI | ||
|
Memory |
Socket | 2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 3200MHz | |
| Max Capacity | 64GB, Single Max. 32GB | ||
|
Graphics |
Controller | Intel® UHD Graphics | |
|
Ethernet |
Controller | 1 * Intel i219-LM/V 1GbE LAN Chip (LAN1, 10/100/1000 Mbps) 1 * Intel i225-V/LM 2.5GbE LAN Chip (LAN2, 10/100/1000/2500 Mbps) |
|
|
Storage |
SATA | 1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) |
|
| M.2 | 1 * M.2 Key-M (SATA3.0, 2280) | ||
|
Expansion Slots |
PCIe Slot | N/A | ①: 1 * PCIe x16 (x16)②: 2 * PCI
PS: ①、②One out of two, Expansion card length ≤ 185mm, TDP ≤ 130W |
| aDoor | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | ||
| Mini PCIe | 1 * Mini PCIe (PCIe3.0 x1 + USB 2.0, with 1*Nano SIM Card) | ||
|

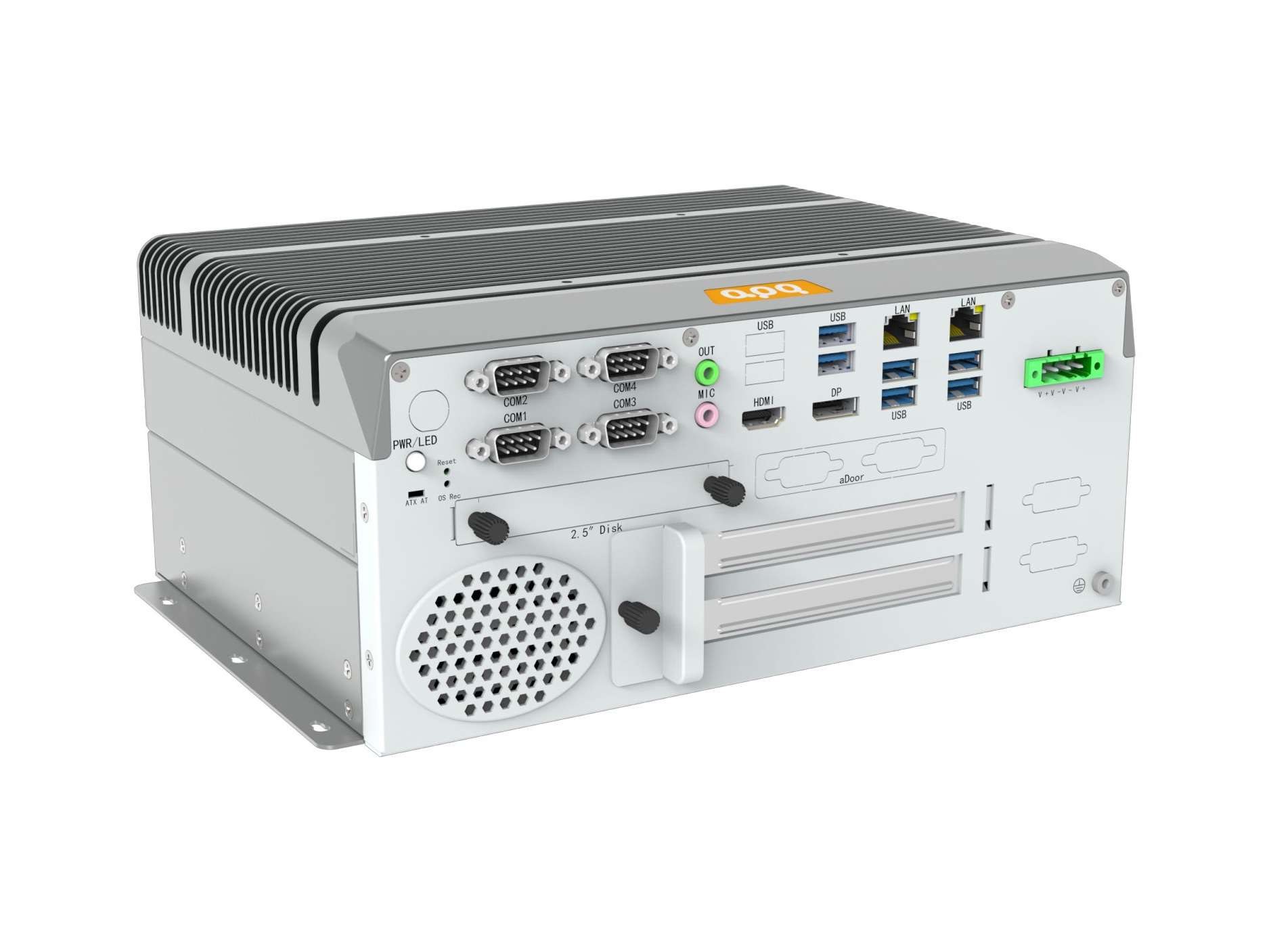

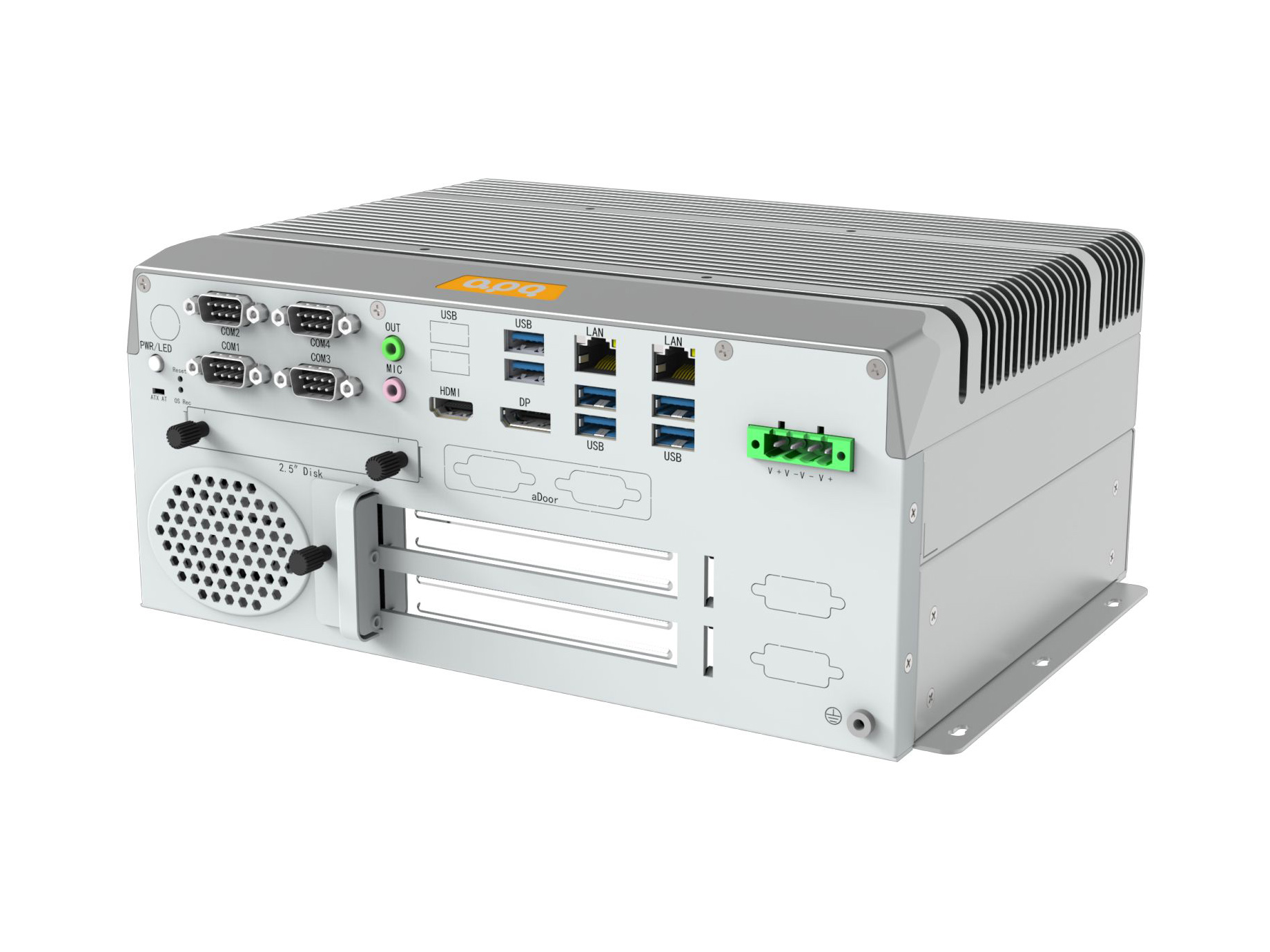

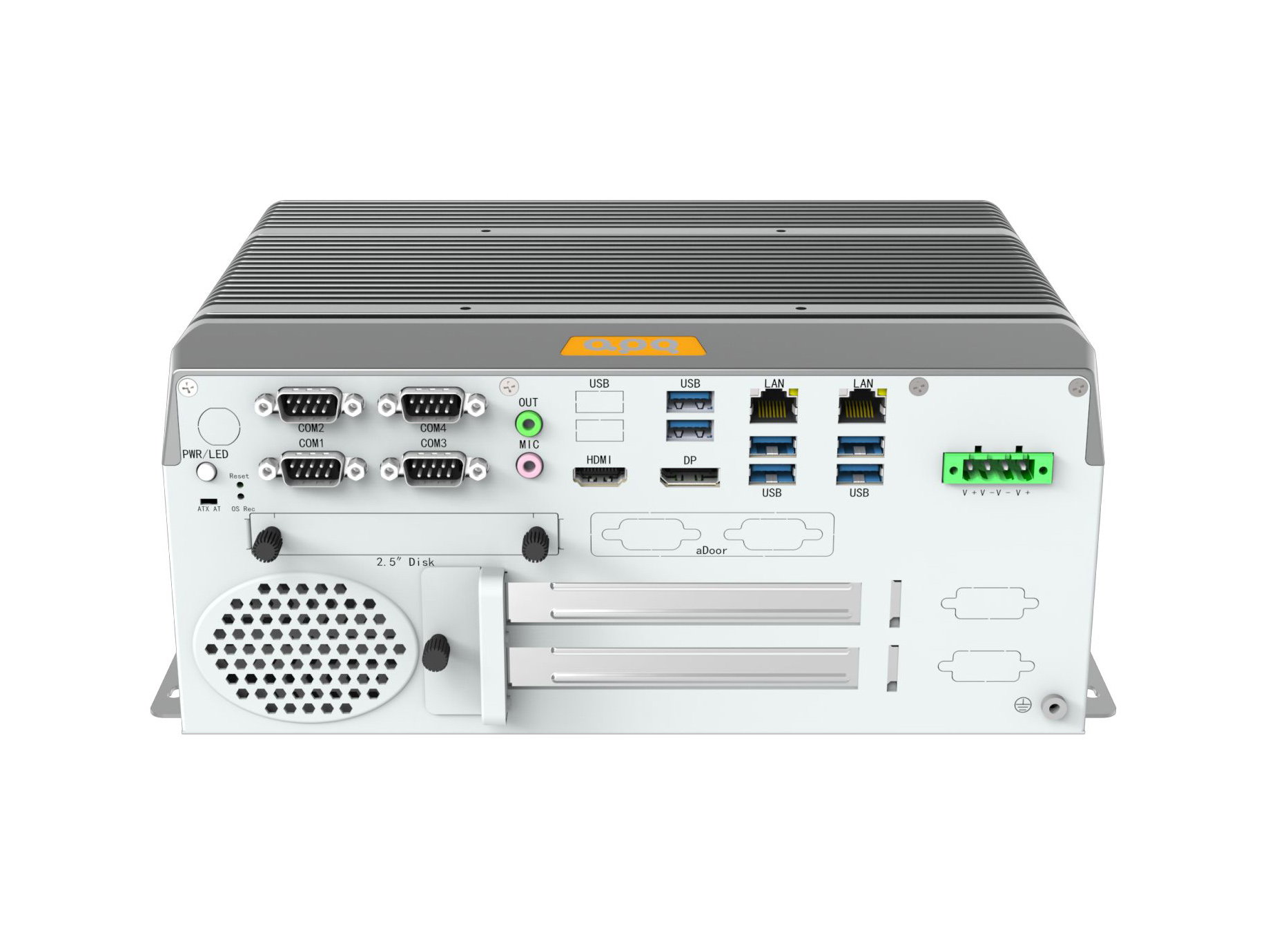

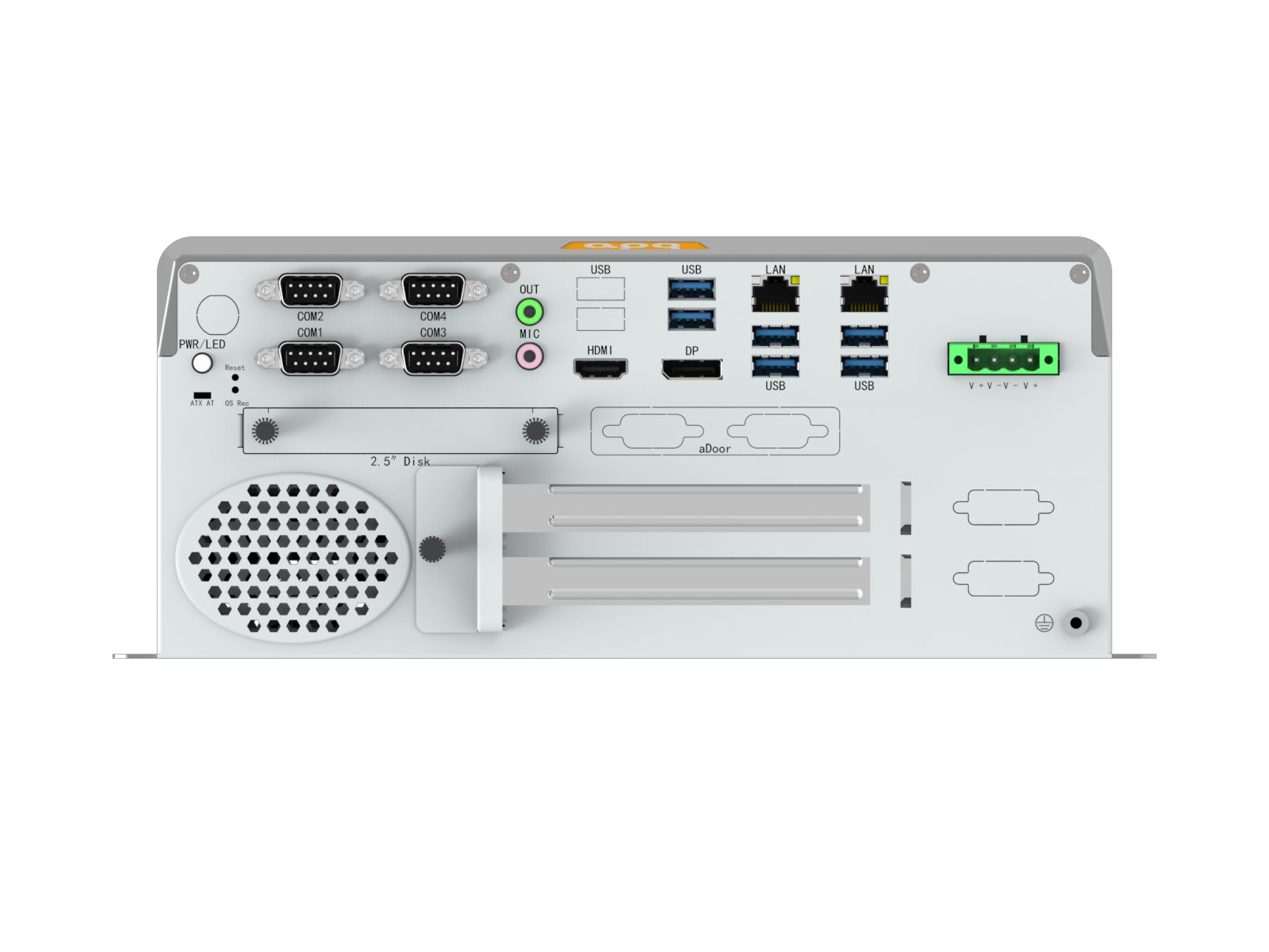

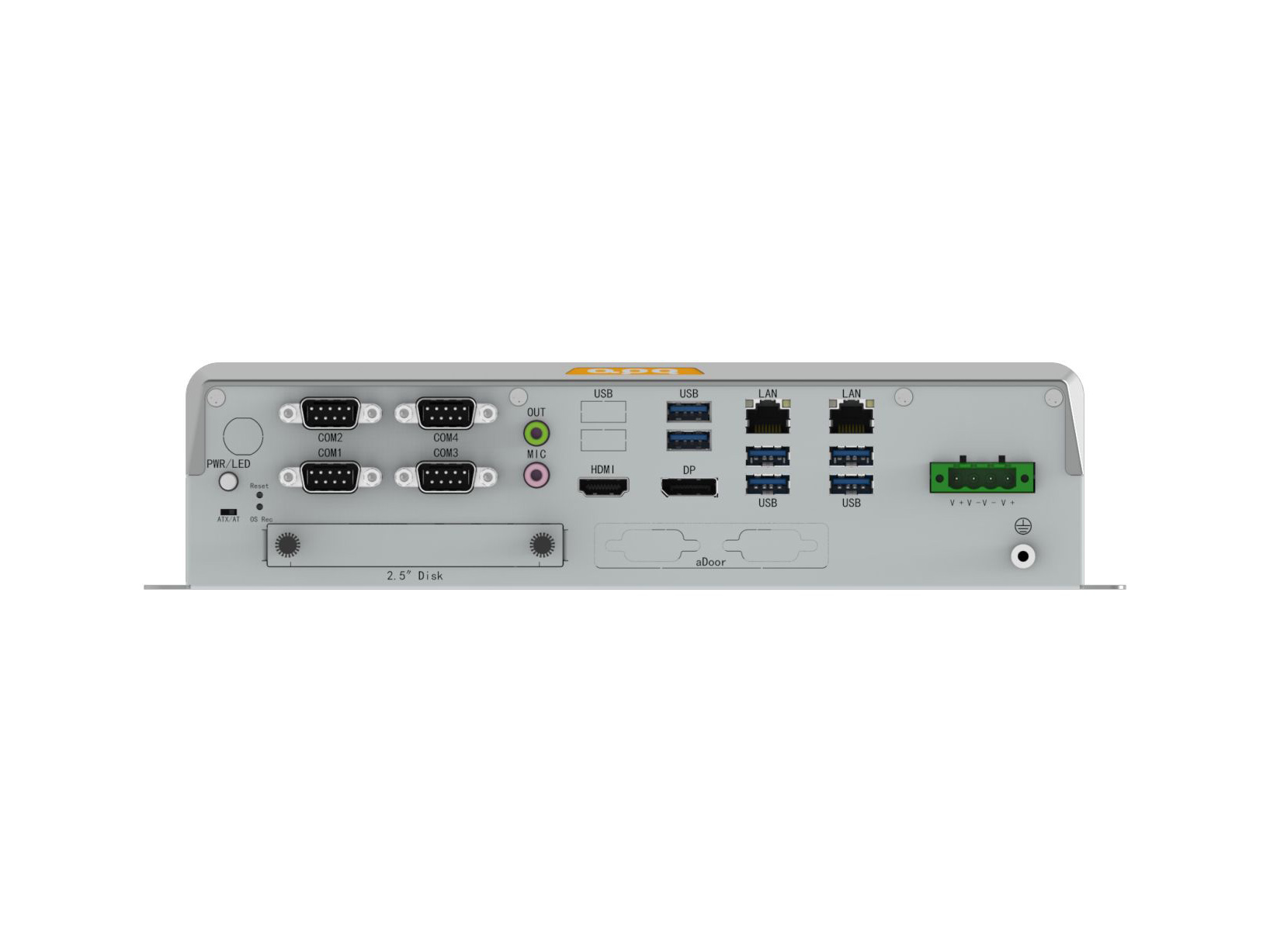

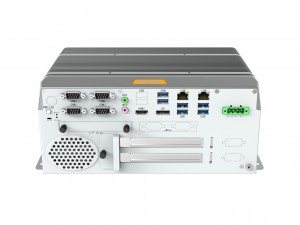

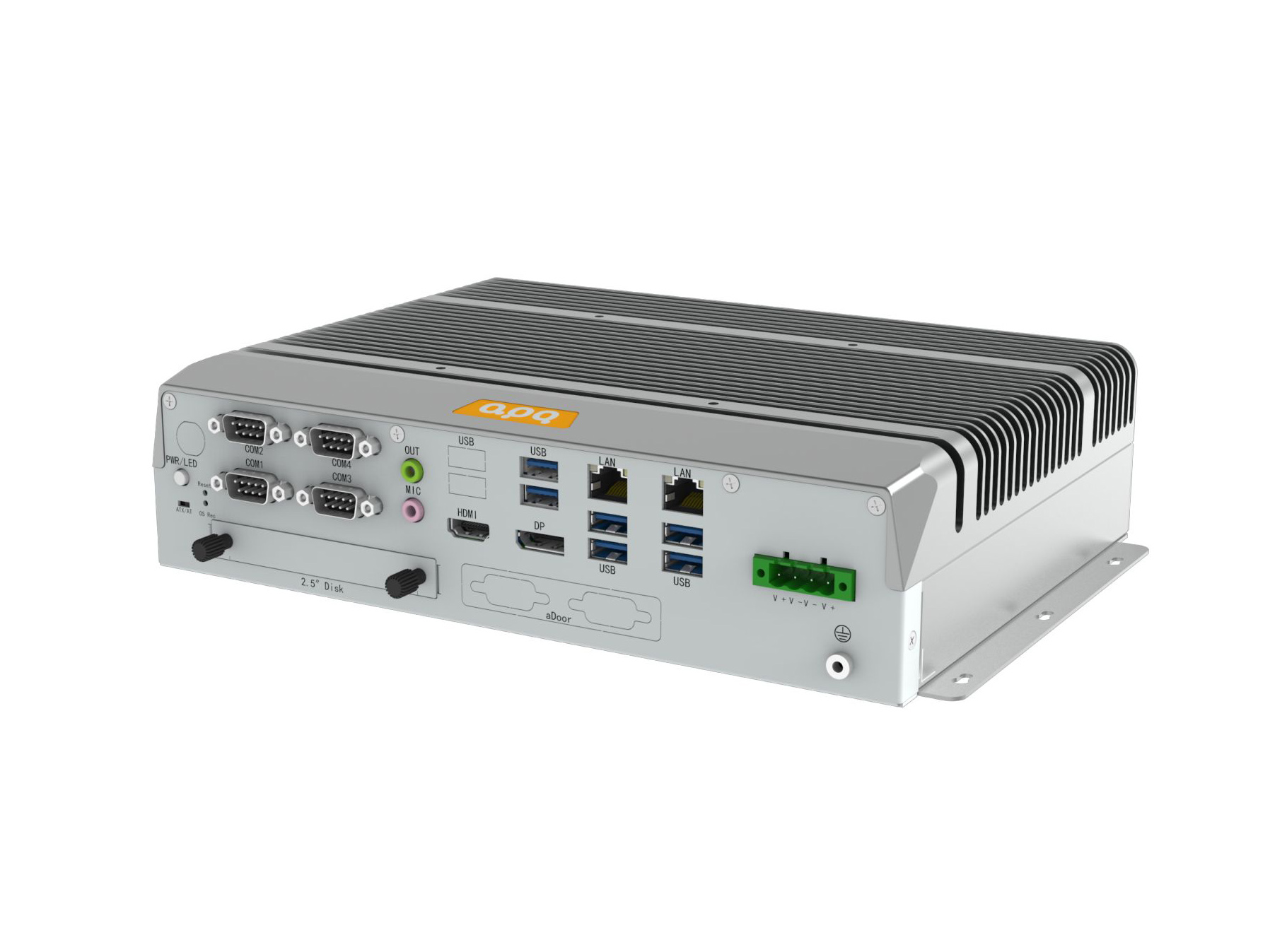

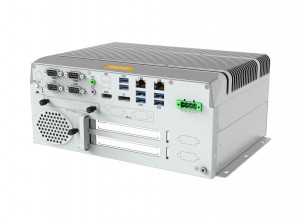

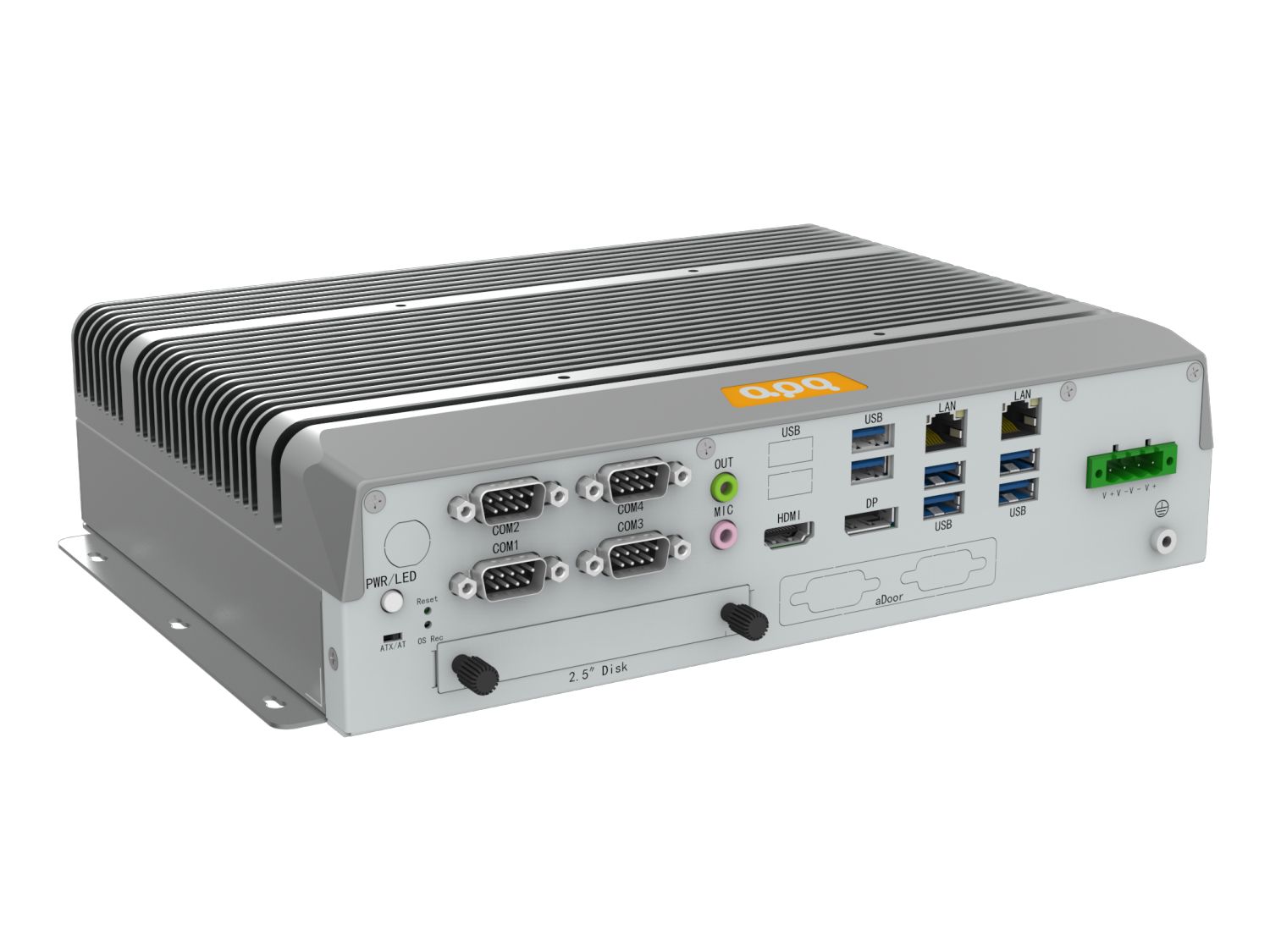

Front I/O |
Ethernet | 2 * RJ45 | |
| USB | 2 * USB3.2 Gen2x1(Type-A, 10Gbps) 2 * USB3.2 Gen1x1(Type-A, 5Gbps) 2 * USB2.0 (Type-A) |
||
| Display | 1 * HDMI1.4b: max resolution up to 4096*2160 @ 30Hz 1 * DP1.4a: max resolution up to 4096*2160 @ 60Hz |
||
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | ||
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M, Full Lanes) |
||
| Button | 1 * Power Button + Power LED 1 * AT/ATX Button 1 * OS Recover Button 1 * System Reset Button |
||
|

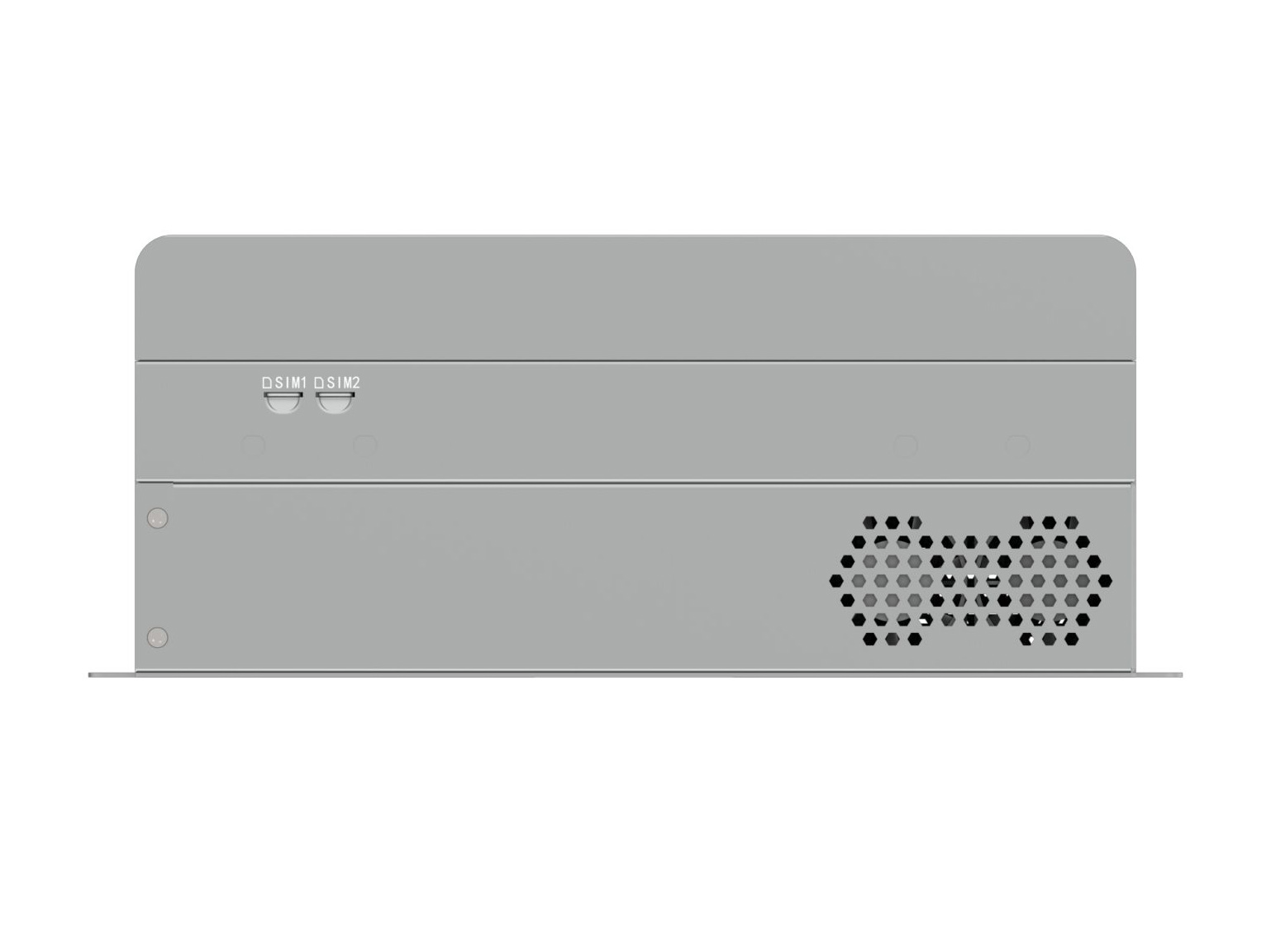

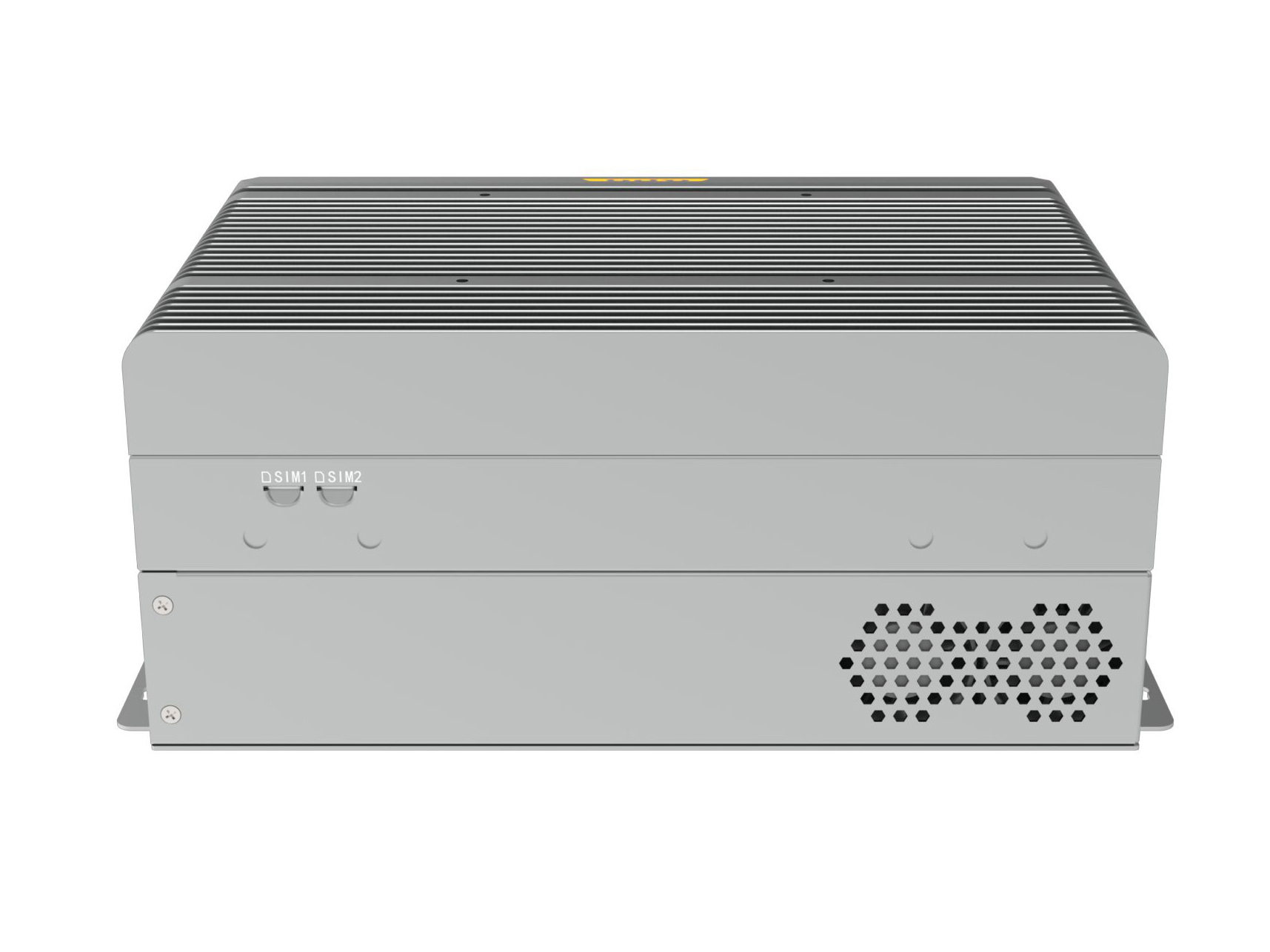

Rear I/O |
Antenna | 4 * Antenna hole | |
| SIM | 1* Nano SIM card slot (SIM1) | ||
|
Internal I/O |
USB | 6 * USB2.0 (wafer) | |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | ||
| Front Panel | 1 * FPanel (PWR + RST + LED, wafer) | ||
| Audio | 1 * Audio (Header) 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) |
||
| Serial | 2 * RS232 (COM5/6, wafer) | ||
| GPIO | 1 * 16 bits DIO (8xDI and 8xDO, wafer) | ||
| LPC | 1 * LPC (wafer) | ||
| SATA | 3 * SATA 7P Connector, up to 600MB/s | ||
| SATA Power | 3 * SATA Power (wafer) | ||
| FAN | 1 * CPU FAN (wafer) 2 * SYS FAN (KF2510-4A) |
||
|
Power Supply |
Type | DC, AT/ATX | |
| Power Input Voltage | 9~36VDC, P≤240W 18~60VDC, P≤400W |
||
| Connector | 1 * 4Pin Connector, P=5.00/5.08 | ||
| RTC Battery | CR2032 Coin Cell | ||
|
OS Support |
Windows | Windows 10/11 | |
| Linux | Linux | ||
|
Watchdog |
Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
|

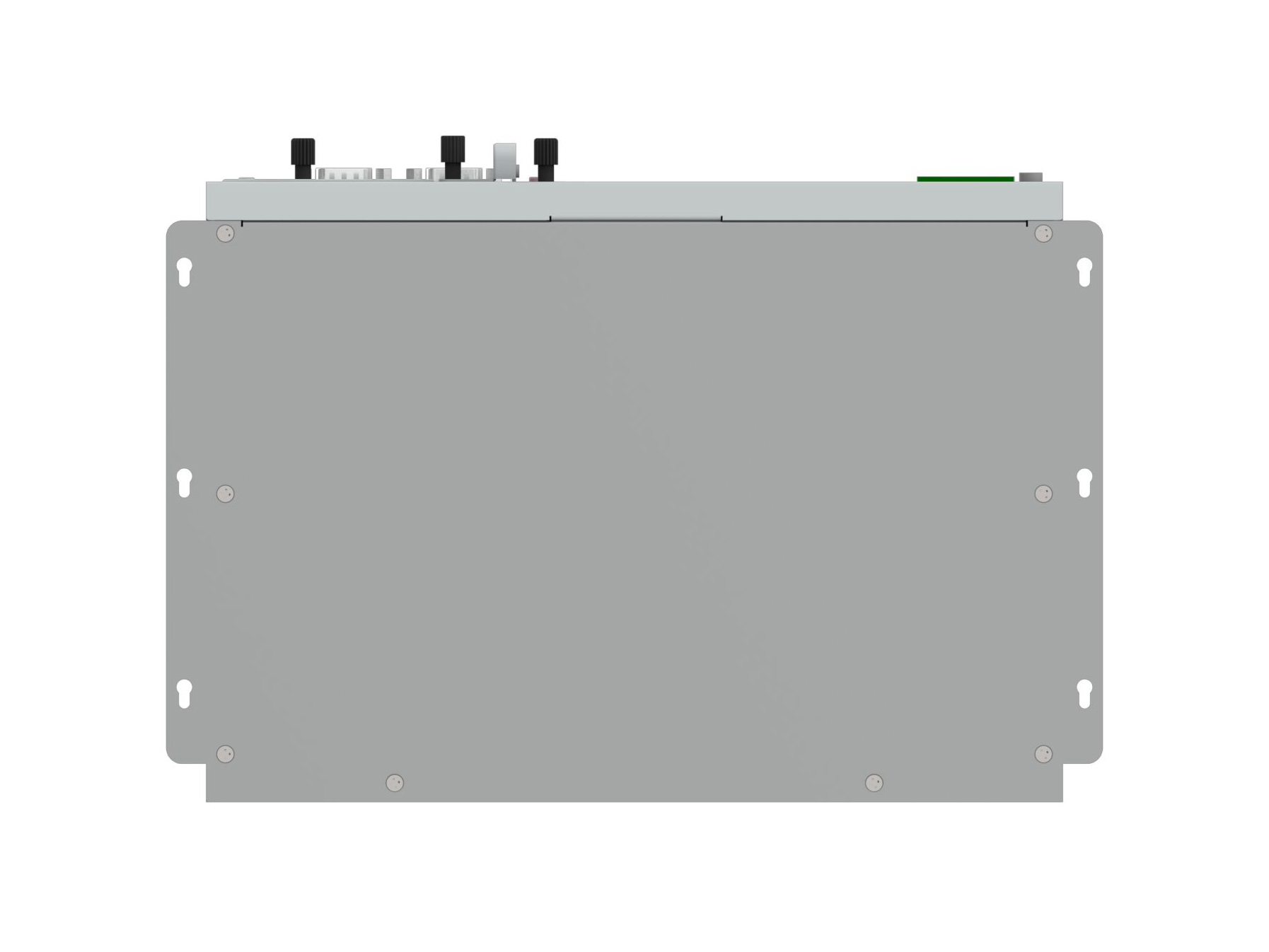

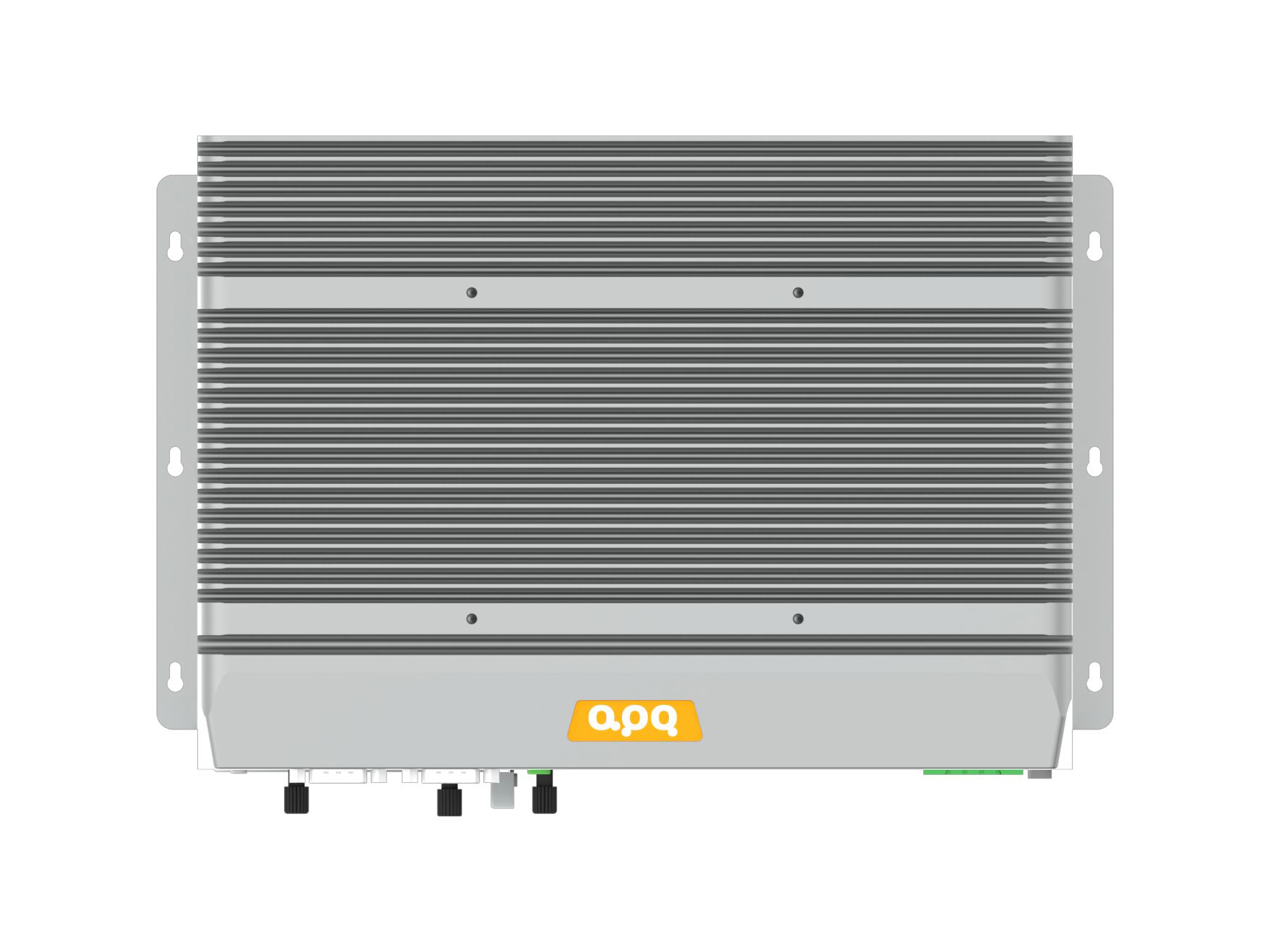

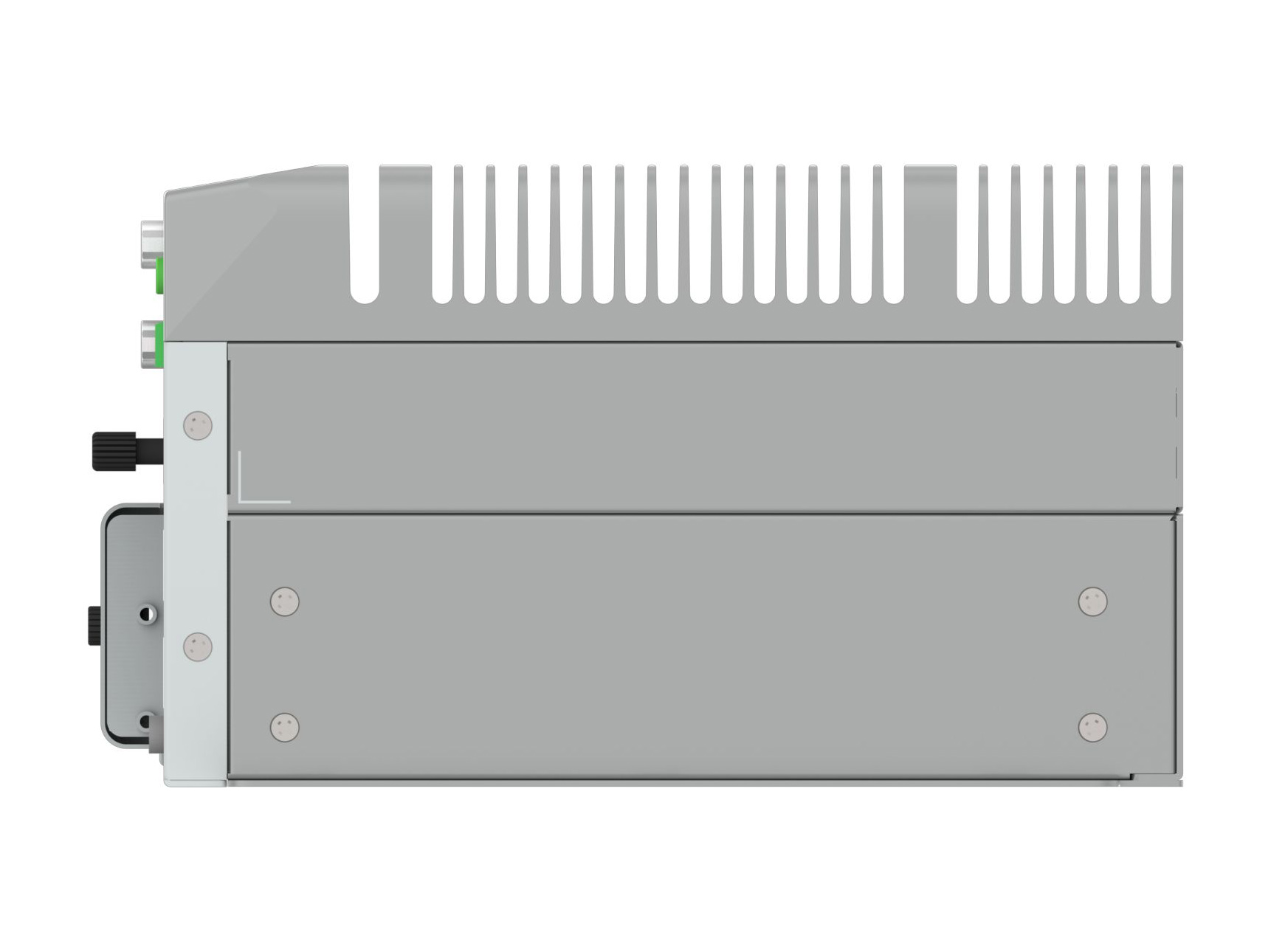

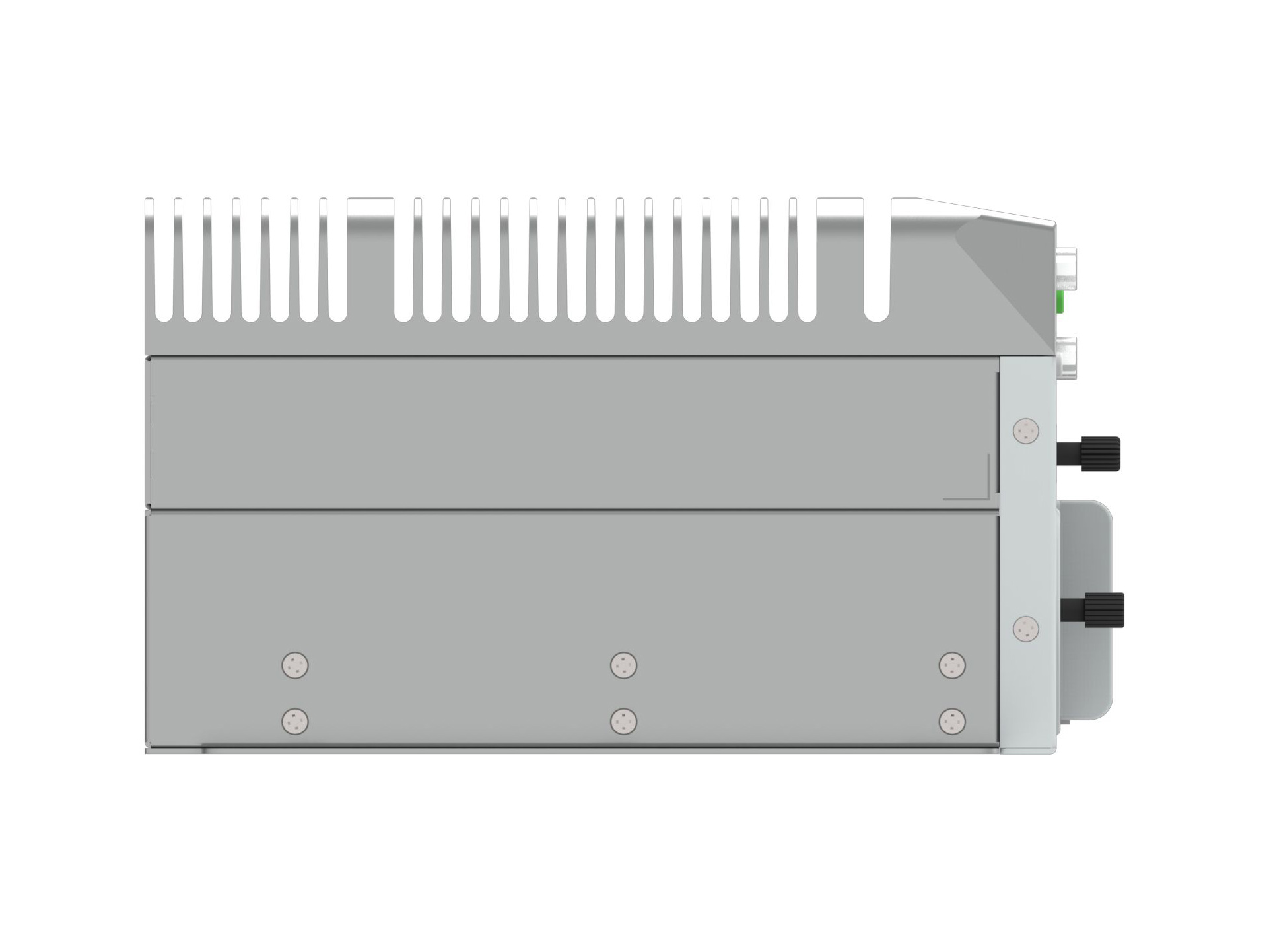

Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC | |
| Dimensions | 268mm(L) * 194.2mm(W) * 67.7mm(H) | 268mm(L) * 194.2mm(W) * 118.5mm(H) | |
| Weight | Net: 4.5 kgTotal: 6 kg (Include packaging) | Net: 4.7kgTotal: 6.2 kg (Include packaging) | |
| Mounting | VESA, Wall mounted, Desktop | ||
|
Environment |
Heat Dissipation System | Fanless Passive Cooling | |
| Operating Temperature | -20 ~ 60℃ (Industrial SSD) | ||
| Storage Temperature | -40 ~ 80℃ (Industrial SSD) | ||
| Relative Humidity | 10 to 90% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | ||
| Certification | CE/FCC, RoHS | ||
-
