E7 Pro系列Q170平台 嵌入式工控机/车路协同控制器/边缘计算控制器
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
产品描述

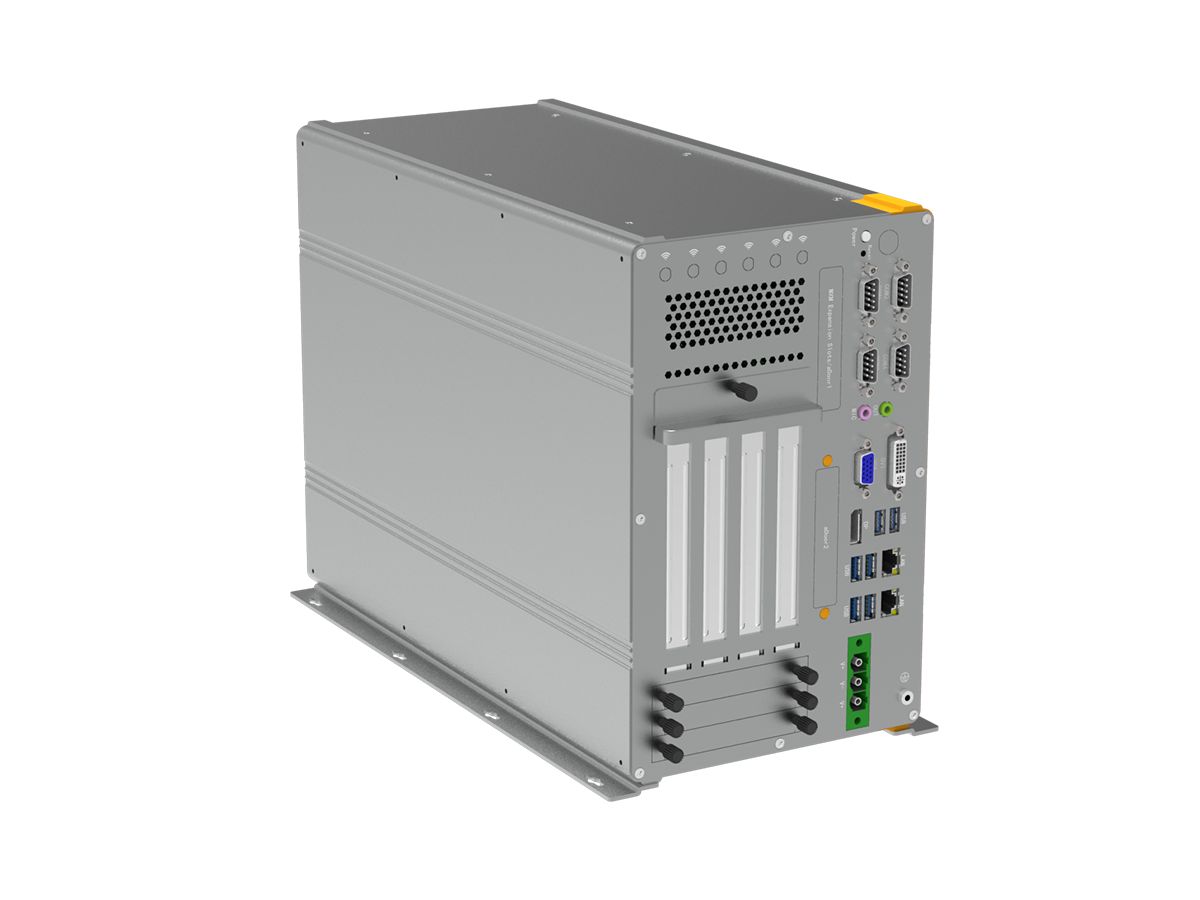

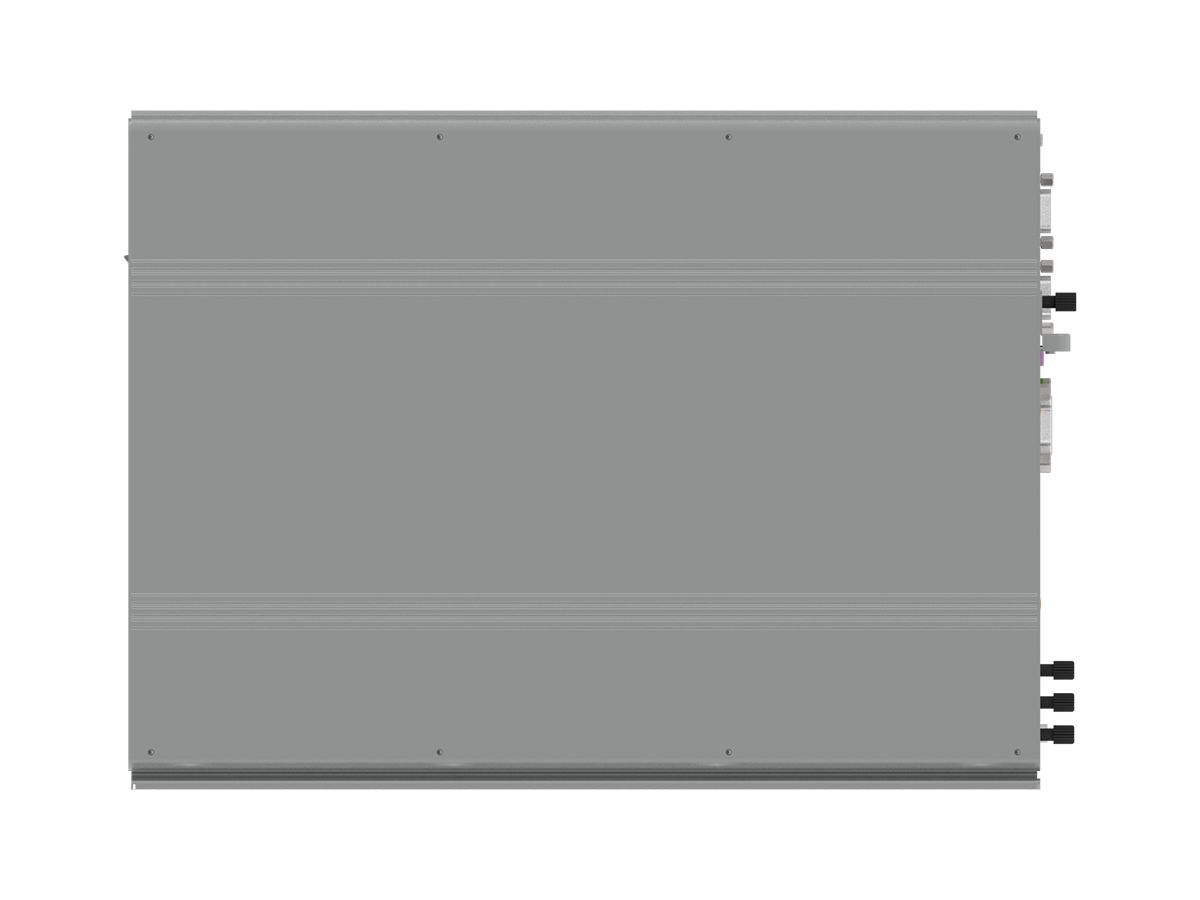

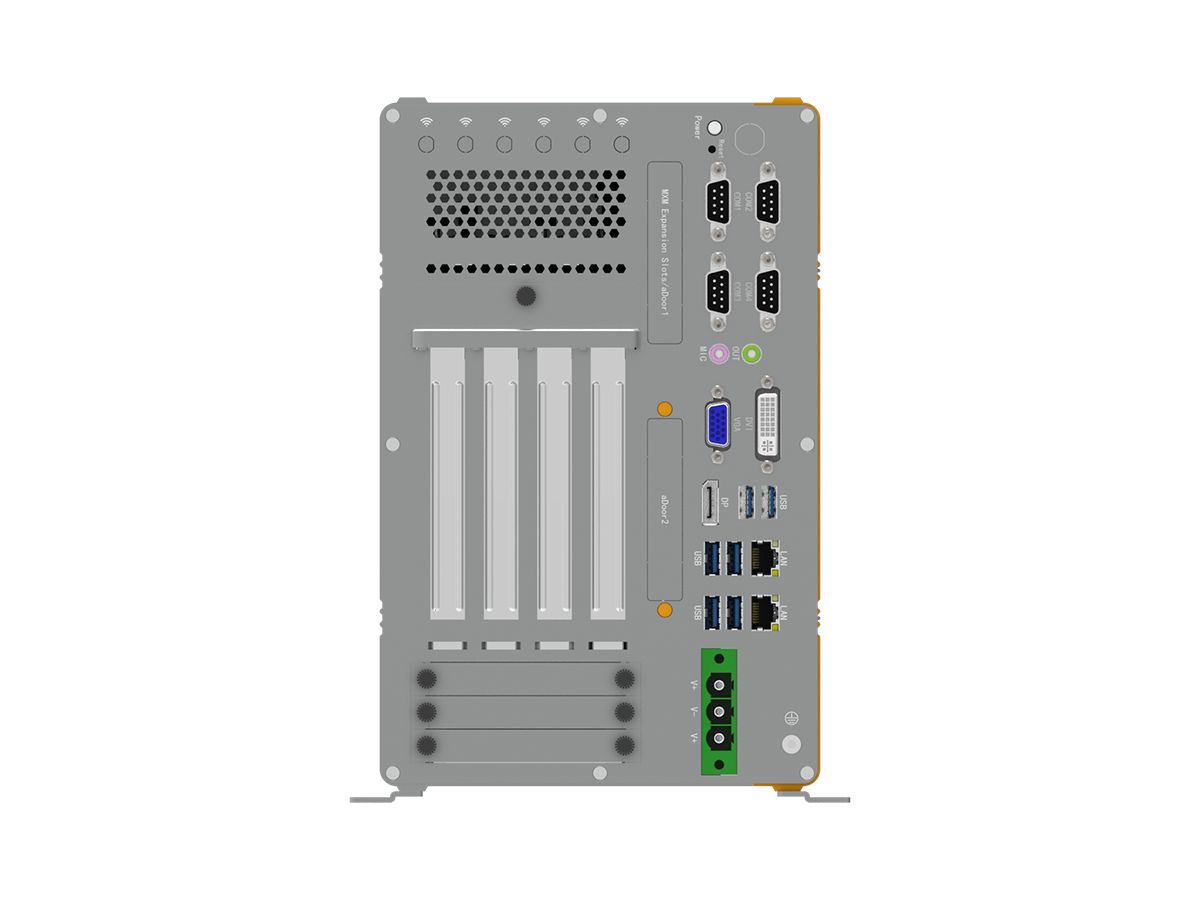

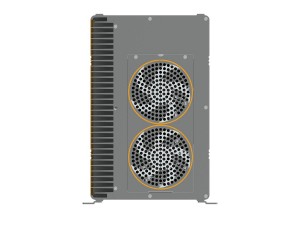

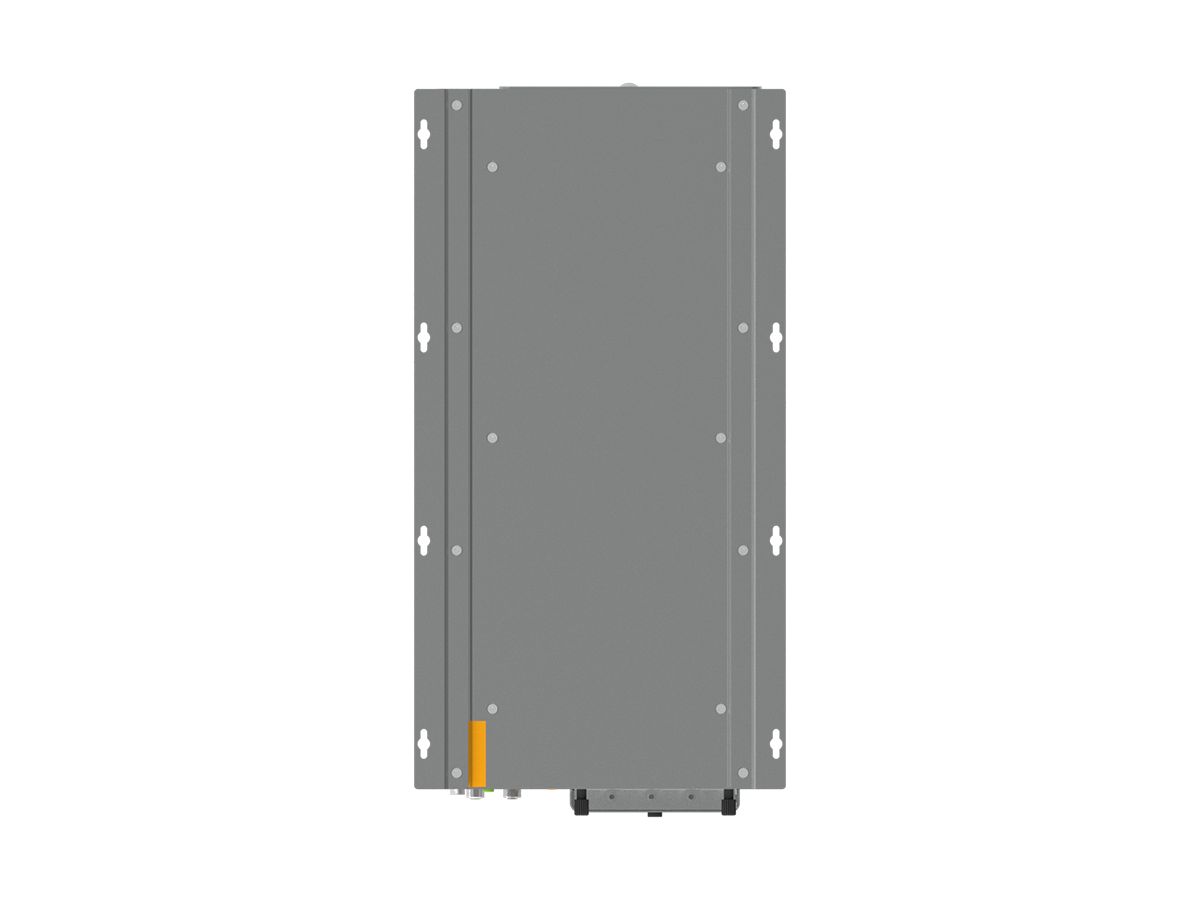

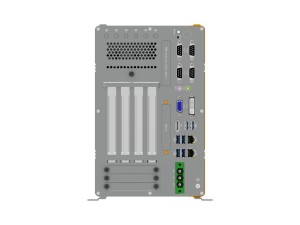

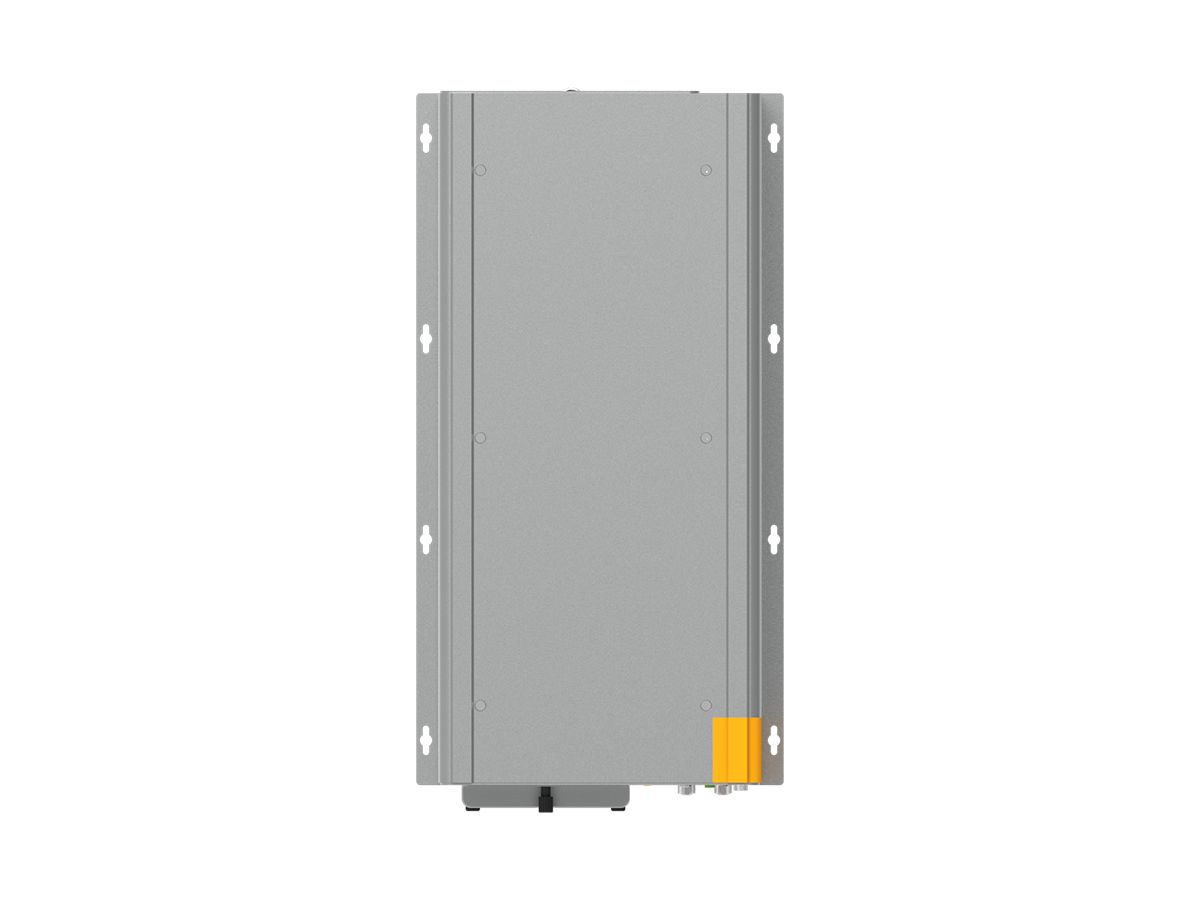

阿普奇行业产品车路协同控制器E7 Pro系列Q170平台是一款专为车路协同应用而设计的嵌入式工控机，具有出色的稳定性和兼容性。该控制器支持Intel® 6~9th Gen Core / Pentium/ Celeron Desktop CPU，采用LGA1700封装，TDP为65W。搭配Intel® Q170芯片组，提供2个Intel千兆网络接口，可实现高速、稳定的网络连接，满足车路协同应用中对网络传输的需求。配备2个DDR4 SO-DIMM插槽，最大支持64GB内存，为大数据处理和多任务操作提供了充足的内存资源。在扩展性方面，E7 Pro系列Q170平台具备丰富的接口和扩展功能，它提供4个DB9串口（COM1/2支持RS232/RS422/RS485），方便连接各种设备。同时支持M.2和2.5英寸硬盘位，提供多种存储选择，满足数据存储和备份的需求。支持4G/5G/WIFI/BT无线功能扩展，提供稳定的无线通信连接。可选PCIe/PCI标准扩展槽位支持进一步增强了控制器的扩展能力。在显示方面，E7 Pro系列Q170平台具备3路显示输出，包括VGA、DVI-D和DP接口，最高支持4K@60Hz分辨率，为用户带来清晰、流畅的视觉体验。采用DC18-60V宽压输入，额定功率可选600/800/1000W，满足各种不同功耗的需求。
综上所述，阿普奇行业产品车路协同控制器E7 Pro系列Q170平台以卓越的性能、强大的稳定性和易于组装的特点，可为工业自动化、智能制造、智能交通以及智慧城市等领域用户提供更加可靠、高效的支持，助力各行业实现数智化转型和升级。
|
Model |
E7 Pro |
|
|
CPU |
CPU | Intel® 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 65W | |
| Socket | LGA1151 | |
| Chipset | Q170 | |
| BIOS | AMI UEFI BIOS (Support Watchdog Timer) | |
|
Memory |
Socket | 2 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 2133MHz |
| Max Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel® HD Graphics |
|
Ethernet |
Controller | 1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
SATA | 3 * SATA3.0, Quick release 2.5" hard disk bays (T≤7mm), Support RAID 0, 1, 5 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe Slot | ①: 2 * PCIe x16 (x8/x8) + 2 * PCI
②: 2 * PCIe x16 (x8/x8) + 1 * PCIe x4 (x4) PS: ①、② One out of two, Expansion card length ≤ 320mm, TDP ≤ 450W |
| aDoor/MXM | 1 * aDoor Bus (Optional 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-B (PCIe x1 Gen 2 + USB3.0, with 1 * SIM Card, 3042/3052) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 6 * USB3.0 (Type-A, 5Gbps) | |
| Display | 1 * DVI-D: max resolution up to 1920*1200 @ 60Hz 1 * VGA (DB15/F): max resolution up to 1920*1200 @ 60Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz |
|
| Audio | 2 * 3.5mm Jack (Line-Out + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M) |
|
| Button | 1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS) |
|
|
Rear I/O |
Antenna | 6 * Antenna hole |
|
Internal I/O |
USB | 2 * USB2.0(wafer, Internal I/O) |
| LCD | 1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz | |
| TFront Panel | 1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer) | |
| Front Panel | 1 * FPanel (PWR + RST + LED, wafer) | |
| Speaker | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |
| Serial | 2 * RS232 (COM5/6, wafer, 8x2pin, PHD2.0) | |
| GPIO | 1 * 16bit GPIO (wafer) | |
| LPC | 1 * LPC (wafer) | |
| SATA | 3 * SATA3.0 7P Connector | |
| SATA Power | 3 * SATA Power (SATA_PWR1/2/3, wafer) | |
| SIM | 2 * Nano SIM | |
| FAN | 2 * SYS FAN (wafer) | |
|
Power Supply |
Type | DC, AT/ATX |
| Power Input Voltage | 18~60VDC，P=600/800/1000W (Default 800W) | |
| Connector | 1 * 3Pin Connector, P=10.16 | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | 6/7th Core™: Windows 7/10/11
8/9th Core™: Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |
| Dimensions | 363mm(L) * 270mm(W) * 169mm(H) | |
| Weight | Net: 10.48 kg
Total: 11.38 kg (Include packaging) |
|
| Mounting | Wall mounted, Desktop | |
|
Environment |
Heat Dissipation System | Fanless Passive Cooling (CPU)
2 * 9cm PWM FAN (Internal) |
| Operating Temperature | -20~60℃ (Industrial SSD) | |
| Storage Temperature | -40~80℃ (Industrial SSD) | |
| Relative Humidity | 10 to 90% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CCC, CE/FCC, RoHS | |
-
E7 Pro系列Q170平台 嵌入式工控机/车路协同控制器/边缘计算控制器
