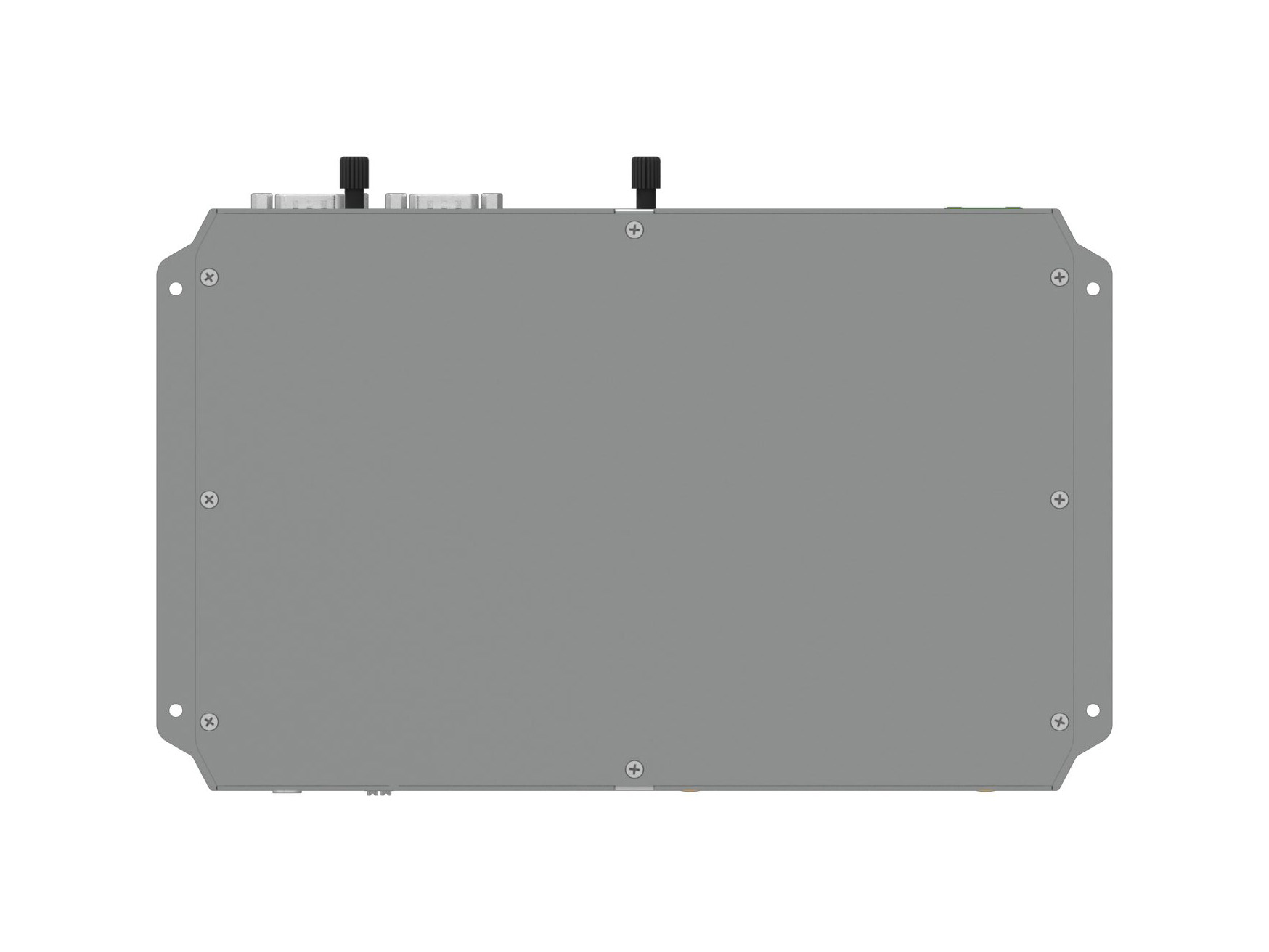

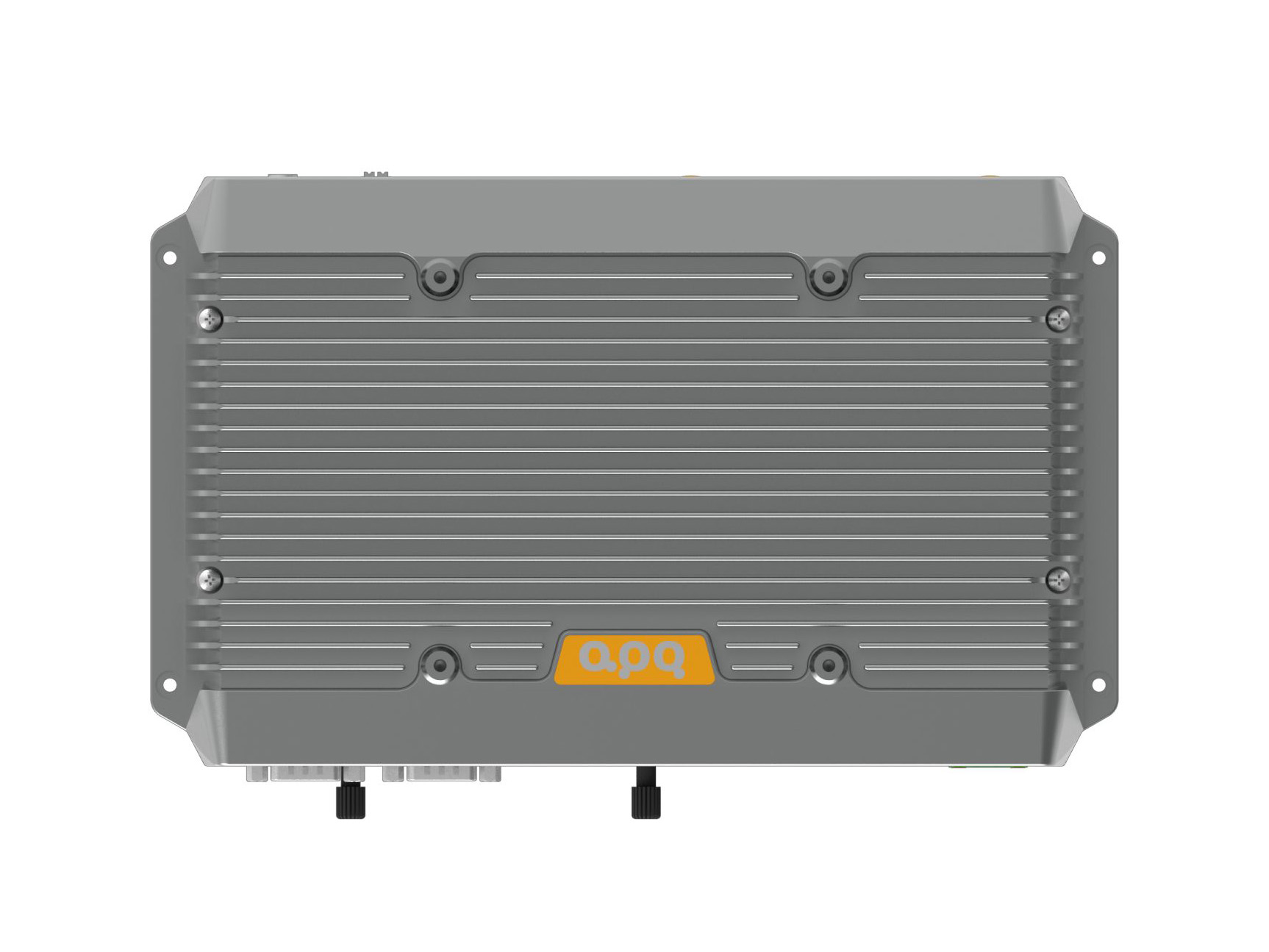

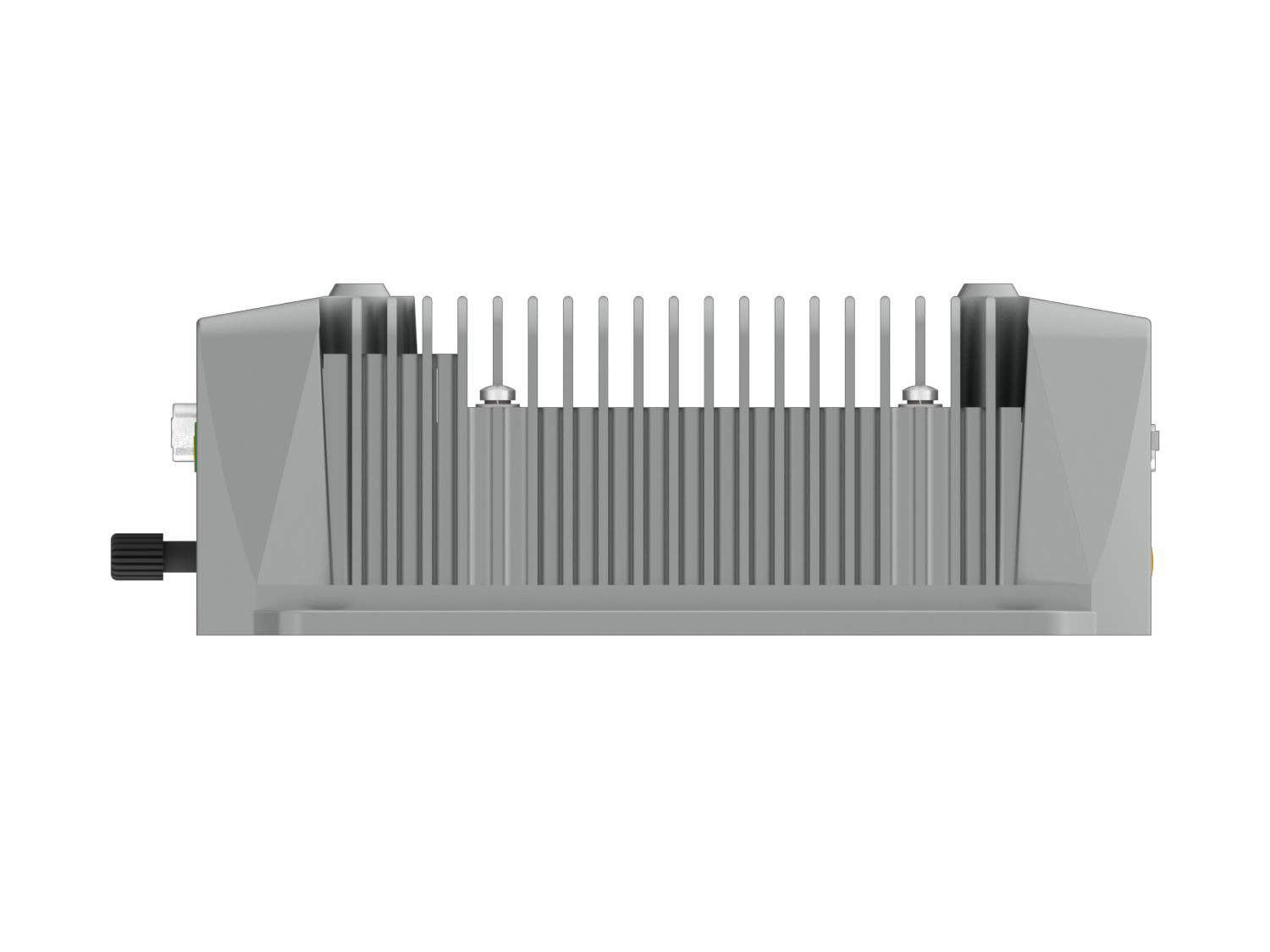

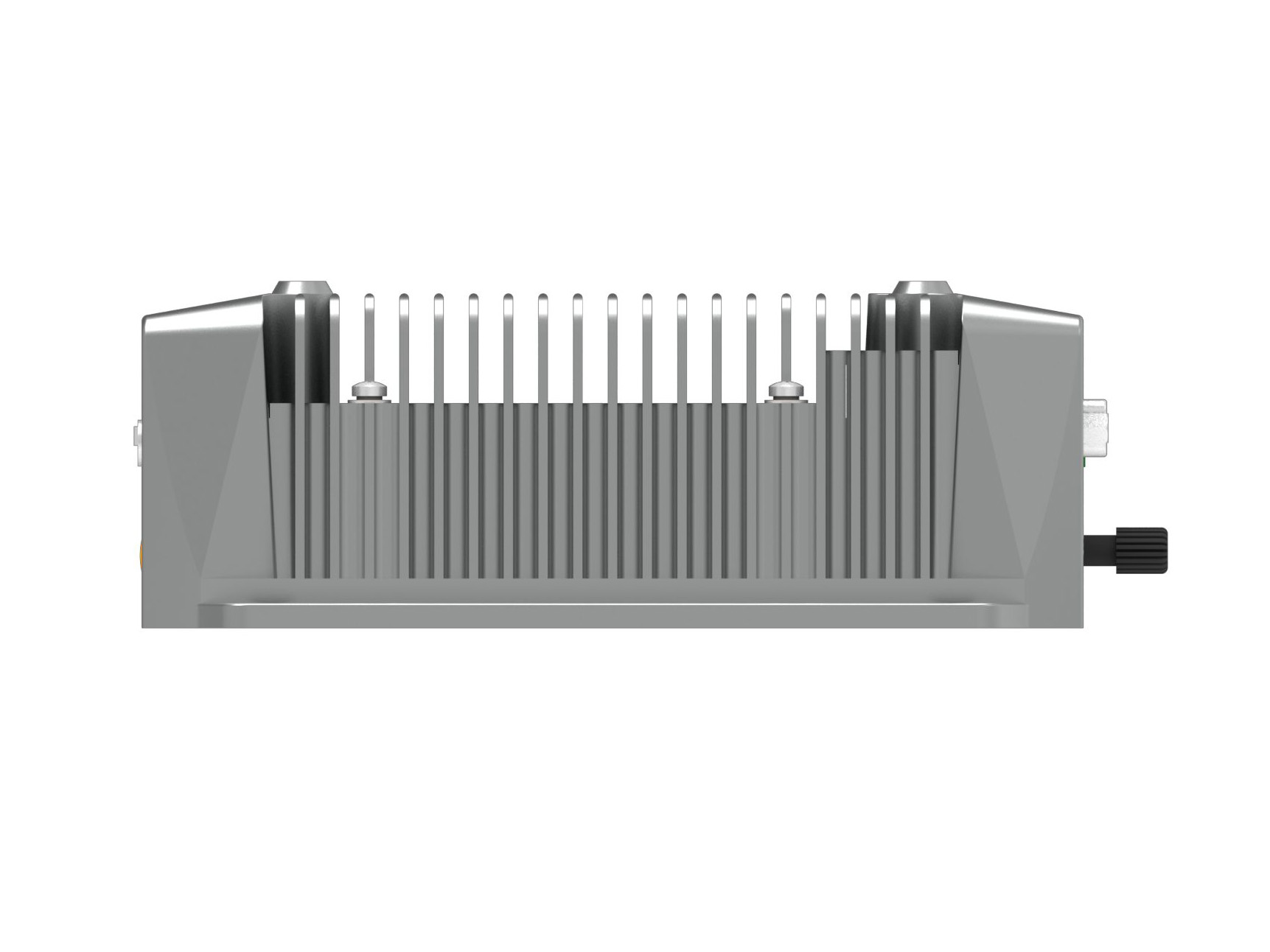

产品描述
阿普奇嵌入式工控机E6系列11th-U平台是一款专为工业自动化和边缘计算应用而设计的紧凑型计算机。采用Intel® 11th-U移动平台CPU，具备高性能和低功耗的特点，确保在各种工业环境下稳定运行。集成双Intel®千兆网卡，提供高速稳定的网络连接，满足数据传输和通信需求。配备2个板载显示接口，支持多种显示输出。双硬盘存储支持使得E6系列能够满足大量数据存储的需求，2.5”硬盘可抽拉设计，进一步提高了硬盘的便捷性和扩展性。支持APQ aDoor Bus模块扩展，可以根据具体应用需求进行定制化配置，满足各种复杂的工业自动化需求。支持WiFi/4G无线扩展，方便实现无线连接和控制，进一步扩展了其应用场景。支持12~28V直流宽压电源，适应不同的电源环境，确保在各种工作条件下都能稳定运行。此外，该系列采用了紧凑的机身设计和无风扇散热系统，使其适合在狭小的空间内使用。
阿普奇E6系列嵌入式工控机被广泛应用在工厂和机器自动化场景，无风扇、有风扇的灵活选型及结构加固设计确保这些系统能够承受恶劣工业环境的要求。
|
Model |
E6 |
|
|
Processor System |
CPU | Intel® 11th Generation Core™ i3/i5/i7 Mobile -U CPU |
| Chipset | SOC | |
| BIOS | AMI EFI BIOS | |
|
Memory |
Socket | 2 * DDR4-3200 MHz SO-DIMM Slot |
| Max Capacity | 64GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel® UHD Graphics/Intel® Iris® Xe Graphics (dependent on CPU type) |
|
Ethernet |
Controller | 1 * Intel® i210-AT (10/100/1000 Mbps, RJ45) 1 * Intel® i219 (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA3.0 Connector |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, Auto Detect, 2280) | |
|
Expansion Slots |
aDoor Bus | 1 * aDoor Bus (16*GPIO + PCIe x2 + 1*LPC) |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe x1+USB 2.0, with 1 * SIM Card) 1 * Mini PCIe Slot (PCIe x1+USB 2.0) |
|
|
Front I/O |
USB | 2 * USB3.2 Gen2x1 (Type-A) 2 * USB3.2 Gen1x1 (Type-A) |
| Ethernet | 2 * RJ45 | |
| Display | 1 * DP: up to 4096x2304 @ 60Hz 1 * HDMI (Type-A): up to 3840x2160 @ 24Hz |
|
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | |
| Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | |
| Button | 1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|
| Power | 1 * Power Input Connector (12~28V) | |
|

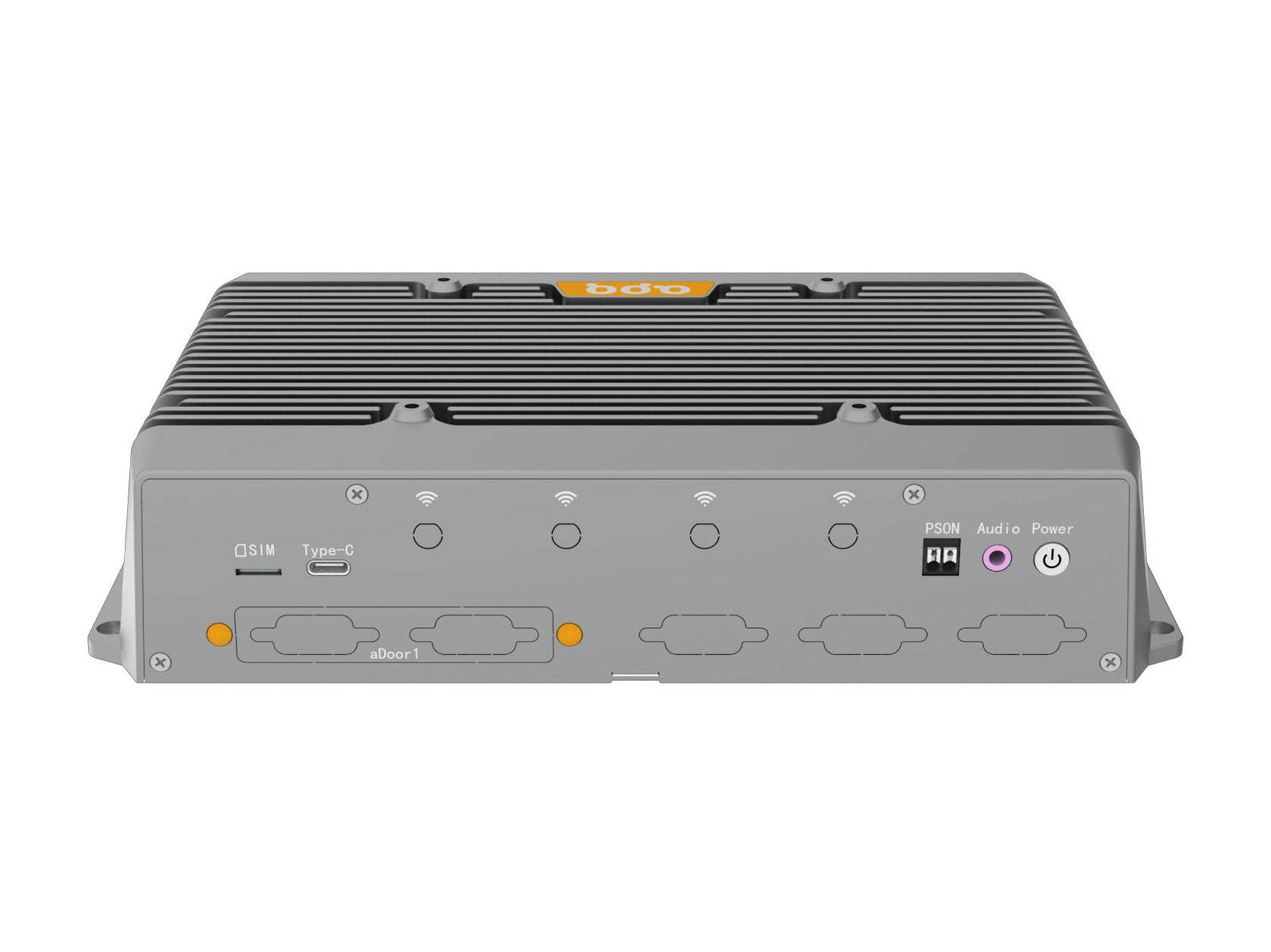

Rear I/O |
SIM | 1 * Nano SIM Card Slot |
| Button | 1 * Power Button + Power LED 1 * PS_ON |
|
| Audio | 1 * 3.5mm Audio Jack (Line-Out + MIC, CTIA) | |
|
Internal I/O |
Front Panel | 1 * Front Panel (wafer, 3x2Pin, PHD2.0) |
| FAN | 1 * CPU FAN (wafer) 1 * SYS FAN (wafer) |
|
| Serial | 1 * COM3/4 (wafer) 1 * COM5/6 (wafer) |
|
| USB | 4 * USB2.0 (wafer) | |
| Display | 1 * LVDS (wafer) | |
| LPC | 1 * LPC (wafer) | |
| Storage | 1 * SATA3.0 7Pin Connector 1 * SATA Power |
|
| Audio | 1 * Speaker (2-W (per channel)/8-Ω Loads, wafer) | |
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, wafer) | |
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28VDC | |
| Connector | 1 * 2Pin Power Input Connector (P=5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum, Box: SGCC |
| Dimensions | 249mm(L) * 152mm(W) * 55.5mm(H) | |
| Weight | Net: 1.8KgTotal: 2.8Kg | |
| Mounting | VESA, Wallmount, Desk mounting | |
|
Environment |
Heat Dissipation System | Passive heat dissipation |
| Operating Temperature | -20~60℃ | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
