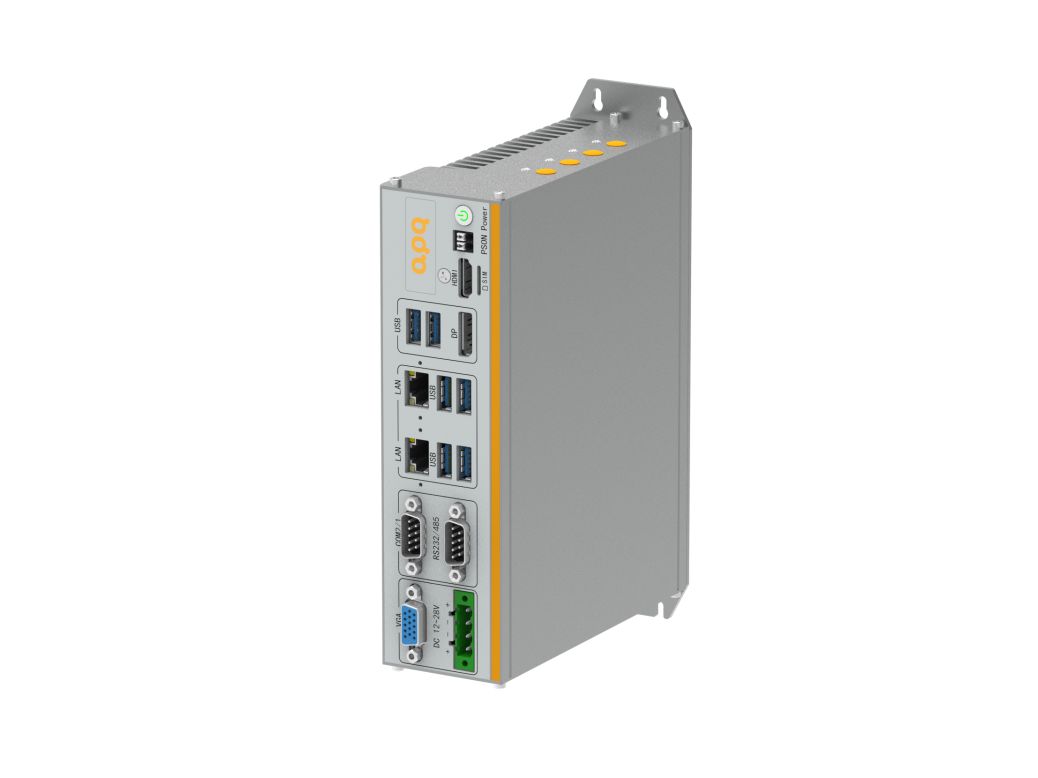

AK6系列11th-U 平台 嵌入式工控机/机器视觉控制器/边缘计算控制器
远程管理
状态监控
远程运维
安全控制
联系我们
扫码即可添加微信，售前客服为您提供咨询服务
|
Model |
AK61xxA2 |
|
|
CPU |
CPU | Intel® 11th Generation Core™ i3/i5/i7 Mobile -U Processor |
| Chipset | SoC | |
|
BIOS |
BIOS | AMI UEFI BIOS |
|
Memory |
Socket | 1 * DDR4 SO-DIMM Slot, up to 3200MHz |
| Max Capacity | 32GB | |
|
Graphics |
Controller | Intel® UHD Graphics/Intel® Iris® Xe Graphics (Dependent on CPU) |
|
Ethernet |
Controller | 1 * Intel® i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel® i219-LM GbE LAN Chip (10/100/1000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M (PCIe x4 Gen 3, NVMe SSD, 2280) |
|
Expansin |
Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with SIM card slot) 1 * Mini PCIe (USB 2.0, PCIe x1 Gen2 is optional) |
| Optional Cabinet | 1E | |
|

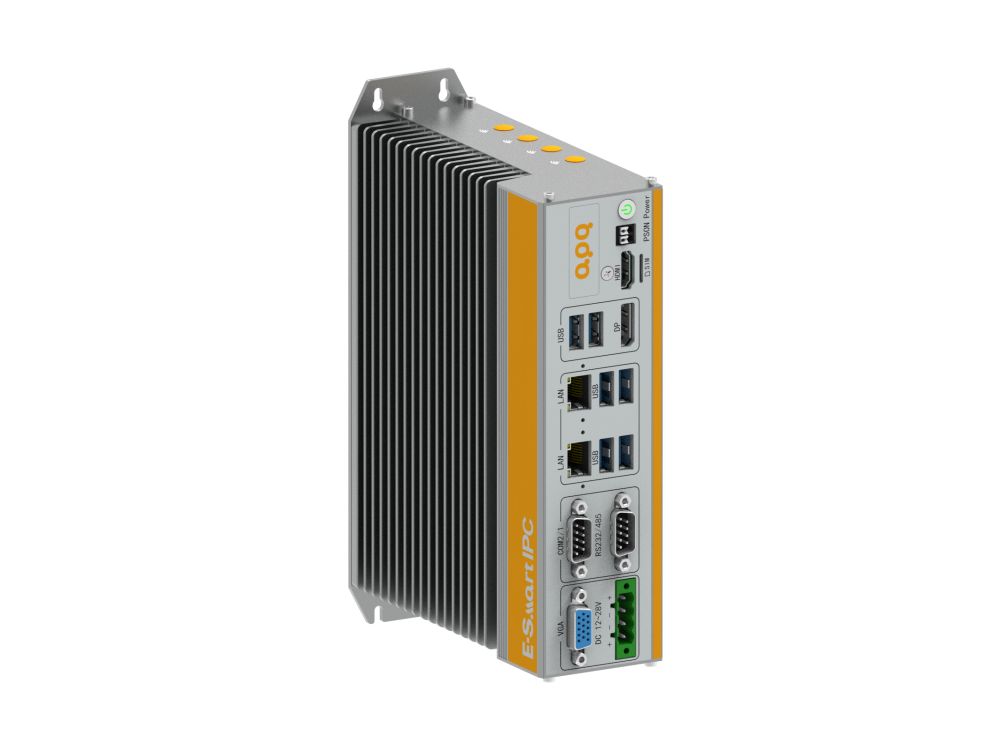

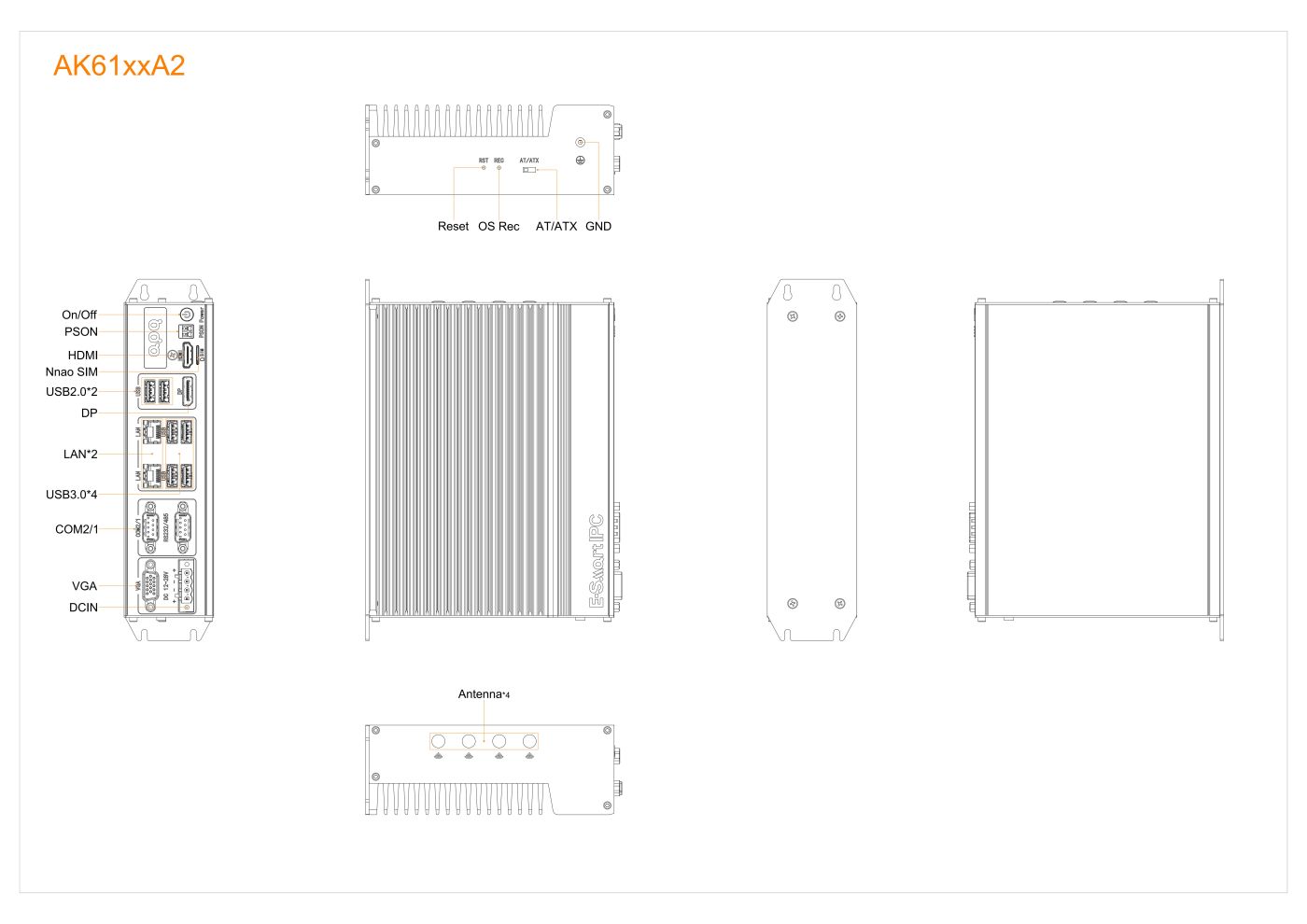

Front I/O |
USB | 4 * USB3.0 (Type-A) 2 * USB2.0 (Type-A) |
| Serial | 2 * RS232/485 (COM1/2, DB9/M, Full lanes, BIOS switch) | |
| Display | 1 * HDMI: max resolution up to 4096*2304 @ 24Hz 1 * DP: max resolution up to 4096*2160 @ 60Hz 1 * VGA: max resolution up to 1920*1200 @ 60Hz |
|
| LAN | 2 * RJ45 | |
| Power | 1 * DC Power Input | |
| SIM | 1 * Nano SIM Card slot (Mini PCIe module provide functional support) | |
| Button | 1 * Power Button + Power LED 1 * PS_ON Connector |
|
|

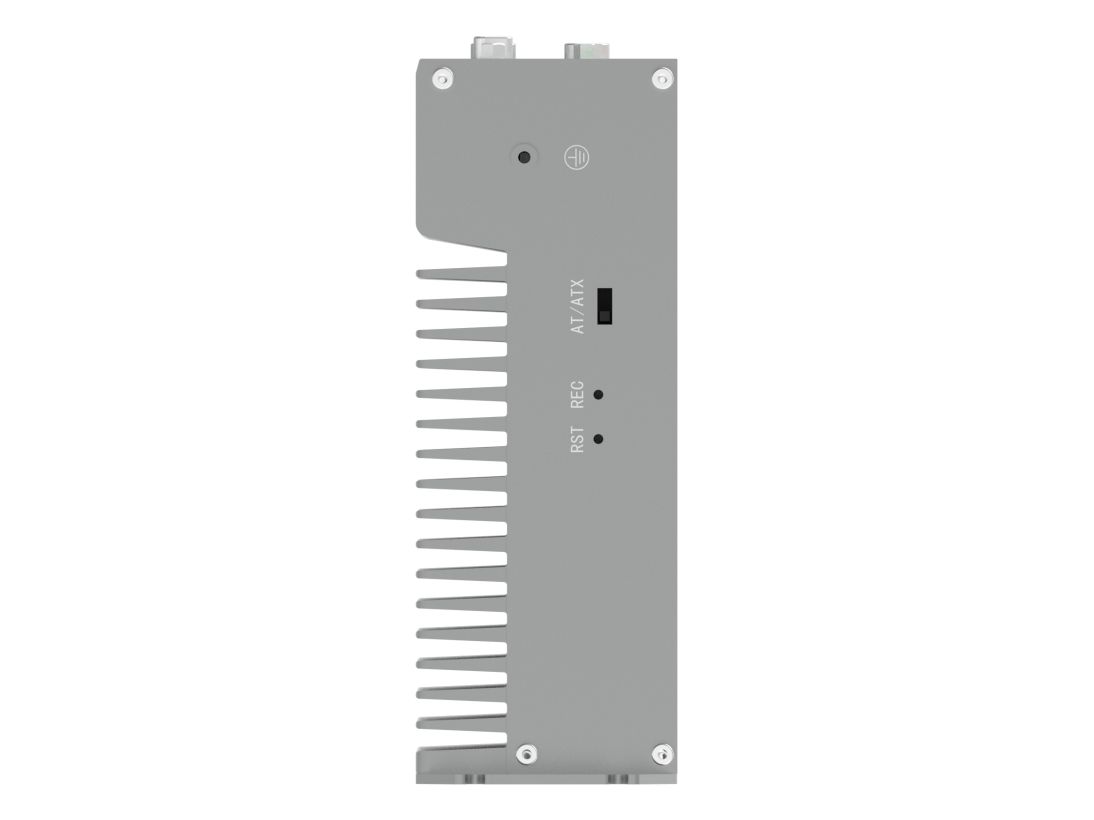

Bottom I/O |
Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) |
| Button | 1 * Reset (Hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
|
|
Power Supply |
Type | DC |
| Power Input Voltage | 12 ~ 28VDC Note：When using the light source, 24V input must be used. |
|
| Connector | 1 * 4Pin Power Input Connector (P= 5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable via Software from 1 to 255 sec | |
|
Mechanical |
Enclosure Material | Radiator/Box: Aluminum alloy, Top/Bottom Cover: SGCC |

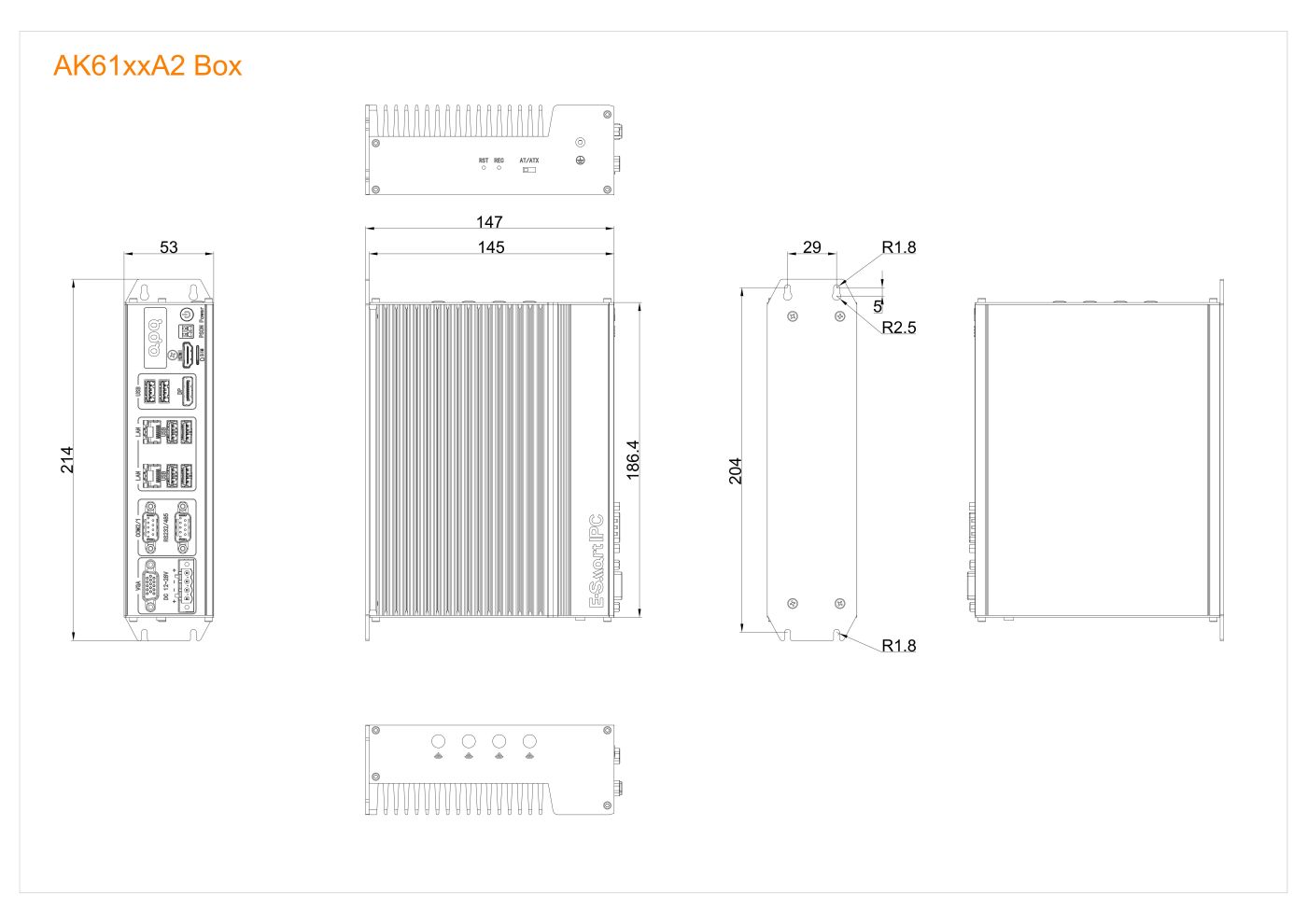

| Dimensions | 53mm(L) * 145mm(W) * 186.4mm(H) | |

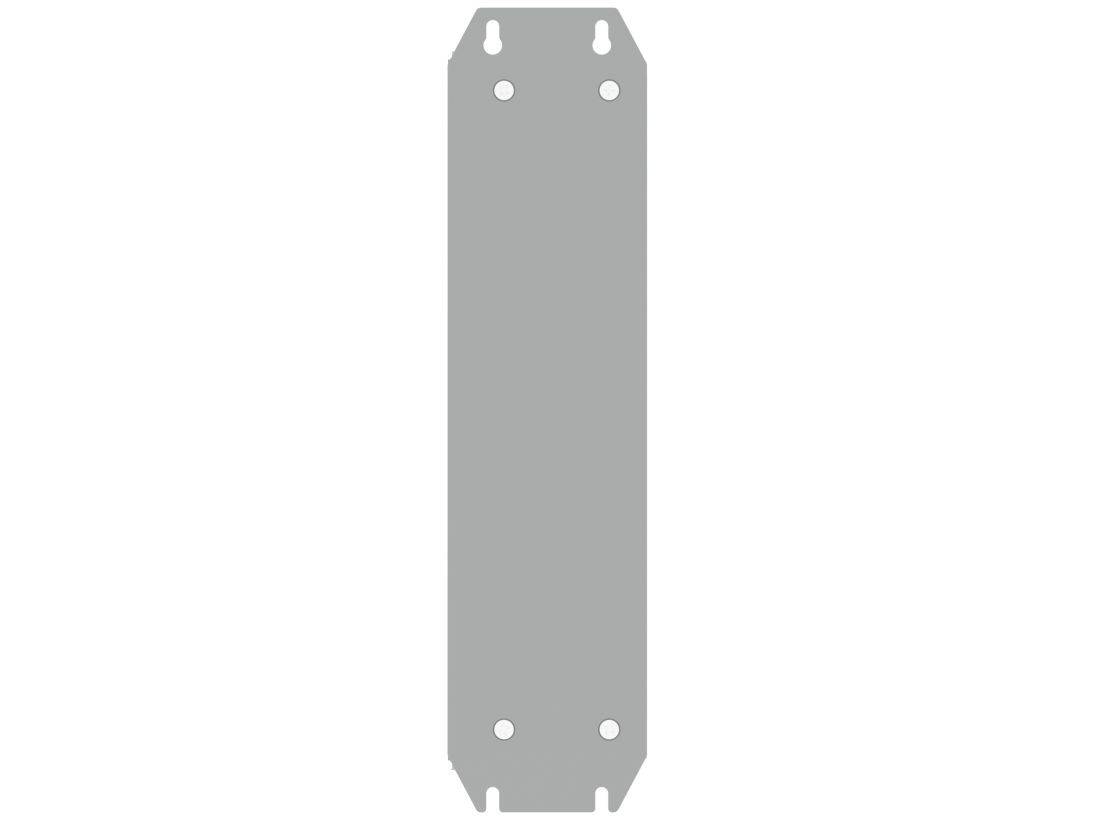

| Mounting | Wall mounted, DIN, Desktop | |
|
Environment |
Heat Dissipation System | Passive Heat Dissipation |
| Operating Temperature | -20~60℃ (Industrial SSD) | |
| Storage Temperature | -40~80℃ (Industrial SSD) | |
| Relative Humidity | 5 to 90% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
-
